Quick Details
-
Model Number:
-
SCW18401
-
Dimension:
-
18 inch
-
Storage:
-
NO
-
SNR:
-
NO
-
Output Power:
-
900W
-
Format:
-
no
-
Size:
-
18 inch
-
Power:
-
900W
-
Frequency Range:
-
36-2000HZ
-
Impedance:
-
8ohm
-
Magnet:
-
150oz
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DASN
-
Model Number:
-
SCW18401
-
Dimension:
-
18 inch
-
Storage:
-
NO
-
SNR:
-
NO
-
Output Power:
-
900W
-
Format:
-
no
-
Size:
-
18 inch
-
Power:
-
900W
-
Frequency Range:
-
36-2000HZ
-
Impedance:
-
8ohm
-
Magnet:
-
150oz
Product Description
|
Model Number
|
SCW18401
|
|
|
Brand Name
|
DASN
|
|
|
MECHANICAL SPECIFICATIONS
|
|
|
|
Overall diameter
|
460mm
|
|
|
Bolt circle diameter
|
445mm
|
|
|
Baffle cutout diameter
|
426mm
|
|
|
Depth
|
240mm
|
|
|
Flange and Gasket
|
18mm
|
|
|
Net weight
|
14.4kg
|
|
|
Shipping box (single carton box)
|
475x470x270mm
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Nominal diameter
|
18 inch
|
|
|
Nominal impedance
|
8 Ω
|
|
|
DC resistance
|
5.4 Ω
|
|
|
Nominal power handling
|
900W
|
|
|
Continuous power handling
|
1800W
|
|
|
Sensitivity (1W/1m)
|
96±2dB
|
|
|
Frequency range (-10dB max)
|
36-2000 Hz
|
|
|
Voice coil diameter
|
4"/100mm
|
|
|
Voice coil materia
|
Inside/Outside Cu
|
|
|
Former material
|
TIL
|
|
|
Winding depth
|
32mm
|
|
|
T yoke
|
28mm
|
|
|
Plate
|
15mm
|
|
|
Magnet
|
150 OZ
|
|
|
Basket
|
Cast aluminium
|
|
|

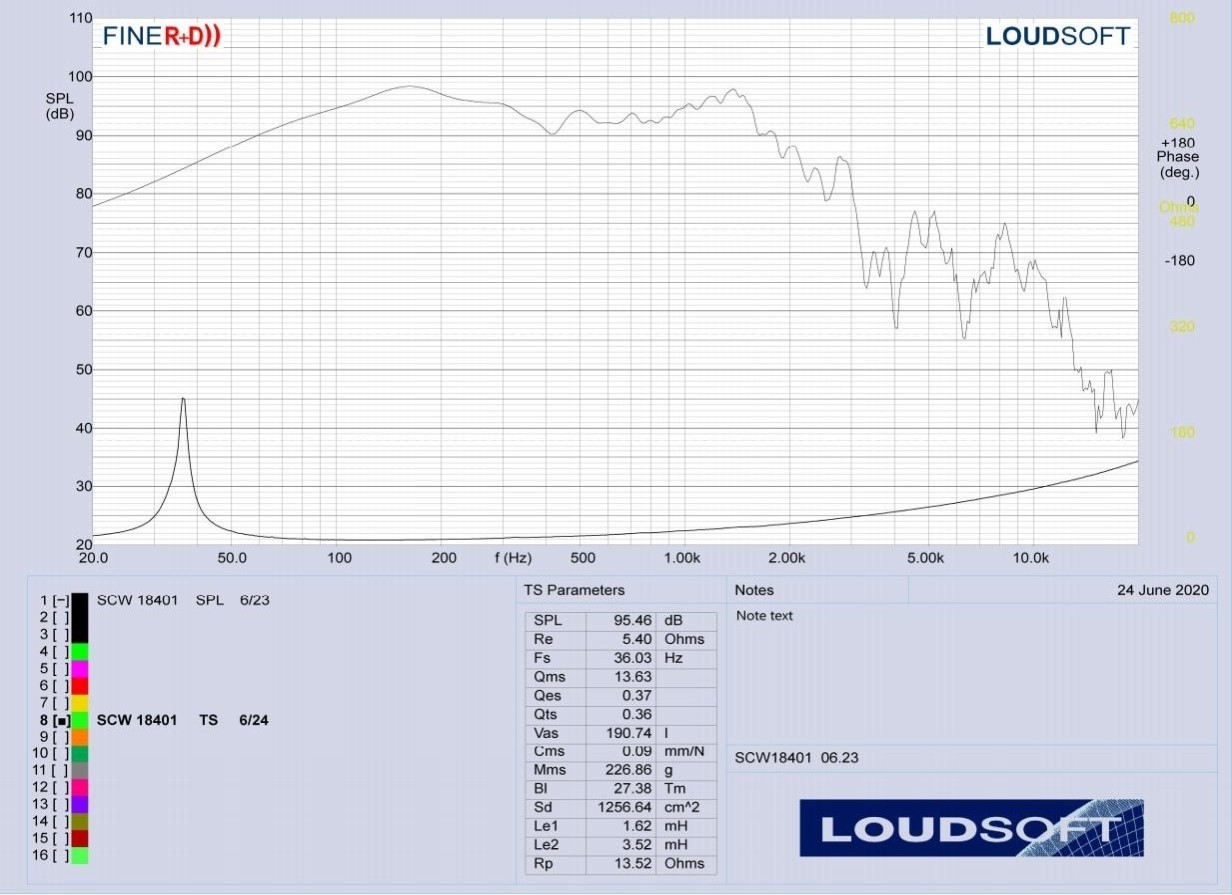

THIELE & SMALL PARAMETERS
|
|
|
|
Fo
|
36Hz
|
|
|
Revc
|
5.4Ω
|
|
|
Sd
|
1256.64cm ^2
|
|
|
Vas
|
190.74L
|
|
|
Cms
|
0.09mm/N
|
|
|
Mms
|
226.86g
|
|
|
Bl
|
27.38Tm
|
|
|
Qms
|
13.63
|
|
|
Qes
|
0.37
|
|
|
Qts
|
0.36
|
|
|
SPL
|
95.46dB
|
|
|
Le1
|
1.62mH
|
|
|
Le2
|
3.52mH
|
|
|
Rp
|
13.52ohms
|
|
Packing & Delivery
Packaging Details：Conventional Packing(1 Unit/Poly Bag,1 Poly Bag/Master Carton Box. With Foam Padding For Protection).
