Quick Details
-
Wavelength:
-
520nm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANWON
-
Model Number:
-
HWR206DG
-
color:
-
customerized
Quick Details
-
Warranty:
-
1 year
-
Size:
-
390mm*285mm*215mm
-
Precision:
-
±1mm/10m
-
Wavelength:
-
520nm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANWON
-
Model Number:
-
HWR206DG
-
color:
-
customerized

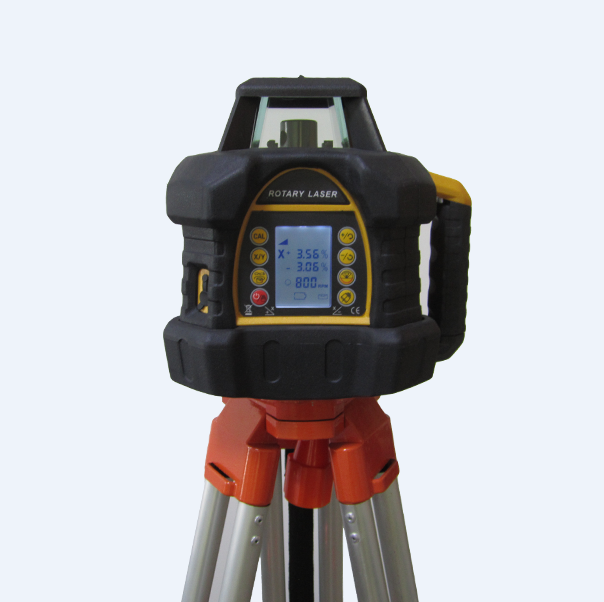

Professional horizontal and vertical function HWR206DG Multi Lines 3D Green Beam Rotary Laser
Product details
| color | customerized |
| Self leveling range | ±5° |
| Working range(radius) | 500m with detector(Diameter) |
| Power supply | DC 4. 8-6V (4*sub-C NI-MH battery) |
| Continuous working hrs | 20hours |
| Working temperature | -10℃-45℃ |
| Waterproof and dustproof | IP 54 |
| Dimension | 390(L) X 285(W)X 215(H)mm |
Level system: Electronic sensor fast leveling.
Accuracy: 20 arc seconds(+/-1mm/10m)
Self leveling range: ±5°
Operation rang: 500m with detector(Diameter)
Five head speeds: 0; 60; 120; 300; 600 R.P.M
Four scan widths:10°; 45°; 90°; 180°
Remote control:Available working distance:20 m
Operation temperature: -10℃ ~ +45℃
Power supply: DC 4. 8-6V (4*sub-C NI-MH battery)
Continuance working time: Approx. 20hr.
Waterproof and dustproof: IP 55
Dimension: 390(L) X 285(W)X 215(H)mm
Weight: 5kg
