Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5631*1870*2736mm
-
Machine Weight:
-
5300 kg
-
Bucket capacity:
-
0.67 M3, 0.67 M3
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Farm Garden Front End Bucket Mini Telescopic Wheel Loader
-
Rated Load:
-
2.5T
-
Rated Power:
-
53Kw
-
Max. dumping height:
-
3848mm
-
Max. lifting height:
-
5413mm
-
Max. grade ability(°):
-
31°
-
Max. breakout force:
-
25KN
-
Overall Dimension (LxWxH):
-
5631*1870*2736mm
-
Engine:
-
imported engine
Quick Details
-
Engine Brand:
-
Xichai 4DX21-72
-
Power:
-
53KW
-
Brand Name:
-
Everun
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5631*1870*2736mm
-
Machine Weight:
-
5300 kg
-
Bucket capacity:
-
0.67 M3, 0.67 M3
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Farm Garden Front End Bucket Mini Telescopic Wheel Loader
-
Rated Load:
-
2.5T
-
Rated Power:
-
53Kw
-
Max. dumping height:
-
3848mm
-
Max. lifting height:
-
5413mm
-
Max. grade ability(°):
-
31°
-
Max. breakout force:
-
25KN
-
Overall Dimension (LxWxH):
-
5631*1870*2736mm
-
Engine:
-
imported engine

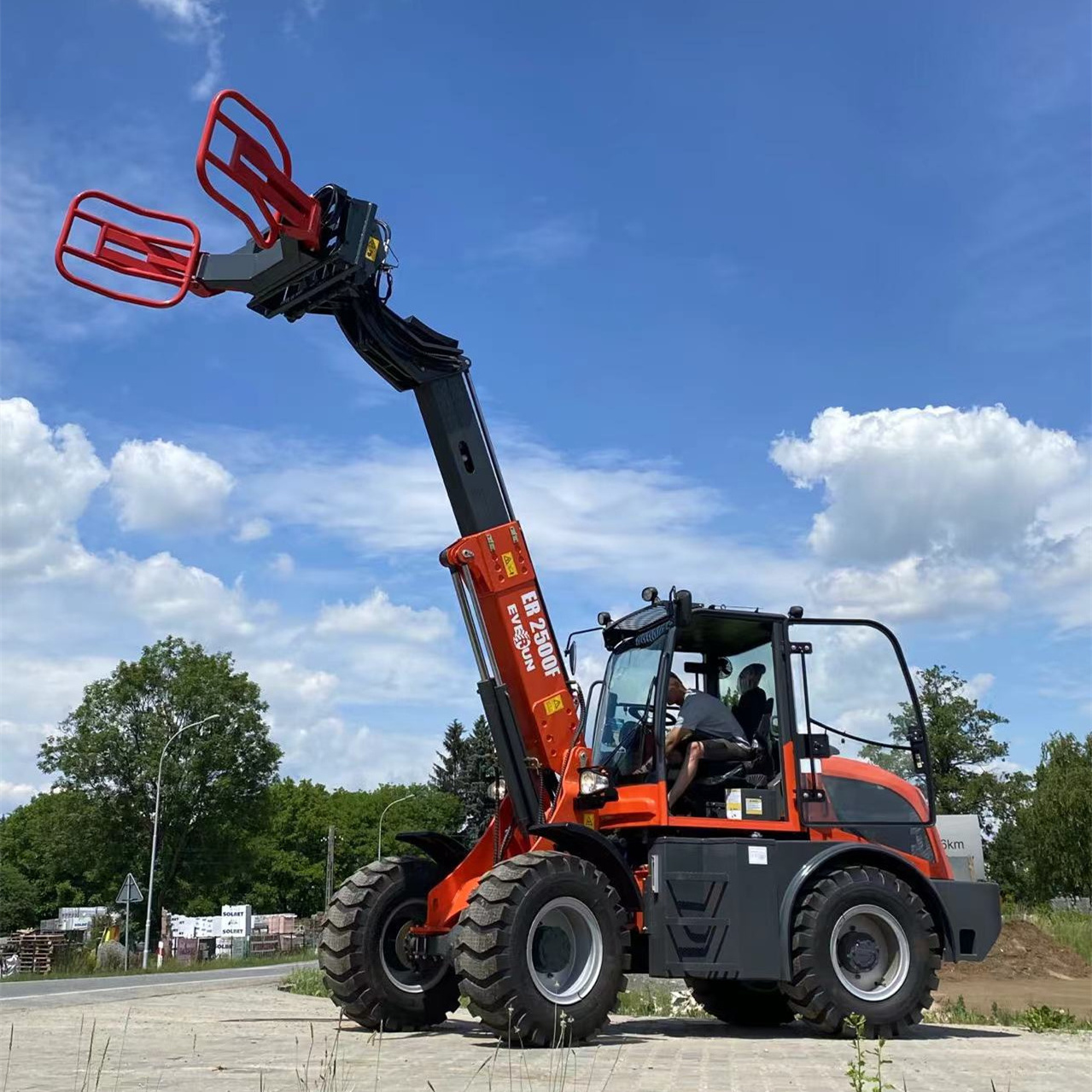

China Everun ER2500F 2500kg Factory Direct Bucket Snow Shovel Small Telescopic Wheel Loader
Product Description
Specification
|
Model
|
|
ER2500F
|
|
|
Engine Details
|
Engine model
|
XICHAI 4DX21-72
|
|
|
|
Engine power
|
53KW
|
|
|
|
Rated Speed
|
2200 r/p.min
|
|
|
|
Engine cooling way
|
Water cooling
|
|
|
|
Fuel Consumption ratio
|
230g/kw.h (standard working condition)
|
|
|
Bucket
|
Bucket Capacity
|
0.67m3
|
|
|
|
Bucket type
|
Heavy-duty bolt on teeth
|
|
|
Overall Dimensions
|
Overall Length
|
5631mm
|
|
|
|
Overall Height:
|
2736mm
|
|
|
|
Overall Width
|
1870mm
|
|
|
Tyre
|
Model
|
23.5/70-16
|
|
|
|
Width
|
390mm
|
|
|
|
Diameter
|
1065mm
|
|
|
Brake System
|
Service Brake
|
Four Wheel disk brake
|
|
|
|
Parking Brake
|
Hand operated
|
|
|
|
Braking Type
|
Air braking
|
|
|
|
Axle
|
With hub reducer
|
|
|
Max. lifting Height
|
|
5413mm
|
|
|
Rated Load
|
|
2500kg including attachment
|
|
|
Transmission System
|
|
Hydraulic converter + drive shaft + axles
|
|
|
Wheelbase
|
|
2430mm
|
|
|
Min Turning Radius
|
|
5640mm
|
|
|
Weight
|
|
5300kg
|
|
|
System Pressure
|
|
20Mpa
|
|
