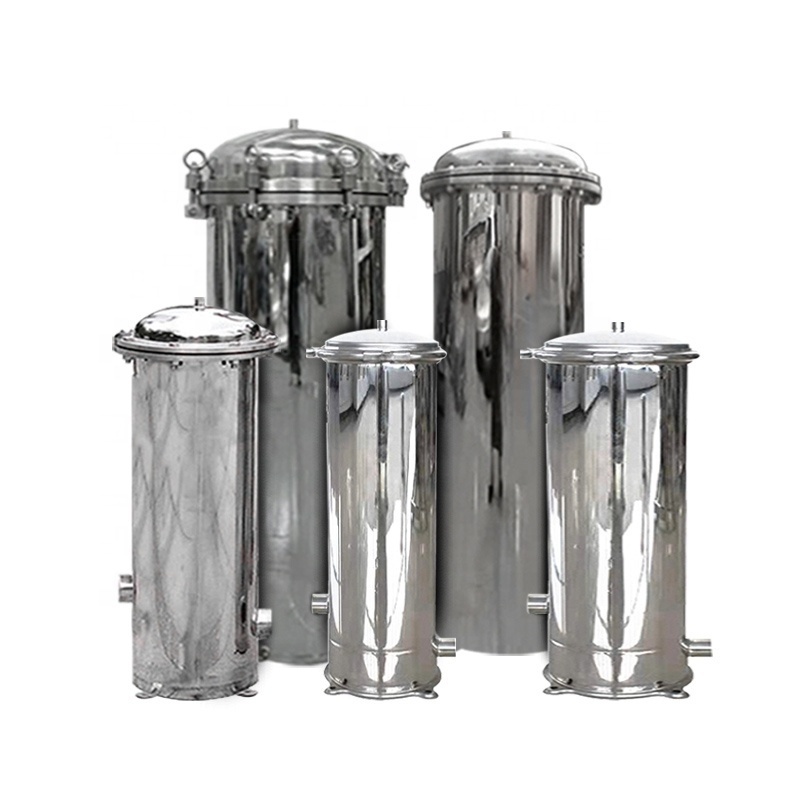

Stainless steel security filter (also known as precision filter), the shell of the cylinder is generally made of stainless
steel,and the interior uses PP melt blown, wire-fired, folded, titanium filter, activated carbon filter and other tubular filter
elements as filter elements. Filter media and design process choose different filter elements to meet the requirements of effluent
water quality. The body can also choose a quick-installation type for convenient and quick replacement of the filter element and
cleaning. This equipment is used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries. It is a kind of equipment for filtering, clarifying, and purifying liquids.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
10kg
-
Size:
-
0.5cbm
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Filter
-
Application:
-
Filtration
-
Function:
-
Water Purification Plant
-
Filter Media:
-
Cartridge / Bag
-
Flow rate:
-
1000L/H
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MK
-
Material:
-
Carton / Wooden, Stainless Steel
-
Weight:
-
10kg
-
Size:
-
0.5cbm
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Filter
-
Application:
-
Filtration
-
Function:
-
Water Purification Plant
-
Filter Media:
-
Cartridge / Bag
-
Flow rate:
-
1000L/H
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Product Description
Cartridge filter system
Specification
|
Model
|
Style
|
Size
|
In/out let
|
|
STK-CF-10"3
|
Clamp type
|
D159*250
|
1 inch
|
|
STK-CF-20"3
|
Clamp type
|
D159*500
|
1 inch
|
|
STK-CF-30"3
|
Clamp type
|
D159*750
|
1 inch
|
|
STK-CF-40"3
|
Clamp type
|
D159*1000
|
1.5 inch
|
|
STK-CF-10"5
|
Clamp type
|
D195*250
|
1.5 inch
|
|
STK-CF-20"5
|
Clamp type
|
D195*500
|
1.5 inch
|
|
STK-CF-30"5
|
Clamp type
|
D195*750
|
1.5 inch
|
|
STK-CF-40"5
|
Clamp type
|
D195*1000
|
1.5 inch
|
|
STK-CF-10"7
|
Clamp type
|
D230*250
|
2 inch
|
|
STK-CF-20"7
|
Clamp type
|
D230*500
|
2 inch
|
|
STK-CF-30"7
|
Clamp type
|
D230*750
|
2 inch
|
|
STK-CF-40"7
|
Clamp type
|
D230*1000
|
2 inch
|
|
STK-CF-20"10
|
Flange type/Quick opening with stand
|
D300*500
|
2 inch
|
|
STK-CF-30"10
|
Flange type/Quick opening with stand
|
D300*750
|
2 inch
|
|
STK-CF-40"10
|
Flange type/Quick opening with stand
|
D300*1000
|
2 inch
|
|
STK-CF-20"12
|
Flange type/Quick opening with stand
|
D325*500
|
2 inch
|
|
STK-CF-30"12
|
Flange type/Quick opening with stand
|
D325*750
|
2 inch
|
|
STK-CF-40"12
|
Flange type/Quick opening with stand
|
D325*1000
|
2 inch
|
|
STK-CF-20"15
|
Flange type/Quick opening with stand
|
D350*500
|
2 inch
|
|
STK-CF-30"15
|
Flange type/Quick opening with stand
|
D350*750
|
2 inch
|
|
STK-CF-40"15
|
Flange type/Quick opening with stand
|
D350*1000
|
2 inch
|
|
STK-CF-30"20
|
Flange type/Quick opening with stand
|
D400*750
|
2.5 inch
|
|
STK-CF-40"20
|
Flange type/Quick opening with stand
|
D400*1000
|
2.5 inch
|
|
STK-CF-40"25
|
Flange type/Quick opening with stand
|
D450*1000
|
2.5 inch
|
|
STK-CF-40"35
|
Flange type/Quick opening with stand
|
D500*1000
|
3 inch
|
|
STK-CF-40"45
|
Flange type/Quick opening with stand
|
D600*1000
|
3 inch
|
|
STK-CF-40"55
|
Flange type/Quick opening with stand
|
D700*1000
|
4 inch
|
Typical applications:
The Cartridge filter can protect the water treatment system. The security filter can not only filter the raw water, but also can automatically clean and discharge sewage, and can provide uninterrupted water supply while cleaning. In addition, the security filter truly overcomes the inconveniences of traditional filters such as small dirt holding capacity, easy to be blocked by dirt during filtration, and manual disassembly and cleaning of the filtered part, and easily achieves low cost to complete extraordinary projects. It is a high-efficiency filter element for removing impurities in industrial water treatment, and is widely used in water treatment filters in the power plant industry.
Different stainless steel multi-cartridges filter housing are customized, as long as you offer us picture and drawing.
Products are mainly used in food and beverage industry; pharmaceutical industry; water treatment industry; automobile industry; textile industry; paper industry; electronics industry; fine chemicals; petrochemicals; coatings and paints; metal processing; iron and steel; binders, Oil industry; resin, polymer, ink, dispersion and other related industries.
Customer satisfaction is our honor" as our eternal quality policy; care for the environment and return to the society. "Integrity, responsibility, innovation, teamwork" as the continuous pursuit and goal, we are willing to work with friends to create a better tomorrow !
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
