1. forced extruding
2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACEMIEN
-
Voltage:
-
According to Customer
-
Dimension(L*W*H):
-
25m*3m*3m
-
Power (kW):
-
250
-
Weight:
-
2500 KG
-
Name:
-
Plastic roof tile making machine
-
Raw material:
-
PVC Powder
-
Usage:
-
Roofing
-
Color:
-
Customer Choice
-
Inverter:
-
ABB Frequency Controller
-
Motor:
-
Germany SIEMENS Motor
-
Temperature control:
-
Omron Brand
-
Contactor:
-
France SCHNEIDER Contactors
-
Power(W):
-
200KW
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
38:1
-
Screw diameter (mm):
-
80 mm
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACEMIEN
-
Voltage:
-
According to Customer
-
Dimension(L*W*H):
-
25m*3m*3m
-
Power (kW):
-
250
-
Weight:
-
2500 KG
-
Name:
-
Plastic roof tile making machine
-
Raw material:
-
PVC Powder
-
Usage:
-
Roofing
-
Color:
-
Customer Choice
-
Inverter:
-
ABB Frequency Controller
-
Motor:
-
Germany SIEMENS Motor
-
Temperature control:
-
Omron Brand
-
Contactor:
-
France SCHNEIDER Contactors
-
Power(W):
-
200KW
Products Description
Extrusion Part
Mould Part
Name: T-DIA or Ectrusion mould
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design
Embossing Roller
1. Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth 0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed

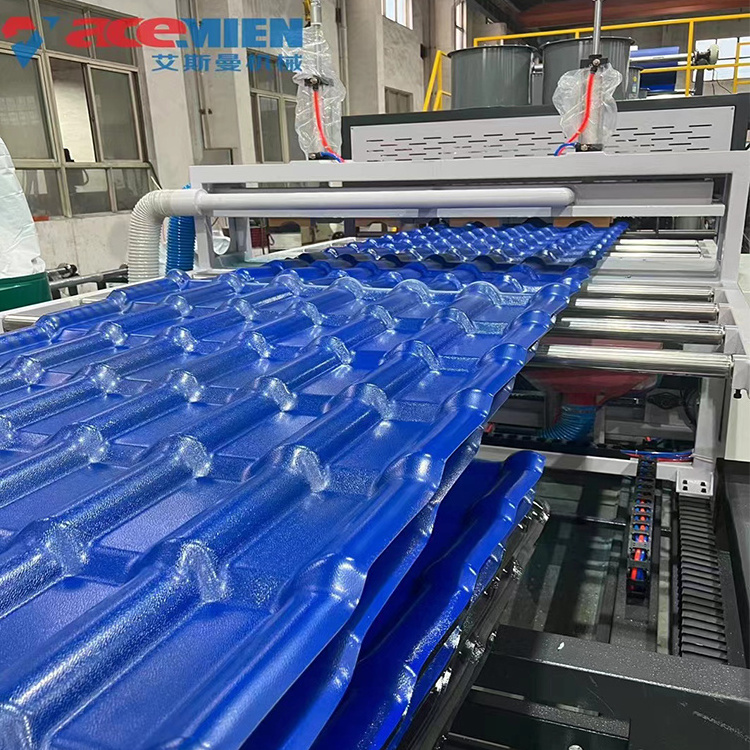

Forming Machine
Name:
Corrugated Roof Tile Forming Machine
1.Haul off roller material: Neoprene CR
2.Rise and drop method of mould: pneumatic
3.Fine adjustment method: manual
Cutter
Technical Parameters:
1.Special positioning cevice to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.The horizontal movement motor is 0.37kw
4.PLC HMI operation
Crusher
Technical Parameters:
1.The motor power is 11kw,15kw,22kw,30kw
2.Broken the amount of 200-600kg/h
3.Broken diameter 510*290
The main purpose:
Used for on-line production to produce edge scraps for recycling
High Speed Mixer Unit
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
High Speed Mixing Unite
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
|
No.
|
Machine name
|
Qty
|
|
1
|
Screw conveyor(with push device)
|
1pc
|
|
2
|
conical two screw extruder
|
1pc
|
|
3
|
Vacuum feeder for pellet
|
1pc
|
|
4
|
Drying hopper
|
1pc
|
|
5
|
single screw extruder
|
1pc
|
|
6
|
Extrusion mould
|
1pc
|
|
7
|
Distributor
|
1pc
|
|
8
|
Embossing roller
|
1pc
|
|
9
|
Forming machine with trimming device
|
1pc
|
|
10
|
Cutter
|
1pc
|
|
11
|
Stacket
|
1pc
|
|
12
|
Forming for ridger
|
1pc
|
|
13
|
Mould of top rodge,three way ridge,hip rodge,end of ridge
|
4pcs
|
|
14
|
Oven
|
1pc
|
|
15
|
Mixer unit
|
1pc
|
|
16
|
Screw conveyor for mixer unit
|
1pc
|
Product Application
Product Application
Machine name:
Plastic PVC Composite Roof Tile Making machine
Finished product :
Plastic roofing , PVC composite roofing , Plastic corrugated roofing
Product features:
Using life
more than 20years
Good
sound and heat insulation
Fire resistance, anti-corrosion
Using
recycled PVC
,environment-friendly
Excellent anti-load performance
Easy to install,
packing and transport
Plants, steel factories, warehouse, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plant, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
