Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Lulanjiu
-
Model Number:
-
LK80BS0410-30+LKBS48501
-
Torque:
-
3.2N.m
-
Product Name:
-
BLDC 750W low voltage brushless dc servo motor 48v and driver
-
Rated Power:
-
1000W
-
Max Speed:
-
3000RPM
-
Rated current:
-
25A
-
Rated Voltage:
-
48V
-
Feedback Component:
-
ncremental Encoder
-
Noise(dB):
-
None Special Noise
-
Mouting:
-
Flange Method
-
Ambient temperature:
-
0 ~ +40℃
-
Excitation:
-
Permanent Magnet
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
20.4A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
China
-
Brand Name:
-
Lulanjiu
-
Model Number:
-
LK80BS0410-30+LKBS48501
-
Torque:
-
3.2N.m
-
Product Name:
-
BLDC 750W low voltage brushless dc servo motor 48v and driver
-
Rated Power:
-
1000W
-
Max Speed:
-
3000RPM
-
Rated current:
-
25A
-
Rated Voltage:
-
48V
-
Feedback Component:
-
ncremental Encoder
-
Noise(dB):
-
None Special Noise
-
Mouting:
-
Flange Method
-
Ambient temperature:
-
0 ~ +40℃
-
Excitation:
-
Permanent Magnet

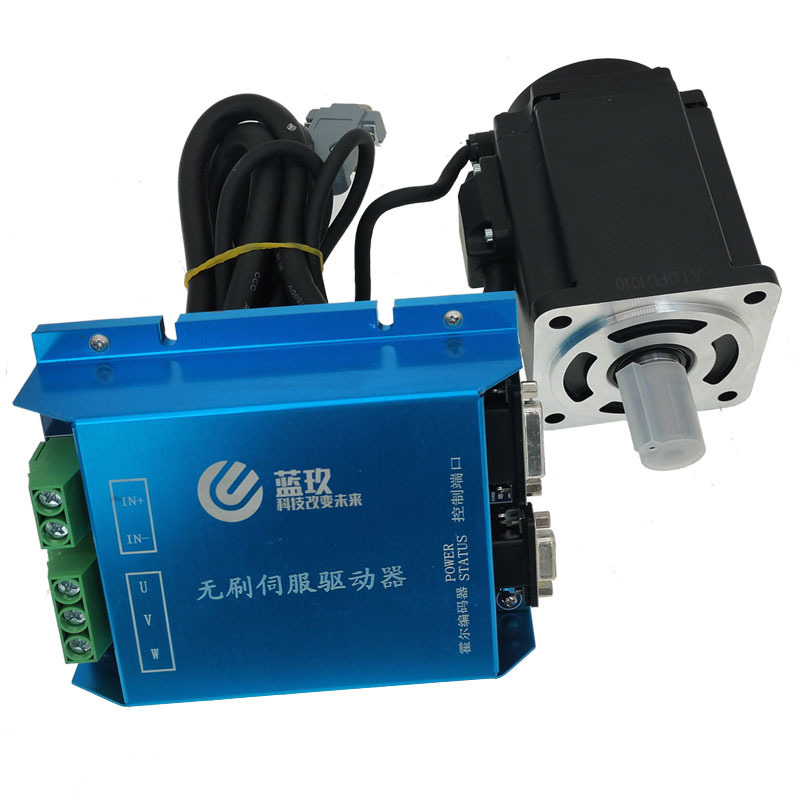

High torque 4.7 inch 48V 6.4N.m brushless electric motor with encoder bldc agv robot servo motor and driver
LK80BS0410-30+LKBS48501
Products Description
What is a Brushless DC motor (BLDC)?
Brushless DC motor (known as BLDC) is a permanent magnet synchronous electric motor which is driven by direct current (DC) electricity and it accomplishes electronically controlled commutation system (commutation is the process of producing rotational torque in the motor by changing phase currents through it at appropriate times) instead of a mechanically commutation system. BLDC motors are also referred as trapezoidal permanent magnet motors.
It has no mechanical commutator and associated problems
High efficiency due to the use of permanent magnet rotor
High speed of operation even in loaded and unloaded conditions due to the absence of brushes that limits the speed
Smaller motor geometry and lighter in weight than both brushed type DC and induction AC motors
Long life as no inspection and maintenance is required for commutator system
Higher dynamic response due to low inertia and carrying windings in the stator
Less electromagnetic interference
Quite operation (or low noise) due to absence of brushes
Product Paramenters
LKBS48501 is an intelligent brushless DC controller. It adopts 32-bit high-performance MCU,Advanced motion control algorithm is suitable to the outside of the quadrature encoder input to complete the open loop and closed loop speed, under the closed loop torque of motor sport.Controller with multiple analog input port, the pulse input port and digital I/O port, can through the special software to redefine its functions.Universal RS232 serial port communication,
CAN bus, CAN be widely used in automation
CAN bus, CAN be widely used in automation
Product Features:
Wide-range voltage input, 10-55V.
Intelligent PID control loop.
Working mode: Speed open-loop, close-loop control, torque close-loop control, position
close-loop control.
External potentiometer, 0-5V analog quantity or pulse command control mode, RC (pulse
width signal outputted by the receiver of aeromodelling remote control) control mode.
Safety forward & reverse control, four-quadrant operation, support regeneration.
Enable control function.
Maximum current control.
4-way input port; the function can be defined as analog input, pulse input or digital input
functions.
2-way digital (MOS tube open-drain) output, Generally as 24V 1A output
(maximum load capacity of 40V 1A), can be used to loosen the brake or
other attachments.
Abnormalities like overcurrent, overheating, overvoltage and short circuit will start the
protection function.
LED status indicator.
CAN bus communication, see the detailed communication protocol when using it
Intelligent PID control loop.
Working mode: Speed open-loop, close-loop control, torque close-loop control, position
close-loop control.
External potentiometer, 0-5V analog quantity or pulse command control mode, RC (pulse
width signal outputted by the receiver of aeromodelling remote control) control mode.
Safety forward & reverse control, four-quadrant operation, support regeneration.
Enable control function.
Maximum current control.
4-way input port; the function can be defined as analog input, pulse input or digital input
functions.
2-way digital (MOS tube open-drain) output, Generally as 24V 1A output
(maximum load capacity of 40V 1A), can be used to loosen the brake or
other attachments.
Abnormalities like overcurrent, overheating, overvoltage and short circuit will start the
protection function.
LED status indicator.
CAN bus communication, see the detailed communication protocol when using it
RS232 communication, see the detailed communication protocol when using it.
