Quick Details
-
Model Number:
-
TMAX-PP/PE
-
Shape:
-
Milky white porous films
-
Size:
-
Customized
Quick Details
-
Application:
-
Battery
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TMAX
-
Model Number:
-
TMAX-PP/PE
-
Shape:
-
Milky white porous films
-
Size:
-
Customized
Ready to ship note
DEFAULT SIZE:
Thickness:16,20,25μm optional
Width:85mm
Length:60m
(customized)
If you have any special needs about the length,width,thickness ,please contact the sales manager for customized service.
Features
Universal type battery separator paper PP/PE
Product Name: lithium-ion battery separator
Appearance: Milky white porous films
Function: Used in separating lithium ion battery cathode and anode,to prevent short circuit
Product characteristics:
1.Uniform pore size distribution
2.Low obturator temperature
3.High film rupture temperature
Application : Communications products battery,Tool Battery.
Technical Parameter
|
Properties |
Unit |
T01 |
T02 |
T03 |
|
|
Thickness |
microns |
16 |
20 |
25 |
|
|
Porosity |
% |
37 |
38 |
36 |
|
|
Air Permeability |
sec/100cm |
550 |
500 |
640 |
|
|
Tensile Strength |
(MD) |
grams/cm² |
1400 |
1500 |
1500 |
|
|
(TD) |
grams/cm² |
1300 |
1400 |
1000 |
|
Elongation |
(MD) |
% |
70 |
70 |
70 |
|
|
(TD) |
% |
190 |
140 |
160 |
|
Puncture Strength |
grams |
690 |
650 |
640 |
|
|
90°C thermal contraction |
MD |
% |
3.0 |
3.1 |
3.1 |
|
|
TD |
% |
1 |
1 |
1 |
|
120°C thermal contraction |
MD |
% |
16.6 |
15.6 |
15.2 |
|
|
TD |
% |
12.2 |
11.5 |
11.2 |
Safety performance(After manufacturing battery)
|
NO. |
Item |
Criteria |
Remarks |
|
1 |
Vibration test |
|
No fire,noexplosion |
|
2 |
Drop Test |
|
|
|
3 |
Short circuiting Test |
100(o) |
|
|
4 |
High temperature test |
7 days |
No fire, no explosion Capacity≥80%C5 |
|
5 |
Heating Test |
130*10min |
No fire,noexplosion |
|
6 |
Overcharge testing(NO PCM) |
3C 4.6V |
|
|
7 |
Storage Characteristics |
|
Remaining Capacity≥85% |

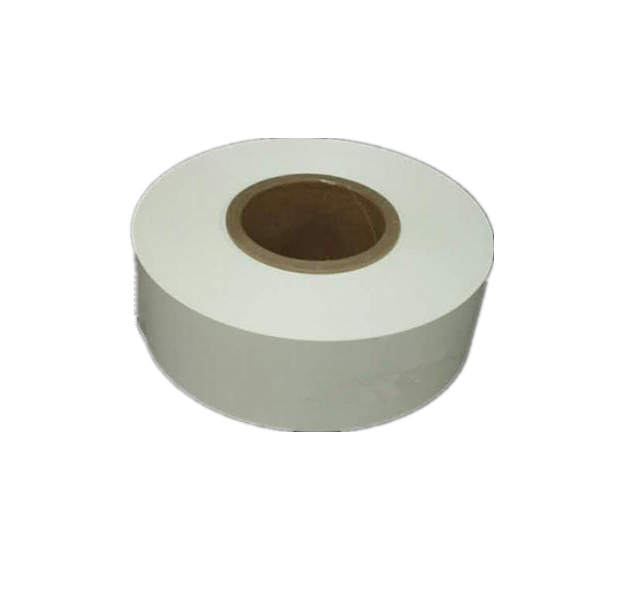

Product Images
