Any inquiry in diesel generator set, please freely contact me by email sales002@sutechgenerator.com or WhatsApp +86 1536 5612 391
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1000 hours or 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-C150GF
-
Speed:
-
1800RPM
-
Manufacturer:
-
Sutech Power
-
Diesel engine:
-
With VOLVO TAD752 engine
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Rated Power:
-
150kw 200kva
-
Output Type:
-
AC Three Phase
-
Fuel tank capacity:
-
8 Hours Working
-
Noise level:
-
65dBA@7m(no Load)
-
Package:
-
Wooden Case or pallet
-
Key words:
-
150kw 200kva volvo diesel generators
-
Certification:
-
CE/ISO9001/ISO14001/EPA
Quick Details
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
271A
-
Frequency:
-
60Hz
-
Warranty:
-
1000 hours or 1 year, 12 Months or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sutech
-
Model Number:
-
ST-C150GF
-
Speed:
-
1800RPM
-
Manufacturer:
-
Sutech Power
-
Diesel engine:
-
With VOLVO TAD752 engine
-
Alternator:
-
Stamford/Marathon/Mecc atle/Leroy-somer
-
Rated Power:
-
150kw 200kva
-
Output Type:
-
AC Three Phase
-
Fuel tank capacity:
-
8 Hours Working
-
Noise level:
-
65dBA@7m(no Load)
-
Package:
-
Wooden Case or pallet
-
Key words:
-
150kw 200kva volvo diesel generators
-
Certification:
-
CE/ISO9001/ISO14001/EPA
FEATURES AT A GLANCE
EPA trailer silent generators 150kw 200kva volvo diesel generator with ECM engine 150 kw stamford alternator
All silent type diesel generator are equipped with Lamp,base fuel tank and fuel level gauge,MCCB circuit breaker,maintenance free acid battery etc.
This 150kw/200kva diesel generator set adopts volvo diesel engine.It's diesel engine with low loss,sufficient power and less maintenance performance.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Volvo penta engine Parameters
|
Item
|
|
|
Engine Model
|
TAD752GE
|
|
|
Number of Cylinders
|
6 cylinders Vertical in line
|
|
|
Cycle
|
4 stroke
|
|
|
Aspiration
|
Turbo with electronically controlled waste-gate & charge air cool
|
|
|
Bore×Stroke
|
108mm x130mm
|
|
|
Displacement
|
7.2L
|
|
|
Compression ratio
|
18:1
|
|
|
Prime Power/Speed
|
177kw/1800rpm
|
|
|
Standby Power/Speed
|
196kw/1800rpm
|
|
|
Speed Governor
|
ECM
|
|
|
Fuel Consumption at 100% Load
|
213g/kw.h
|
|
|
Alternator Parameters
|
|
|
|
Alternator brand
|
Stamford, Marathon, Leroy Somer, Sutech…
|
|
|
Prime power
|
150kw
|
|
|
Frequency
|
60Hz
|
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust range
|
≥5%
|
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Controller Panel
|
|
|
|
Brand
|
Deepsea/ComAp/SmartGen
|
|
|
Function
|
High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,Low coolant
AMF,Synchronizing and so on Support RS232,RS485,USB |
|
You can choose
Silent type
The silent canopy is made of electric galvanized solid steel.with good performance of Anti-rust.the inside high density sound-absorbing material can help reduce the noise to level 70-90db(A)@7M
Open type
If you have no require for the noise level or nobody around when generator running.We suggest you cost-effective open type.

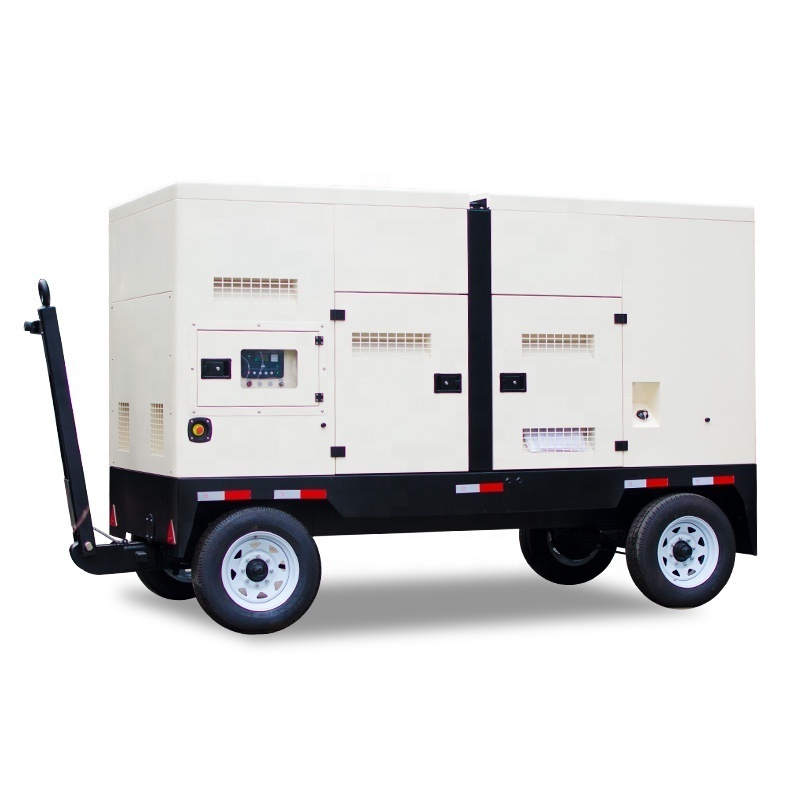

Trailer mobile silent type
The mobile type is equipped with silent canopy and heavy duty movable trailer.The best solutions for your flexible power demand
Product overview
FAQ
Q:What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your power capacity,voltage and frequency
Q: What about the lead time?
A: 7-15 workdays, depending on the brand of diesel engine and parts availability.
Q: What is your payment terms?
A:We accept T/T,L/C, and Alibaba trade assurance credit payment.
Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.
Q:What about your warranty?
A: We will warrant our diesel generator for 1000 hours or 1 year which comes first
A: It would be highly appreciated if you can provide details of your power capacity,voltage and frequency
Q: What about the lead time?
A: 7-15 workdays, depending on the brand of diesel engine and parts availability.
Q: What is your payment terms?
A:We accept T/T,L/C, and Alibaba trade assurance credit payment.
Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.
Q:What about your warranty?
A: We will warrant our diesel generator for 1000 hours or 1 year which comes first
