High speed linear gasket lainner lining wad capping insert testing machine

High speed linear gasket lainner lining wad capping insert testing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Plastar

Weight:: 950 KG

Dimension(L*W*H):: 4.2*1.3*2

After-sales Service Provided:: Free spare parts

Color:: Normal

Certification:: CE Certificate

Material:: Plastic Film

Machine type:: Auto

Function:: Packing Filling

Product name:: gasket insert machine

Keyword:: Packaging System

Usage:: Widely Used

Quick Details

Voltage:: 220V 50HZ

Power:: 0.2kw

Place of Origin:: Guangdong, China

Brand Name:: Plastar

Weight:: 950 KG

Dimension(L*W*H):: 4.2*1.3*2

After-sales Service Provided:: Free spare parts

Color:: Normal

Certification:: CE Certificate

Material:: Plastic Film

Machine type:: Auto

Function:: Packing Filling

Product name:: gasket insert machine

Keyword:: Packaging System

Usage:: Widely Used

Product Description

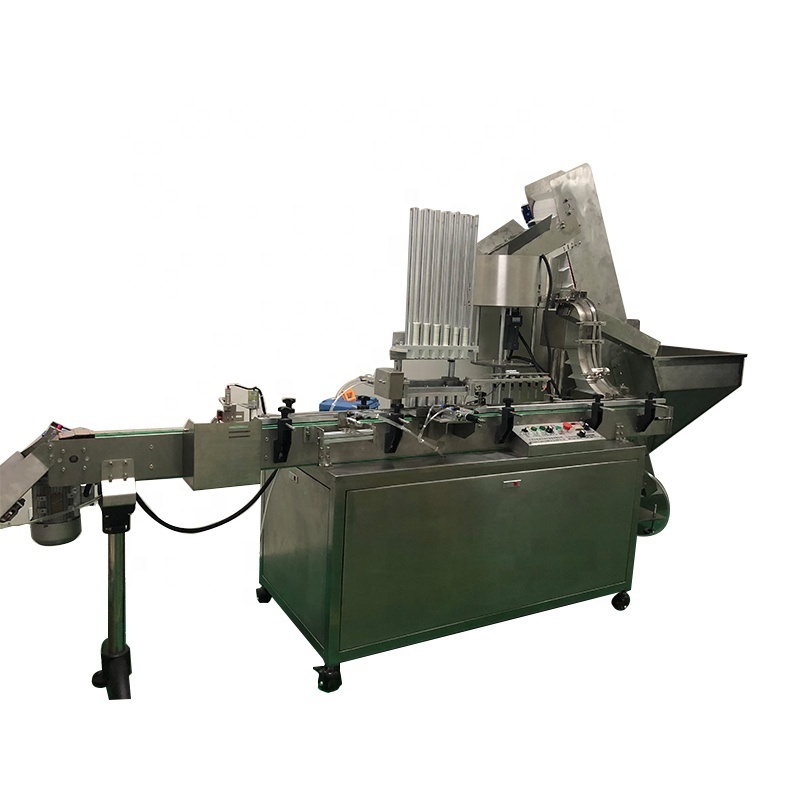

High speed cap liner wadding machine

1. Replace manual word, wadding cap liner into cap automatically, achieve automation, save labor cost.

2. Easy operation: adopt Siemens PLC control system and human-computer interface, increase the flexibility of function expand, human computer interface touch screen operation, convenience and speedy.

3. Strong individuation: all equipment can be custom made as per product feature and customers' specific requirment.

4. High efficiency

Specifications
Model	SC-3900
Style	Linear
Max. allowed cap diameter range	25-90mm
Max allowed cap height range	15-35mm
Max output	18000pcs/hour
Max product processable per each cycle	10
Control Center	Japan Mitsubishi PLC
Human / Machine Interface	Taiwan colorful touch screen
Installed power	220V 50Hz, single phase, 0.2kw
Compressed air requirment	4-5 Bar
Air consumption	Approx. 20NI/Min
Change over time	Approx. 20 Min (Trained person)
Machine dimension	LWH 4.11.62 Meter
Net Weight	Approx. 950kgs
Gross weight	Approx. 1000kgs
Measurement (CBM)	Approx. 8.72 cbm
Gluing Machine	Allowed

Components
PLC	Mitsubishi from Japan
Gear Reducer	Italy Begema
Photo sensor	Leuze from Germany
Inverter	Taiwan Delta
Power	Taiwan Meanwell
3P Motor	Italy Begema
Limit switch	Taiwan Yangming
Electric Relay	Japan Omron
Solenoid Valve	Taiwan Airtac
Vacuum Generator	Japan SMC
Vacuum Valve	Japan SMC
Fiber Optical Sensor	Japan Panasonic
Sucker	Japan SMC
Gear Motor	Waiwan VTV
Mechanical Valve	Taiwan Airtac

Shenzhen Plastar Industry Co.,ltd

Shenzhen Plastar Industry Co.,ltd. was established on 2009. We are a professional machinery manufacturer, we have 3 professional production lines: one is mainly for fully automated machinery and equipment: like Automatic PLASTIC BOTTLES LEAK TEST MACHINE , rectangle & square bottle bagging machine , bottle cap assebly & plug gasket machine etc.., The second production line is specializing in the production of injection molding machine, Extrusion blow molding machine ,mold and so on. The third line is specizlizing in Crusher, Cooled chiller,Autoloader and so on. We have CE certificate, Our machines are exported to all over the world, We have numerous partner in Peru,Mexico,South Korea,Japan, South Africa...,Please believe that we can give you the best service and related one-stop comprehensive solutions, look forward to cooperation with you.

Production Environment
