Quick Details
-
Brand Name:
-
E-Abel
-
Model Number:
-
EA-50
-
External Size:
-
335*335*125MM(Multi size)
-
Name:
-
Aluminum Alloy Cantilever Control Box
-
Material:
-
Aluminum
-
Machine Type:
-
CNC Vertical Machining Center
-
Size:
-
Customized. Range
-
Color:
-
White Grey
-
Certification:
-
ISO9001:2015 CE
-
Feature:
-
Chemical resistance
-
Function:
-
Protection equipment
-
Application:
-
CNC Machine Tool
-
Thickness:
-
0.8/1.0/1.2/1.5/2.0mm(Can Customized)
Quick Details
-
Protection Level:
-
IP55
-
Type:
-
Control Box
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
E-Abel
-
Model Number:
-
EA-50
-
External Size:
-
335*335*125MM(Multi size)
-
Name:
-
Aluminum Alloy Cantilever Control Box
-
Material:
-
Aluminum
-
Machine Type:
-
CNC Vertical Machining Center
-
Size:
-
Customized. Range
-
Color:
-
White Grey
-
Certification:
-
ISO9001:2015 CE
-
Feature:
-
Chemical resistance
-
Function:
-
Protection equipment
-
Application:
-
CNC Machine Tool
-
Thickness:
-
0.8/1.0/1.2/1.5/2.0mm(Can Customized)
PRODUCT DESCRIPTION.

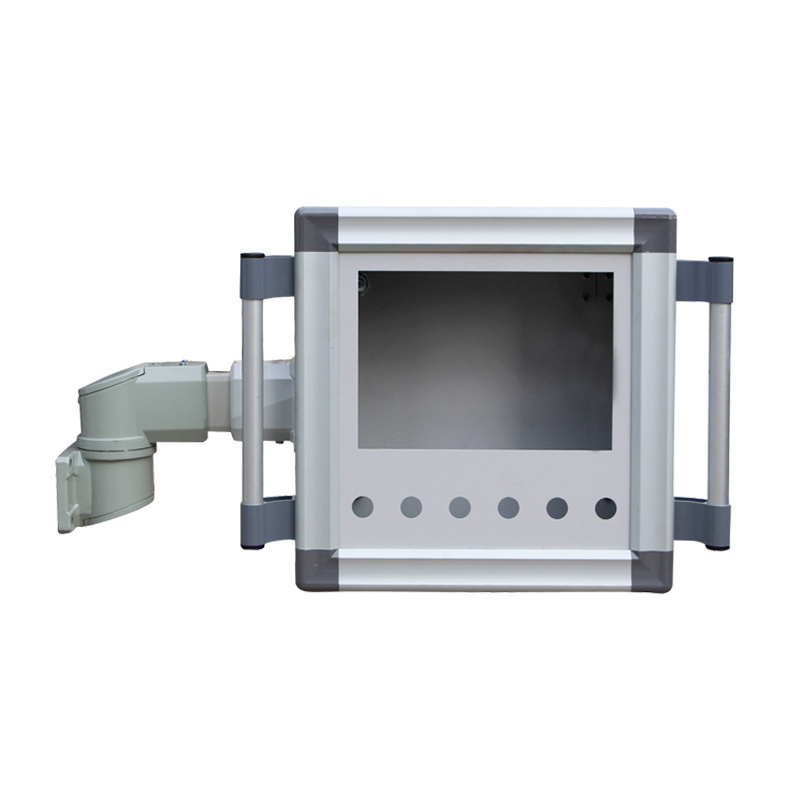

This structure can be installed on the front or side of the device, the wall base can be rotated 180", the control box can be
rotated 300, and it is equipped with a 300" rotatable, flexed, and extended intermediate connector that resembles a human elbow
joint function, and has a working radius It can reach 1.5 meters.
Type 60 cantilever assembly structure is suitable for medium and large mechanical equipment, the appearance is designed by
streamline, the appearance is strong and powerful and beautiful, after the engineers according to the load-bearing requirements of
the design and the strict tests, the combination of humanity and practicality.
|
Name
|
Cantilever Control system
|
|
Size
|
Multi size
|
|
Thickness
|
1.0/1.2/1.5/2.0mm（optional）
|
|
Material
|
Al/iron
|
|
Protection level
|
IP65/54
|
|
Custom requirements
|
Consulting customer service
|
|
Certificate
|
CE.ISO
|
|
Size article number
|
Box size(mm)
|
Fabric size(mm)
|
Panel size(mm)
|
|
EA40-25-16
|
400*250*165
|
355*205
|
328*178
|
|
EA46-35-16
|
460*350*165
|
415*305
|
388*278
|
|
EA52-39-16
|
520*390*165
|
475*345
|
448*318
|
|
EA40-25-18
|
400*250*180
|
300*150*5
|
293*143
|
|
EA46-35-18
|
460*350*180
|
360*250*5
|
353*243
|
|
EA52-39-18
|
520*390*180
|
420*290*5
|
413*283
|
FAQ
1.Do your enclosure come with the assembly?
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no
drawings, we will also provide solutions for you.
4. What are leading times of orders?
Standard box with deliver within 2days and customized box will cost within 10 days.
5. Ratings & compliance?
NEMA3.13.R3 IP65,IP54 3C CE UL
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no
drawings, we will also provide solutions for you.
4. What are leading times of orders?
Standard box with deliver within 2days and customized box will cost within 10 days.
5. Ratings & compliance?
NEMA3.13.R3 IP65,IP54 3C CE UL
