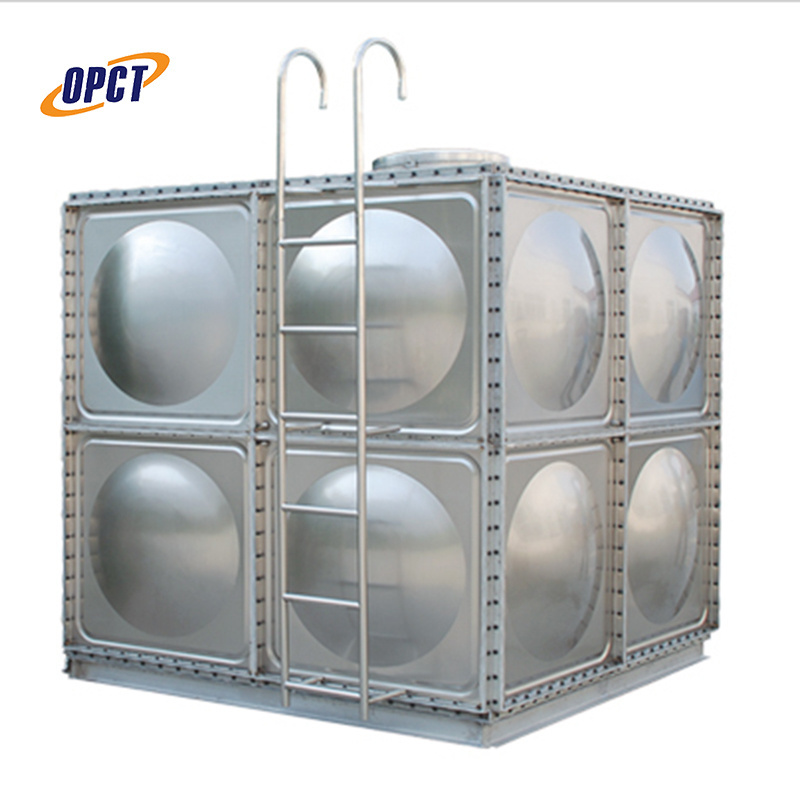

stainless steel modular water tank 5000 gallon

Stainless steel water tank with SUS304 stainless steel plate Seiko molded, handsome in appearance, economical and practical, the main body is not bad. Generally stamping into three sizes, namely 1x1 m, 1x0.5 m and 0.5x0.5 m , the surrounding tungsten argon arc welding, with high strength, light weight, low cost, environmental health and so on.

1. Light weight and high strength, which easy to transport and assemble at site

2. Excellent waterproof property, with no leakage

3. Anti-aging with long service for over 30 years

4. Free-maintainance

5. Cost saving

Bolt. nut & washers: stainless steel 304 material.
Sealing material: Non-toxic P.V.C foam tape shall be used in between the joints
Covers: The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement
Flanges : The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method : All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.

Precautions

1.When you order should provide water tank size, take over the place, diameter size.
2.Water tank can be supporting supply.
3.Use water injection temperature for the 4-65 is advisable. Water injection temperature higher than the value can be put forward in order to separately solve.

4.Water tank inside and outside of the other welding not welding, prevent damage porcelain face.
5.Water tank to the ground under should with structure design personnel for approval shall prevail.
6.Water tank should be regularly cleaned, try to prevent water into the trash.
