Quick Details
-
Power:
-
7.5KW, 7.5kwx2
-
Dimension(L*W*H):
-
4300x800x1500 mm
-
Production Capacity:
-
8m/min
-
Core Components::
-
PLC, Engine
-
Production Capacity::
-
Fast
-
Thickness::
-
Max 6mm
-
Applicable Industries::
-
spiral duct forming machine for ventilation
-
Place of Origin::
-
China
-
Min Diameter Range(mm):
-
200
-
Angle iron Specification:
-
30x20,30x30,40x30
-
Discharge rack:
-
850x850x1250
-
Voltage:
-
380V/50HZ/3PH
Quick Details
-
Brand Name:
-
METMAC
-
Weight:
-
2600 kg
-
Place of Origin:
-
Guangdong, China
-
Power:
-
7.5KW, 7.5kwx2
-
Dimension(L*W*H):
-
4300x800x1500 mm
-
Production Capacity:
-
8m/min
-
Core Components::
-
PLC, Engine
-
Production Capacity::
-
Fast
-
Thickness::
-
Max 6mm
-
Applicable Industries::
-
spiral duct forming machine for ventilation
-
Place of Origin::
-
China
-
Min Diameter Range(mm):
-
200
-
Angle iron Specification:
-
30x20,30x30,40x30
-
Discharge rack:
-
850x850x1250
-
Voltage:
-
380V/50HZ/3PH

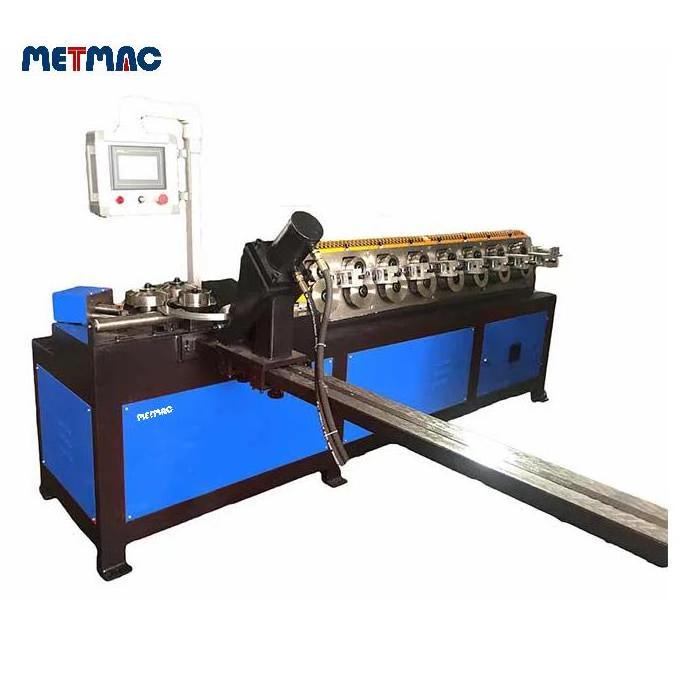

Round Duct Flange Forming Machine
Round duct flange forming machine is for the efficient and high capacity production work on the HVAC spiral and round duct fabrication.
Round duct flange forming machine composes with coil strip uncoiler, right angle roll former, three vertical roller section bender, hydraulic cutter, hydraulic working station and electrionc control system.
Uncoiler asisting the uncoiling of coil materil for feeding into the roll former for cold roll forming the strip to right angle profile, eight stations of roll forming device making sure the right angle profile formed preciously.
Three vertical rolls for section bending the right angle profile to circular or round flange, different diameter of circular flange can be produced by adjusting the forming position of rolls.
Hydraulic cutter cutting off the formed flange automatically to finish the whole working sequance.
Features
-
High-precision work surface ensures roll forming accuracy.
Reasonable and compact machine design, easy to operate.
The maximum load-bearing capacity of the unloading rack reaches 2 tons.
Eight stations of rolls forming 90 degree flange.
Three sets of horizontal forming rolls straight flanges into circles.
Hydraulic cutter cuts off rolled duct flanges.
Flange hydraulic cutter is adjustable for cutting freely according to the diameter of flange.
Computer sets flange diameter.
After the round flange is formed and welded, the flange hole can be punched.
