Quick Details
-
Roll Ratio(Front/Back):
-
1:1.4
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
China
-
Brand Name:
-
eenor
-
Voltage:
-
220-440v
-
Dimension(L*W*H):
-
5640X2300X1400
-
Year:
-
2024
-
Power (kW):
-
75
-
Weight (KG):
-
3650 KG
-
Working length:
-
300-3000mm
-
Working diameter of rolls:
-
160-660 mm
-
Working linear speed of front roll:
-
8.95-28.6 m/min
-
Max gap:
-
4.5-15 mm
-
Driving motor power:
-
5.5-245 kw
-
Notes:
-
bearing,nylon bush grease LUB,copper sleeve oil LUB
-
Capacity:
-
1-165 kg
-
Model:
-
xk160,xk250,xk300,xk660
Quick Details
-
Diameter of Roll(mm):
-
560 mm
-
Rotation Speed of Front Roll(rpm):
-
2 - 200 rpm
-
Length of Roll(mm):
-
1530 mm
-
Roll Ratio(Front/Back):
-
1:1.4
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
China
-
Brand Name:
-
eenor
-
Voltage:
-
220-440v
-
Dimension(L*W*H):
-
5640X2300X1400
-
Year:
-
2024
-
Power (kW):
-
75
-
Weight (KG):
-
3650 KG
-
Working length:
-
300-3000mm
-
Working diameter of rolls:
-
160-660 mm
-
Working linear speed of front roll:
-
8.95-28.6 m/min
-
Max gap:
-
4.5-15 mm
-
Driving motor power:
-
5.5-245 kw
-
Notes:
-
bearing,nylon bush grease LUB,copper sleeve oil LUB
-
Capacity:
-
1-165 kg
-
Model:
-
xk160,xk250,xk300,xk660
Banbury Rubber Mixing Mill / Open Mixing Mill With CE
Details:
1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.
2.The roll is supported by roller bearing so it has low noise and long service life.
3.The roll bearing adopts grease lubricating and oil lubricating.
4.The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.
5.The product is complied with nation-established safety standard (this standard is identical with Europe standard).
Features:
1. Construction of mill rolls: drilled roll, bored roll, grooved roll
2. We can design speed ratio as per customers' formula and processing requirements.
3. Frame, frame cap and base are welded and treated by annealing for stress relieving.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5 Brake and emergency stop device can ensure the safety of personnel and equipment.
6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7 Human nature designed controlling system ensure labor safety.
8. . Methods of adjusting roll nip: manual or electric.
Technical Parameters:
|
Type |
Xk-160 |
Xk-250 |
Xk-300 |
Xk-400 |
Xk-450 |
Xk-560 |
Xk-660 |
|
Working diameter of rolls(mm) |
160 |
250 |
300 |
400 |
450 |
560 |
660 |
|
Working length of rolls(mm) |
320 |
620 |
750 |
1000 |
1200 |
1530 |
2130 |
|
Front roll surface speed(m/min) |
8.95 |
14.1 |
15.1 |
18.65 |
24.26 |
27.72 |
28.6 |
|
Friction ratio |
1:1.35 |
1:1.17 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.24 |
|
Max.nip(mm) |
4.5 |
8 |
8 |
10 |
15 |
15 |
15 |
|
Capacity per.batch(kg) |
1-2 |
8-15 |
15-20 |
18-35 |
25-50 |
35-50 |
165 |
|
Motor power (kw) |
5.5 |
18.5 |
22 |
37 |
55 |
90 |
245 |
|
Overall dimension(mm |
1380*860 *1320 |
3400*1500 *1800 |
3580*1550 *1695 |
4350*1850 *1785 |
5200*2380 *1840 |
5845*2284 *1978 |
7465*3662 *2080 |

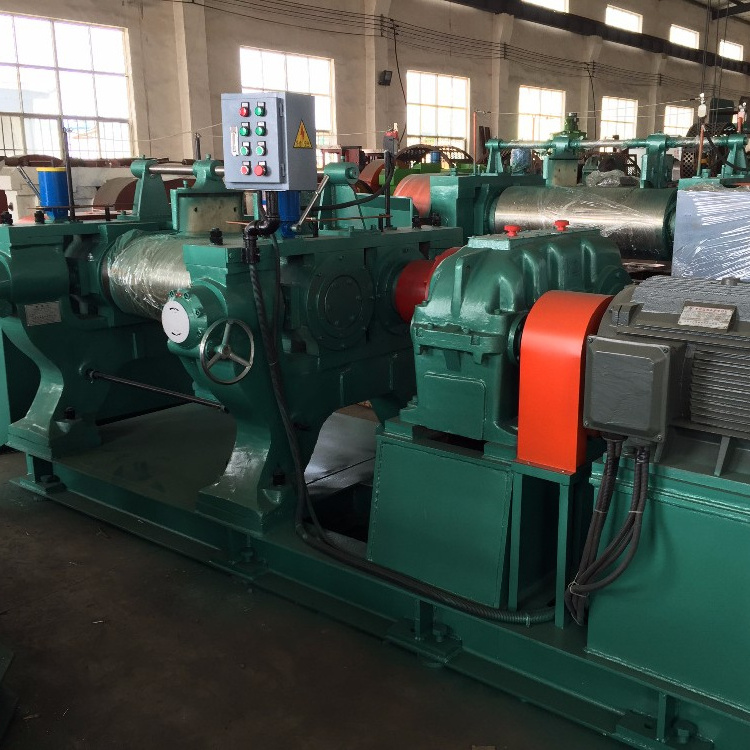

Pictures of machine:
automatic rotating
Common type
Lab type:
1)Gap Adjustment Mode:
Manual or Electrical (by motor)
2)Lubricating method:
Manual or Auto;Grease or Thin oil
3)Emergency stop device:
Pull Rod and Emergency button
4)Roller bearings:
Nylon Bushing or Copper Sleeve or Spherical Roller Bearing
