Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUANGUANG
-
Model Number:
-
HS-6kV
-
Tap changer:
-
NLTC/OLTC
-
Cooling type:
-
OFWF
-
High voltage range:
-
6-11kV
-
Rated power range:
-
650-14000kVA
-
Connection Symbol:
-
D-Y,d0-11
-
Windings material:
-
Copper
-
Iron core:
-
Silicon sheet
-
Standards:
-
IEC,GB,ANSI
-
Transformer:
-
Arc furnace transformer
-
Losses:
-
Low losses
Quick Details
-
Usage:
-
Power
-
Phase:
-
Three
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUANGUANG
-
Model Number:
-
HS-6kV
-
Tap changer:
-
NLTC/OLTC
-
Cooling type:
-
OFWF
-
High voltage range:
-
6-11kV
-
Rated power range:
-
650-14000kVA
-
Connection Symbol:
-
D-Y,d0-11
-
Windings material:
-
Copper
-
Iron core:
-
Silicon sheet
-
Standards:
-
IEC,GB,ANSI
-
Transformer:
-
Arc furnace transformer
-
Losses:
-
Low losses

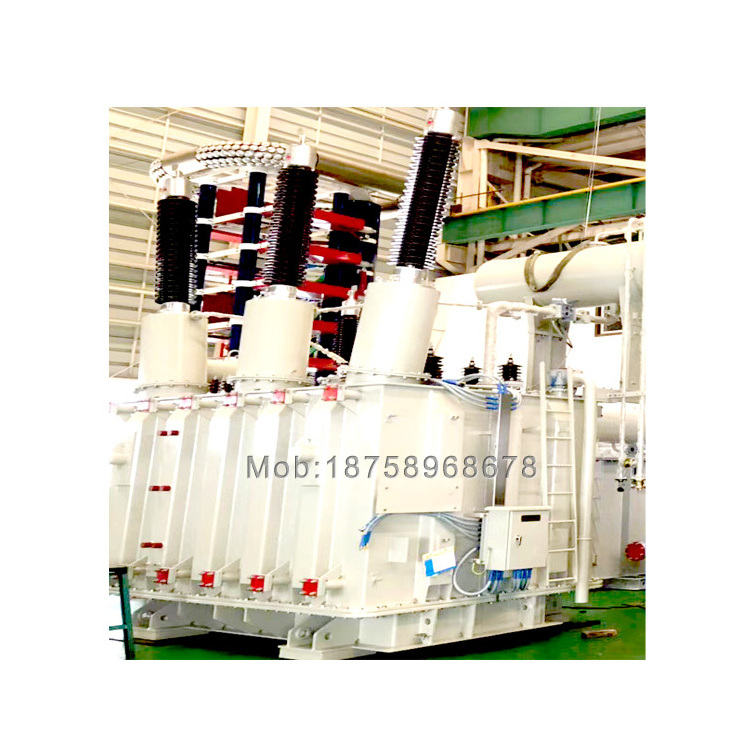

1.Pictures Of Furnace transformer
2.Descriptions Of Furnace transformer
| furnace transformer electric arc furnace transformer electric transformer | |
| 1 | Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents. |
| 2 | Arc furnace transformers used for steel-smelting |
| 3 | including load ratio voltage regulator type, no-load voltage regulator type,and built-in reactor type |
| 4 | Blast furnace transformers used for semlting of iron alloy, silicides, calcium carbide |
| 5 | single phase, three phase, load ratio voltage regulator and no-load voltage regulator |
| 6 | All are energy-saving products with low power loss. |
| 7 | Furnace transformers cooling modes are self-cooling mode, forced water cooling mode. |
5 . Technical Parameters Of Furnace transformer
Arc furnace transformers Main Technical Parameters for HS, HSZ, HSSPK, HSSP, HJSSP HJSSPZ Series
6kV-11kV Level Arc furnace transformer:
| Type |
Rated
power
|
Connection
symbol |
Primary
voltage
|
Secondary
Voltage
|
Regulation voltage step |
short-circuit impedance(%) |
No-load loss |
On-load loss |
| HS-650/10 | 650 | D-Y,d0-11 | 10 | 130~75 | 5 | 20 | 1.9 | 10 |
| HS-1250/310 | 1250 | D-Y,d0-11 | 10 | 210~160 | 5 | 21 | 2.9 | 15.7 |
| HS-1600/10 | 1600 | Yd11 | 10 | 85~65 | 5 | 6.0 | 5.100 | 17.4 |
| HSZ-2000/10 | 2000 | Yd11 | 10 | 300~140 | 15 | 4/6 | 5.3 | 33.7 |
| HSSPK-2500/10 | 2500 | D-Y,d0-11 | 10 | 220~110 | 6 | 21/9 | 5.4 | 32.7 |
| HS-3000/10 | 3000 | D-Y,d0-11 | 10 | 220~110 | 5 | 19/9 | 5.2 | 26.2 |
| HSSP-3200/10 | 3200 | Dd0 | 10 | 240~104 | 5 | 18/7 | 7.7 | 40.9 |
| HSSP-4200/10 | 4200 | D-Y,d0-11 | 10 | 240~160 | 5 | 18.5 | 7.3 | 33.2 |
| HSSP-5500/6 | 5500 | Dd0 | 6 | 212~150 | 5 | 8 | 10.1 | 47 |
| HSSPK-5500/6 | 5500 | Dd0 | 6 | 260~139 | 8 | 9 | 7.5 | 60 |
| HSSP-6300/6 | 6300 | Yd11 | 6 | 207~158 | 5 | 7.5 | 8.5 | 58.2 |
| HJSSP-7500/10 | 7500 | D-Y,d0-11 | 10 | 240~140 | 6 | 6.4 | 10.7 |
78.2 |
| HSSPZ-8000/10.5 | 8000 | Yd11 | 10.5 | 300~140 | 17 | 7 | 11.8 | 99.8 |
| HJSSPZ-8000/10 | 8000 | Dd0 | 10 | 240~149 | 9 | 7.5 | 9.8 | 76.8 |
| HSSPZ-9000/6 | 9000 | Yd11 | 6 | 240~89 | 17 | 7 | 13.7 | 121.6 |
| HSSP-12500/10 | 12500 | Dd0 | 10 | 325~166 | 11 | 8 | 12.4 | 145.7 |
| HJSSPZ-14000/10 | 14000 | Dd0 | 10 | 325~205 | 13 | 6.5 | 13.2 | 134.6 |
6.Certifications And Workshop Of Product
7.Function And Features Of Product
| On-load-tap-changing Electric Arc Furnace Transformer | ||
| 1)Low loss | 4) High efficiency | 7)Pretty outline and compact structure |
| 2)Low noise | 5) Easy maintenance | 8)100% guaranteed no leakage |
| 3) Operation reliability | 6) Low partial discharge | 9)Strong mechanical strength and short-circuit with |
| Electric Arc Furnace Transformer Introduction to Products | |
| 1 | Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents. |
| 2 | Arc furnace transformers used for steel-smelting |
| 3 | including load ratio voltage regulator type, no-load voltage regulator type,and built-in reactor type |
| 4 | Furnace transformers used for semlting of iron alloy, silicides, calcium carbide |
| 5 | Load ratio voltage regulator and no-load voltage regulator |
| 6 | All are energy-saving products with low power loss. |
| 7 | Transformers cooling modes are self-cooling mode, forced water cooling mode. |
