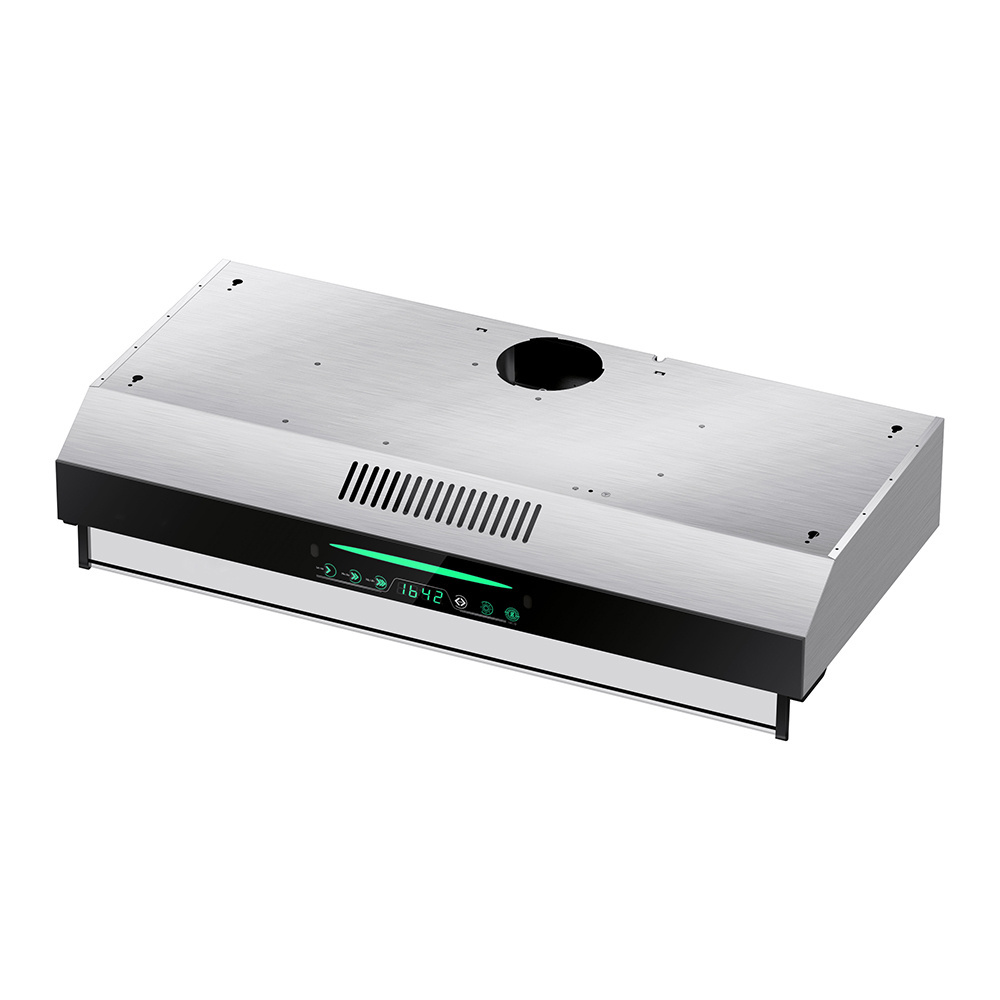

60/90cm Smoke Suction Charcoal Filter Downdraft Kitchen Range Hood/ Under Cabinet Black Kitchen Range Cooker Hood

60/90cm Smoke Suction Charcoal Filter Downdraft Kitchen Range Hood/ Under Cabinet Black Kitchen Range Cooker Hood

FOB Reference Price: Get Latest Price

≥100 Pieces

US $35

≥200 Pieces

US $28

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Source:: Electric

Type:: Wall Mounted

Housing:: Stainless steel

Power (W):: 203

Voltage (V):: 220

Place of Origin:: Guangdong, China

Brand Name:: OEM

Product name:: Slim curved kitchen hood

Color:: Black/SS

Material:: Stainless Steel+tempered Glass

Filter:: Aluminum filters or SS baffle filters

Motor:: 22# ball bearing cooper motor

Switch:: Push/Touch button

Air flow:: 350-700m3/h

Lamps:: 2*1.5W LED Light

Certification:: CB

Quick Details

After-sales Service Provided:: Free spare parts

Warranty:: 5 years

Application:: Hotel, Household

Power Source:: Electric

Type:: Wall Mounted

Housing:: Stainless steel

Power (W):: 203

Voltage (V):: 220

Place of Origin:: Guangdong, China

Brand Name:: OEM

Product name:: Slim curved kitchen hood

Color:: Black/SS

Material:: Stainless Steel+tempered Glass

Filter:: Aluminum filters or SS baffle filters

Motor:: 22# ball bearing cooper motor

Switch:: Push/Touch button

Air flow:: 350-700m3/h

Lamps:: 2*1.5W LED Light

Certification:: CB

Product Description

Spec	Description
Model Type	Telescopic Hood Kitchen chimney, cooker hood, range hood
Housing body	0.5mm thickness housing body
Blower&Cabinet	plastic blower and plastic cabinet
Materials	Materials Tempered glass+ 430# stainless steel body
Chimney	Painted black，white， 410/430#SS
Switch	3 speed push button/touch screen button
Filter	Aluminum filter or baffle filters
Noise level	≤68db
Suction power	350-750M3/HR
Wideth of size	600/700/900mm
Packing	5 layers S=K Square shape brown carton with foam packing

22# Copper Motor

1.Purchased over 10 years experience copper motor suppliers.2.3 Years warranty of copper motor

3.Suction power of 2 motors can over 700~750m³/hr
4.More durable and strong quality standard
5.When it reaches 70 degree, it will stop working automatic

PP Materials Plastic Cabinet

1.PP plastic material ,which flame temperature is 200 degree
2.Keep motor moving in the steady system
3.Easy to change air flow direction into vented type or recycling type.

Copper Power Line

1.Copper wire materials of power line to keep high efficient working system.2.0.5㎡ outside plastic, keep it in durable , avoid to
be broken.
3.Optional type power line for different used.

Housing Body

1.0.5mm thickness housing body 2.No graininess painted black/white housing body.
3.410#/430#/201# stainless steel housing body optional.
4.Mold punching housing body to keep steady when motor moving.

SS&Aluminum Filter

Mold punching SS filters or Aluminum filters optional for different market used.

Fan Blower

PP plastic fan or metal fan to run fast of motor, max suction power about 800m³/hr.

Safety Hanger

Hanger location will be on the body to keep against on the wall for 90degrees.And keep cooker hood move steadily

More details

Product packaging

Size of Telescopic kitchen cooker hood

Size	Dimension Size（mm）	Packing Size（mm）	20GP（pcs）	40HQ（pcs）
600mm	600282200	638255355	480	1150
700mm	700282200	738255355	400	1000
800mm	800282200	838255355	360	880
900mm	900282200	938255355	320	800
