Quick Details
-
Output signal:
-
NO,NC,NC or NO,NO+NC,Relay
-
Supply power:
-
DC10-30V,AC20-250V,AC/DC 20-250V
-
Response frequency:
-
As high as 1500HZ
-
Certificate:
-
CE,ISO9001
-
Waterproof grade::
-
IP65
-
Working environment temperature:
-
0°C~+55°C
-
Maximum detection distance:
-
50M
-
Outlook:
-
flat , square,U slot
-
Product name:
-
Infrared Sensitivity Adjustable Distance Measuring Photocell Switch
Quick Details
-
Usage:
-
Position Sensor
-
Place of Origin:
-
Hunan, China
-
Type:
-
NPN PNP optional
-
Output signal:
-
NO,NC,NC or NO,NO+NC,Relay
-
Supply power:
-
DC10-30V,AC20-250V,AC/DC 20-250V
-
Response frequency:
-
As high as 1500HZ
-
Certificate:
-
CE,ISO9001
-
Waterproof grade::
-
IP65
-
Working environment temperature:
-
0°C~+55°C
-
Maximum detection distance:
-
50M
-
Outlook:
-
flat , square,U slot
-
Product name:
-
Infrared Sensitivity Adjustable Distance Measuring Photocell Switch

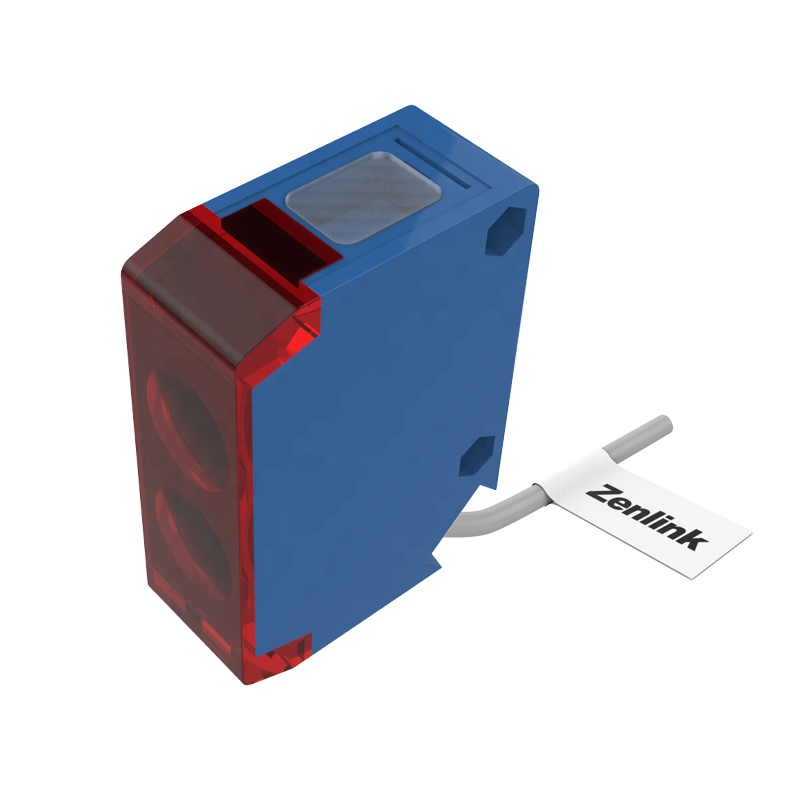

Infrared Thru Beam Sensitivity Adjustable Long Distance Measuring Sensor Photoelectric Sensor Photocell Switch
Photoelectric sensors are so versatile that they solve the bulk of problems put to industrial sensing. Because photoelectric technology has so rapidly advanced, they now commonly detect targets less than 1 mm in diameter, or from 60 m away
Feature of Infrared Thru Beam Sensitivity Adjustable Long Distance Measuring Sensor Photoelectric Sensor Photocell Switch
---Different designs
---Large sensing range up to 50 m
---High resolution
---Red-light, infrared-light oder red-light laser clocked
---Sensitivity adjustable
---Very high contamination/functional reserve
---Transmit power adjustable
---Alignment aid
---Collimated laser beam
---Robust casing
---CE certificated
The most reliable photoelectric sensing is with through-beam sensors. Separated from the receiver by a separate housing, the emitter provides a constant beam of light; detection occurs when an object passing between the two breaks the beam
All photoelectric sensors operate under similar principles. Identifying their output is thus made easy; dark on and light-on classifications refer to light reception and sensor output activity. If output is produced when no light is received, the sensor is dark-on. Output from light received, and it ’ s light-on
Technical data of Infrared Thru Beam Sensitivity Adjustable Long Distance Measuring Sensor Photoelectric Sensor Photocell Switch
| Outlook | flat , square,U slot |
| Size | Customized |
| Installation method | Correlation |
| Sn(rated detecting distance) | 5m-50m |
| Reliable detecting distance | 0mm-50mm |
| Output signal | DC NPN\PNP: NO,NC,NC or NO,NO+NC,AC 2 wire:NO,NC,NC or NO,NO+NC,Relay |
| Supply power | DC10-30V,AC20-250V,AC/DC 20-250V |
| Output voltagc drop | DC< 1.5V \AC< 6V |
| Lord current | DC< 200mA\AC< 300mA 3A/30VDC 1A/220VAC |
| Consumption current | < 30mA |
| Response frequency | As high as 1500HZ |
| Short circuit/reverse protection | Yes |
| Indicator | Flat type:Red Led,Square type:green power LED,red output LED |
| Shell material | PBT,H62 nickel plated brass |
| Working environment temperature | 0(no ice-15º C)~55º C |
| Lens material | PC |
| Protection Grade | IP65 |
| Connection method | PVC cable,air plug,air plug with pvc cable |
| Certificate | CE |
Sample Application of Infrared Thru Beam Sensitivity Adjustable Long Distance Measuring Sensor Photoelectric Sensor Photocell Switch
Catalog data sheet please contact us for download ,thank you . Other popular sensors for reference.
|
