Quick Details
-
Voltage:
-
380V
-
Power:
-
6.0 Kw
-
Dimension(L*W*H):
-
2750*1150*1650mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-

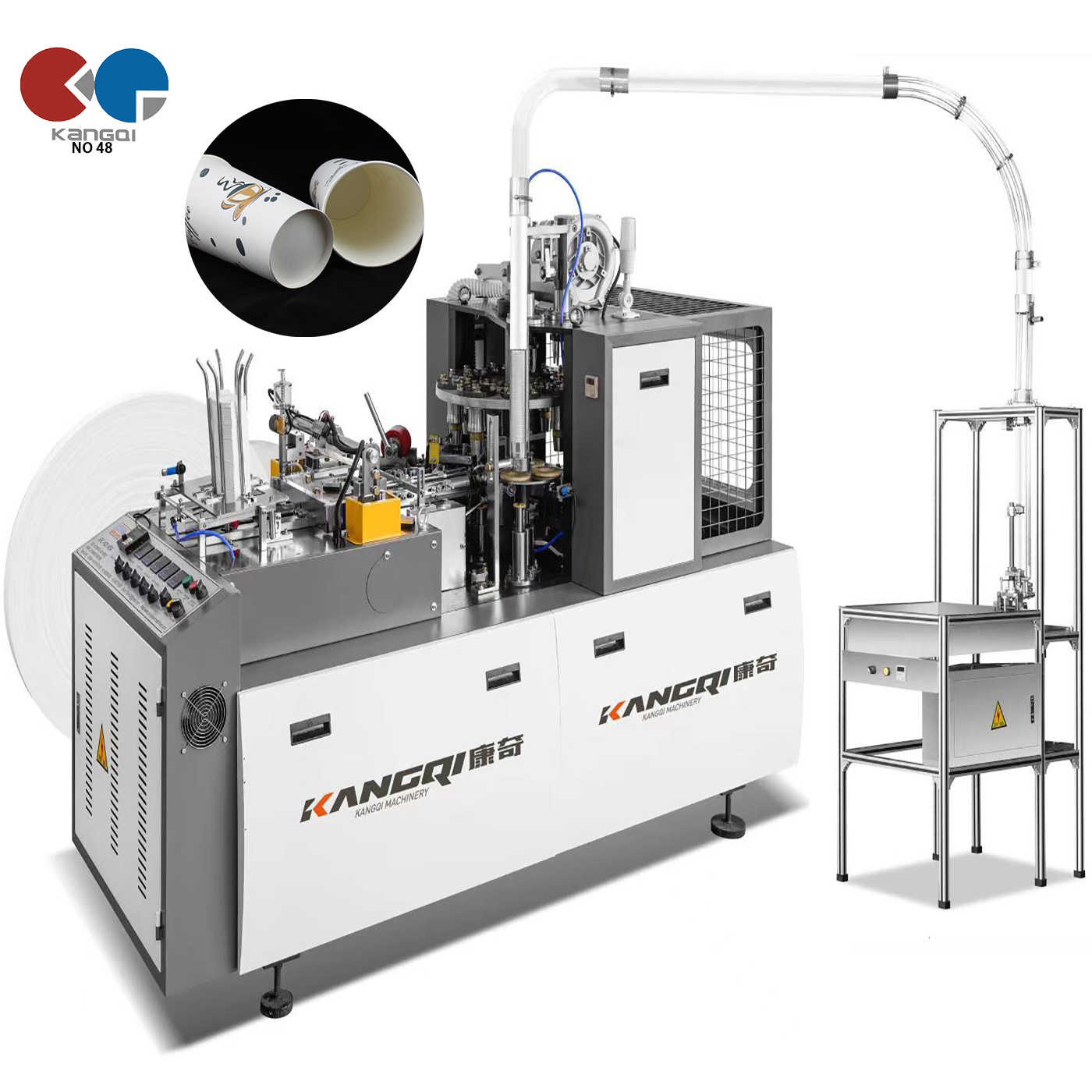

Single Turn Plate Paper Cup Making Machine
-
Raw material:
-
Single PE or Double PE Coated Paper
-
Color:
-
Customized
-
Capacity:
-
70-80 Pcs/min
-
Finished Products:
-
Colorful Paper Cup
-
Machine Type:
-
Paper Folding Machine
-
Drive way:
-
Gear drive/Chain drive
-
Package Size(L * W * H):
-
2750*1150*1650mm
-
Cup size:
-
3OZ-12OZ( CHANGE MOULD)
-
paper gram:
-
150-350g/㎡
Quick Details
-
Production Capacity:
-
70-80pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGQI
-
Voltage:
-
380V
-
Power:
-
6.0 Kw
-
Dimension(L*W*H):
-
2750*1150*1650mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Single Turn Plate Paper Cup Making Machine
-
Raw material:
-
Single PE or Double PE Coated Paper
-
Color:
-
Customized
-
Capacity:
-
70-80 Pcs/min
-
Finished Products:
-
Colorful Paper Cup
-
Machine Type:
-
Paper Folding Machine
-
Drive way:
-
Gear drive/Chain drive
-
Package Size(L * W * H):
-
2750*1150*1650mm
-
Cup size:
-
3OZ-12OZ( CHANGE MOULD)
-
paper gram:
-
150-350g/㎡
Product Description
WORKING PROCEDURE EXPLANATION
To produce the cups, a special coated paper with one-side or double side PE lamination is used. Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by normal heater or ultrasonic without any glue.
And at the same time, the bottom paper roll is die cut and fed to the cup. Then, the cup bottom is preheated and folded with the bottom paper to heating, knurling, curling and final step the paper cup is finished and delivered.
PRODUCT APPLICATION
DPJ-A12 paper cup machine is an automatic machine with multi-working station, which runs a procedure of single pe coated or double PE coated, paper cup fan feeding, cup side welding(by heater or ultrasonic), silicone oil lubrication, bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging. It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running. It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink, coffee, tea, ice cream cup an so on.)
Specification
|
Suitable size:
|
3oz-12oz and other special size
|
|
Raw material:
|
Single/double PE coated paper ( both are ok)
|
|
Suitable paper weight:
|
210--380 GSM
|
|
Ration Productivity:
|
70-80/min
|
|
Total power :
|
5.0 KW
|
|
Gross Weight:
|
1500kg
|
|
Overall dimensions :
|
2750L*1150W*1650H(mm)
|
|
H.S. code
|
8441309000
|
✦Half mould ：Bottom same，angle same，different height. Which mean C same ，D same，But A and B not same
✦Full mould ：angle change or bottom change then all need change.
Detailed Images
The paper feeding part
The sealing part
The motor part
Single Turntable Plate
It is formed by one turntable for paper cup forming, which reduces the stroke of the main functional machanism and rationally distributes the various functional assemblies.
Cup Body Sealing
Ultrasonic sealing for cup body, both okay for single or double PE coated paper.
Workshop
Our Service
Packing & Delivery
Delivery time: 30 days after receiving deposit
Packing and marking：Standard packing or wooden case
|
Packaging
|
|
|
|
Size
|
2750(L) * 1150 (W) * 1650 (D)
|
|
|
Weight
|
1.5 T
|
|
|
Packaging Details
|
The film packing as picture shows. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
2850 (L) * 1250 (W) * 1750 (D)
|
|
|
Weight
|
1.6 T
|
|
|
Packaging Details
|
The normal package is wooden box, If export to european countries,the wooden box will be fumigated, or pack it according to customers special request.
|
|
