NMEA 2000 Drop Line Cable Connectors A code terminator NMEA signal splitter NMEA 2000 drop cable connector

NMEA 2000 Drop Line Cable Connectors A code terminator NMEA signal splitter NMEA 2000 drop cable connector

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2.67

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: hysik

Model Number:: Outboard cable

Poles:: 5-pin

Coding:: A-coded

Factory:: Yes

Temperature rang:: -40°C+105°C

Degree of protect:: IP67

Standard:: IEC 61076-2-104

Cable:: Customized

Plastic Nut/scrw:: TPU

Material of contact:: Gold-plated

Quick Details

Type:: Industrial Automation connector

Application:: NMEA 2000/devicenet/profibus/CanOpen/industrial camera

Gender:: female/male

Place of Origin:: Guangdong, China

Brand Name:: hysik

Model Number:: Outboard cable

Poles:: 5-pin

Coding:: A-coded

Factory:: Yes

Temperature rang:: -40°C+105°C

Degree of protect:: IP67

Standard:: IEC 61076-2-104

Cable:: Customized

Plastic Nut/scrw:: TPU

Material of contact:: Gold-plated

Product Description

NMEA 2000 Components

Poles: 5 Pin

Connector Size: M12 x 1.0mm

Shielded

Coding:A coding

Connector Nut: Plastic

Connector Gender: Male, Female Mating Style: Screw, Quick Lock

Waterproof Rating: IP66, IP67, IP68 Standard Cable: 2 pairs twist 22+24AWG

Technical Data

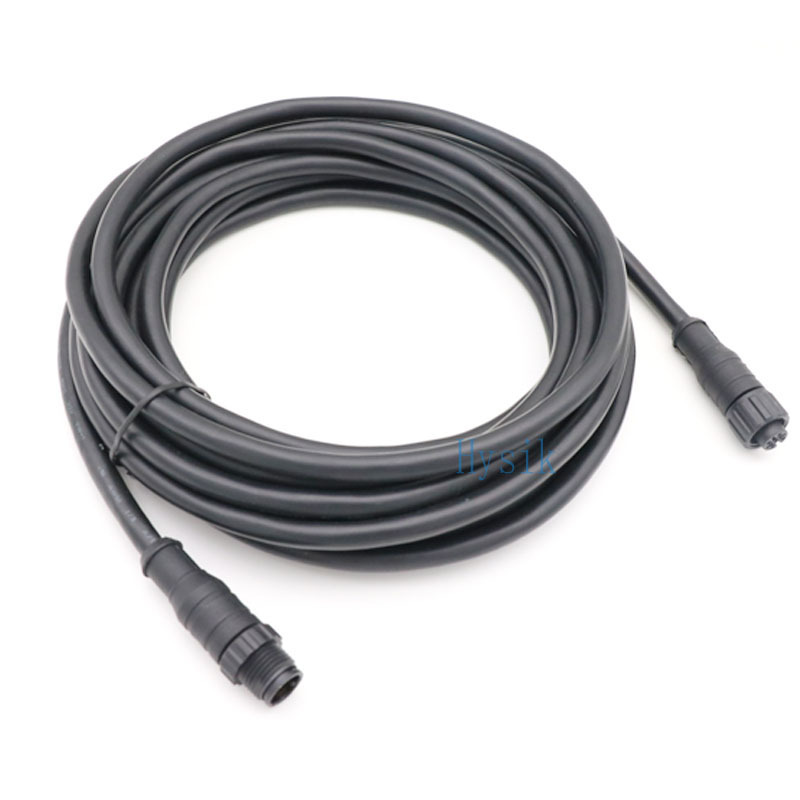

Hysik NMEA 2000 trunk cable
The NMEA2000 network comprises of a single trunk or backbone cable running through the length of the vessel with Tee Adaptors positioned where devices are to be attached to the network and a terminator at each end. The trunk or backbone cable can be created by either using made up cables or cordsets that come in a range of lengths or by running bulk cable and using field installable connectors where Tee connectors are required. Trunk cables come in two sizes, a larger “Mini” size which is rated to carry 8 Amps or a smaller “Micro” size which is rated to carry 4 Amps.The “Mini” trunk cable uses 12mm diameter cable and 25mm diameter connectors. The “Micro” trunk cable uses 7.5mm diameter cable and 14.5mm diameter connectors. Both types of cable are available in 0.5, 1, 2, 5 and 10 metre lengths and as bulk cable.Most installers are using the Micro size cable as this is much easier to handle and install.

Contacts	5-Pin
Wire gauge	22-26awg
Temperature range	– 40 °C /+ 105 °C
Rated voltage	250v
Pollution degree	3
Contact plating	Golded plated

Detailed Images

Applications

● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment

● Factory automation process control

●Packaging label printing equipment

● Industrial equipment

● EMS circuit board assembly

● Industrial safety grating light curtain

●Equipment batteries, semiconductors

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,

● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting

Packing & Delivery

Packing :5pcs packing in a sealing bag then put in a inner box,or according to Customer's Request.
Delivery :We can not ship out on weekend or China's Holiday.
Shipping :5-7days after received the payment.
Payment Methods :
1:T/T , PAYPAL , L/C , Western Union
2:Trade Assurance on Alibaba.com
