Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
YIZHAO
-
Model Number:
-
YZ005
-
Diameter:
-
76MM, 89MM, 40MM, 60MM, 68MM, 114MM
-
Product name:
-
galvanized steel ground screw helical screw pile
-
Surface treatment:
-
Galvanized Coated
-
Keyword:
-
galvanized steel ground screw
-
Type:
-
N/FN/Y/FY/G/V/J/U/L & Customized
-
MOQ:
-
1 Pcs
-
Packing:
-
Steel Pallet
-
Raw Material:
-
Q235B
-
Delivery time:
-
5-15 Days
-
OEM:
-
Accpeted
-
WARRANTY:
-
10 years
Quick Details
-
System of Measurement:
-
Metric
-
Material:
-
Steel
-
Capacity:
-
20-40KN
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
YIZHAO
-
Model Number:
-
YZ005
-
Diameter:
-
76MM, 89MM, 40MM, 60MM, 68MM, 114MM
-
Product name:
-
galvanized steel ground screw helical screw pile
-
Surface treatment:
-
Galvanized Coated
-
Keyword:
-
galvanized steel ground screw
-
Type:
-
N/FN/Y/FY/G/V/J/U/L & Customized
-
MOQ:
-
1 Pcs
-
Packing:
-
Steel Pallet
-
Raw Material:
-
Q235B
-
Delivery time:
-
5-15 Days
-
OEM:
-
Accpeted
-
WARRANTY:
-
10 years
Product Display
TYPE N
TYPE FN
TYPE Y
TYPE FY
TYPE G
TYPE V
TYPE J
TYPE U
TYPE L
Products Description
|
PRODUCTS SPECIFICATION SHEET
|
|
|
|
|
|
|||||
|
|
TYPE N
|
TYPE FN
|
TYPE Y
|
TYPE FY
|
TYPE G
|
|||||
|
External Diameter (MM)
|
48/60/68/76/89/114 MM
|
48/60/68/76/89/114 MM
|
48/60/68/76/89/114 MM
|
48/60/68/76/
89/114 MM
|
48/60/68/76/89/114/141/168/219 MM
|
|||||
|
Length (MM)
|
600-3500 MM
|
600-3500 MM
|
600-3500 MM
|
600-3500 MM
|
500-6000 MM
|
|||||
|
Flange Diameter (MM)
|
N/A
|
100-250 MM
|
N/A
|
100-250 MM
|
N/A
|
|||||
|
Flange Thickness (MM）
|
N/A
|
8 MM
|
N/A
|
8 MM
|
N/A
|
|||||
|
Material (GB)
|
Q235B
|
Q235B
|
Q235B
|
Q235B
|
Q235B / Q345B
|
|||||
|
Thickness (MM)
|
2.5-4 MM
|
2.5-4 MM
|
2.5-4 MM
|
2.5-4 MM
|
2.5-6 MM
|
|||||
|
Bolts & Nuts
|
3*M10/12/14/16
|
3*M10/12/14/16
|
3*M10/12/14/16
|
3*M10/12/14
/16
|
3*M10/12/14
/16
|
|||||
|
Surface Treatment
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
|||||
|
Drawing Force
|
10.7-28.5 KN
|
10.7-28.5 KN
|
20.5-28.5 KN
|
20.5-28.5 KN
|
N/A
|
|||||
|
Bearing Capacity
|
20-40 KN
|
20-40 KN
|
35-40 KN
|
35-40 KN
|
N/A
|
|||||
|
Horizontal Torque
|
4.5-10.5 KN
|
4.5-10.5 KN
|
8-10.5 KN
|
8-10.5 KN
|
N/A
|
|||||
|
PRODUCTS SPECIFICATION SHEET
|
|
|
|
|
|
|||||
|
|
TYPE V
|
TYPE J
|
TYPE U
|
TYPE L
|
|
|||||
|
External Diameter (MM)
|
48/60/68/76/89/114 MM
|
48/60/68/76/89/114 MM
|
48/60/68/76 MM
|
48/60/68/76 MM
|
|
|||||
|
Length (MM)
|
600-3500 MM
|
600-3500 MM
|
600-1000 MM
|
400-1600 MM
|
|
|||||
|
Flange Diameter (MM)
|
N/A
|
N/A
|
N/A
|
N/A
|
|
|||||
|
Flange Thickness (MM）
|
N/A
|
N/A
|
N/A
|
N/A
|
|
|||||
|
Material (GB)
|
Q235B
|
Q235B
|
Q235B
|
Q235B
|
|
|||||
|
Thickness (MM)
|
2.5-4 MM
|
2.5-4 MM
|
1.5-2.5 MM
|
2-4 MM
|
|
|||||
|
Bolts & Nuts
|
3*M10/12/14/16
|
3*M10/12/14/16
|
71-111MM WIDE, 130 MM DEEP
|
3*M8/10/12/14
|
|
|||||
|
Surface Treatment
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
Galvanized 80μm Average
|
|
|||||
|
Drawing Force
|
10.7-28.5 KN
|
10.7-28.5 KN
|
N/A
|
5-10.5 KN
|
|
|||||
|
Bearing Capacity
|
20-40 KN
|
20-40 KN
|
N/A
|
8-20 KN
|
|
|||||
|
Horizontal Torque
|
4.5-10.5 KN
|
4.5-10.5 KN
|
N/A
|
4-6.5 KN
|
|
|||||
Our Factory
About Us
Exhibition

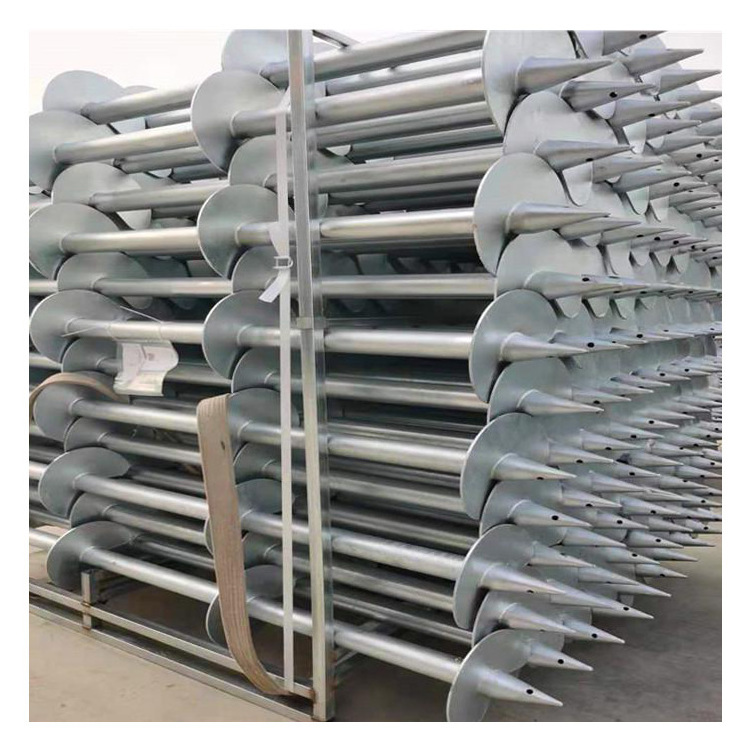

Product Packaging
FAQ
Q: Are you a manufacturer or trading company?
A: We're professional manufacturer specialized in Custom Photovoltaic Mounting Systems since 2015. Our factory are certified by ISO9001, 14001 & 45001, SGS & CE.
Q: OEM/ODM service available?
A: Yes. We're specialized in OEM/ODM.
Q: How to guarantee the quality of your solar structures?
A: We have strict quality control system from materials to finished products according to ISO9001 QC system. We guarantee all products are 100% qualified with 25 years.
Q: How long is your lead time for bulk order?
A: Our annual capacity is 500,000 tons. We have two large factories and are expanding to the third one now. We can produce and deliver products very fast depends on your order time.
