Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DICHUANG
-
Dimension(L*W*H):
-
1600*660*1700mm+1665*850*1380mm
-
Weight:
-
200kg+360kg
-
Certification:
-
CE Certificate
-
Name:
-

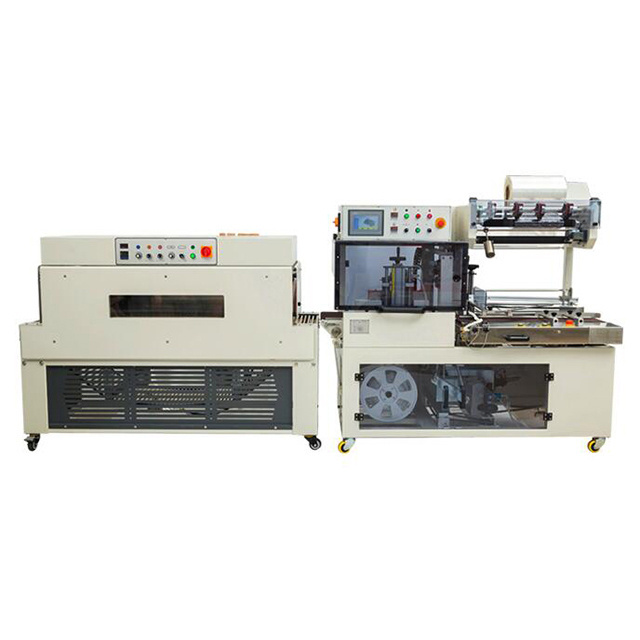

Automatic magazine book L type heat shrink packaging machine
-
Usage:
-
packing product
-
Keyword:
-
Film Wrap Equipment
-
Function:
-
POF Film Packaging Machine
-
Packing material:
-
POF/PVC
-
Machine type:
-
Auto Wrapping Machine
-
Packing speed:
-
18-35pcs/min
-
Item:
-
Packing Machine Line
Quick Details
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Pneumatic
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DICHUANG
-
Dimension(L*W*H):
-
1600*660*1700mm+1665*850*1380mm
-
Weight:
-
200kg+360kg
-
Certification:
-
CE Certificate
-
Name:
-
Automatic magazine book L type heat shrink packaging machine
-
Usage:
-
packing product
-
Keyword:
-
Film Wrap Equipment
-
Function:
-
POF Film Packaging Machine
-
Packing material:
-
POF/PVC
-
Machine type:
-
Auto Wrapping Machine
-
Packing speed:
-
18-35pcs/min
-
Item:
-
Packing Machine Line
Features
- Fully enclosed package.
- Automatic feeding, filming, bag making, sealing and cutting, waste collection, leveling, shrinking, packaging products completed in one time.
-Thermostat special aluminum sealing knife, anti-sticking, sealing line fine, not coking, no smoke, zero pollution.
- Cutter will automatically rebound after it is cut into package.
- Package size can be adjusted, without changing the mold.
- Conveyor all sets of PTFE heat pipe, not hot, does not damage the film.
- Shrink chamber with dual-loop hot air system, the temperature can be adjusted.
- Promise motor with variable speed motor, long service life, low noise.
Main parameter
|
Model |
BS-400LA |
DC-4825 |
|
Dimension |
L:1665×W:850×H:1380mm |
L:1600×W:660×H:1700mm |
|
maximum speed |
35pcs/min |
0-40m/min(adjustable) |
|
Packaging height |
≤125mm |
≤250mm |
|
Packaging width |
≤350mm |
≤480mm |
|
packing measurement |
Width +height≤400mm Length + height≤480mm |
Size of the furnace body: L:1200 x W:480 x H:250mm |
|
use the thin film |
POF folding film |
POF,PVC,PP |
|
Maximum filmMaximum film |
530mm(widewide)×280mm(external diameter ) |
-- |
|
power |
380V 1.5KW |
380V 8.8KW |
|
Air pressure |
≤0.5MPa(5 bar) |
-- |
|
Weight |
360kg |
200kg |
The scope of application
pharmaceutical, food, stationery, cosmetics, electronic products, toys and so on.
