Quick Details
-
Screen Type:
-
No screen
-
Combination:
-
Other, SOS alarm, Idle alarm
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GT06V
-
Accuracy:
-
5 meters
-
Work voltage:
-
DC9V-95V
-
Work current:
-
12V/40MA-80MA
-
Sleep current:
-
12V/5MA-15MA
-
Battery capacity:
-
180mAH
-
4G Band:
-
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71/ B38/B40/B41
-
GPS Cold start:
-
Average 32 seconds
-
GPS Hot start:
-
Average 1 second
-
GPS Sensitivity:
-
-162DBM
-
Dimension:
-
99mm*54mm*16.5mm
Quick Details
-
Car Fitment:
-
bmw
-
Resolution:
-
No
-
Function:
-
Other, Distance Warning, Speed Warning, Build-in Microphone, Voice Interaction, GPS tracking, 4G GPS Tracker
-
Screen Type:
-
No screen
-
Combination:
-
Other, SOS alarm, Idle alarm
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GT06V
-
Accuracy:
-
5 meters
-
Work voltage:
-
DC9V-95V
-
Work current:
-
12V/40MA-80MA
-
Sleep current:
-
12V/5MA-15MA
-
Battery capacity:
-
180mAH
-
4G Band:
-
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71/ B38/B40/B41
-
GPS Cold start:
-
Average 32 seconds
-
GPS Hot start:
-
Average 1 second
-
GPS Sensitivity:
-
-162DBM
-
Dimension:
-
99mm*54mm*16.5mm

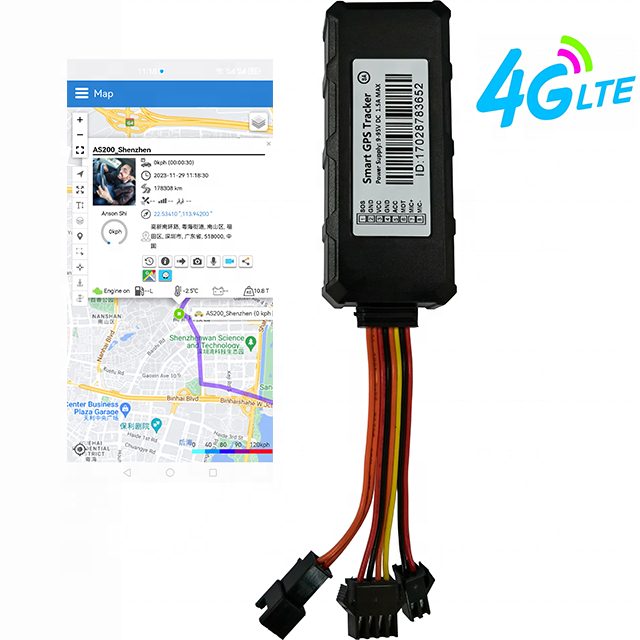

4G LTE CAT1 Vehicle GPS Tracker for Car Bike Anti Theft Geofence History Tracking Driving Analysis Device Gps Motorcycle Tracker GT06V
Product features
1. Precise positioning with accuracy of 5 meters.
2. GPS+LBS+AGPS precise positioning system.
3. Functions: Remote audio monitoring, remote power/fuel off, SOS alarm, ACC detection, power off alarm, overspeed alarm, move alarm, ACC illegal engine on alarm, etc...
4. Wide voltage input range: 9V-95V.
Application
Rental vehicles, credit vehicles, passenger vehicles, cars, motorcycles, taxis, truck, e-bike etc...
Device Parameter
Electrical character:
Power supply: Backup battery
Work voltage: DC9V-95V
Work current: 12V/40MA-80MA
Sleep current: 12V/5MA-15MA
Battery capacity: 180mAH(3.7V polymer battery)
Environment character:
Work temp: -20℃-70℃
Storage temp: -30℃-80℃
Work humidity: 5%-95%
GSM module communication character:
4G Band: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71
LTE-TDD B38/B40/B41
(Different countries use different frequencies)
Sim card slot: Standard
Antenna: Internal
GPS module positioning character:
Cold start: Average 32 seconds
Hot start: Average 1 second
Sensitivity(tracking): -162DBM
Antenna: Internal
External port:
Mic input: External microphone
I/O:
Low output 1 channel(fuel/power off)
H-IN 1 channel(ACC)
L-IN 1 channel(SOS)
UART-TTL: 3.3V serial port
Shape:
Dimension: 99mm*54mm*16.5mm
Case material: ABS plastics
Weight: 75g
Standard package and optional accessories
| Standard parts | Tracker, Wire Harness |
| Optional accessories | Immobilizer relay, Microphone, SOS(hijack) button |
