Quick Details
-
Dimension(L*W*H):
-
6000*1700*1800mm
-
Weight:
-
2400 KG
-
Max Speed:
-
450*2pcs/min
-
Max. Length of bag making:
-
280-650mm*2
-
Max. Width of bag making:
-
180-450mm*2
-
Max. Speed of bag making:
-
100-450pcs/min*2
-
Thickness range of single face:
-
0.01-0.05mm
-
Air pressure:
-
10HP
-
Mainframe of machine:
-
Thick steel plate
-
Material feeding system:
-
Modulating control system
-
Heating way of cutting knife:
-
Electric heating
-
Mainframe of punching machine:
-
Thick steel plate
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Model 500*2
-
Dimension(L*W*H):
-
6000*1700*1800mm
-
Weight:
-
2400 KG
-
Max Speed:
-
450*2pcs/min
-
Max. Length of bag making:
-
280-650mm*2
-
Max. Width of bag making:
-
180-450mm*2
-
Max. Speed of bag making:
-
100-450pcs/min*2
-
Thickness range of single face:
-
0.01-0.05mm
-
Air pressure:
-
10HP
-
Mainframe of machine:
-
Thick steel plate
-
Material feeding system:
-
Modulating control system
-
Heating way of cutting knife:
-
Electric heating
-
Mainframe of punching machine:
-
Thick steel plate

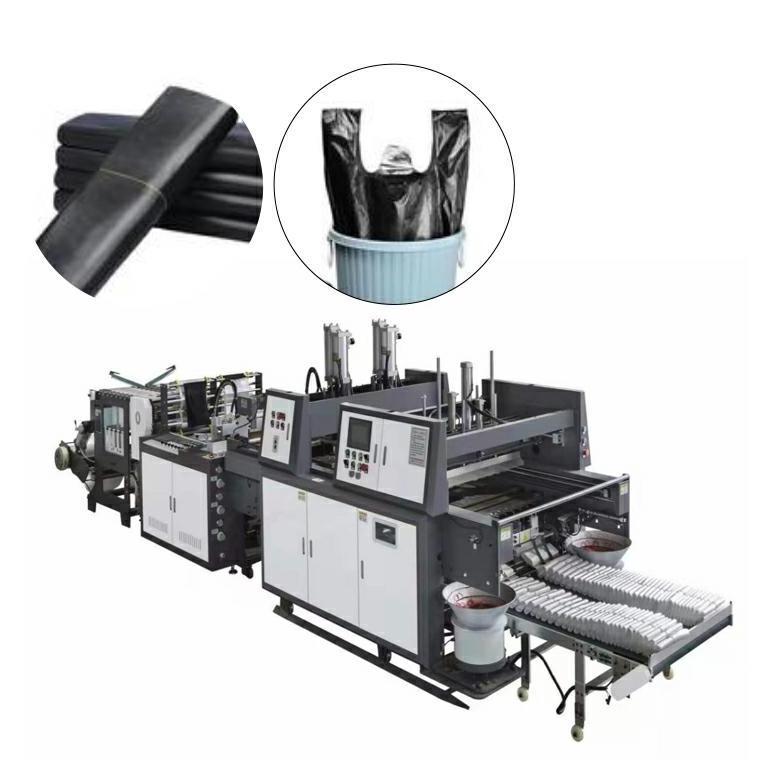

The machine for high-density polyethylene (HDPE), low density polyethylene plastic film production of shopping bags (T shirt bag).
It is use for producing vest bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.
|
Model
|
500*2
|
|
Max. Length of bag making
|
280-650mm*2
|
|
Max. Width of bag making
|
180-450mm*2
|
|
Max. Speed of bag making
|
100-450pcs/min*2
|
|
Thickness range of single face
|
0.01-0.05mm
|
|
Total power
|
16kw
|
|
Weight of machine
|
2400kg
|
|
Overall dimension
|
6000*1700*1800mm
|
|
Air pressure
|
10HP
|
Wenzhou mude Machinery Co., Ltd. is located in Ruian City, Wenzhou, Zhejiang Province, China. There is a large-scale production base in China with products all over the world. The vast sales network and information sources provide a good service platform for our innovation and development. It mainly sells complete sets of flexible packaging equipment: film blowing machine, printing machine, slitting machine, bag making machine, computer cross cutting machine, packaging machine and other series, with more than 100 kinds of products for your reference and selection, which can meet your requirements on product quality, output and so on. The products are mainly used for plastic film bag making such as OPP, PP, PVC, PE, POF and degradable film, film, non-woven fabric, web paper bag making and slitting rewinder, and are widely used in the packaging production of clothing, stationery, hardware and other products. Our machinery and equipment are exported to Eastern Europe, North America, South America, Southeast Asia and other regions and countries.
"Quality is with me, customers are in my heart" is our policy. We continue to lay a solid foundation, increase product research and development, improve service, demand colleagues to work together for common development! Create a better future!
Q: Are you a factory or trading company?
A:We are a factory
Q:How long is the warranty period?
A: All of our products have one year warranty
Q: What’s the main market of your company?
A: We have customers all over the world
Q:What’s your delivery time and payment Terms?
A:Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where’s your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui’an Station
