Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Pull-in Value:
-
10-13AT
-
Material:
-
ABS
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Switching Transducer
Quick Details
-
Mounting Type:
-
proximity reed switch
-
Description:
-
proximity reed switch
-
Model Number:
-
5CPS-S2919
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5C SENSOR
-
Pull-in Value:
-
10-13AT
-
Material:
-
ABS
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Output:
-
Switching Transducer

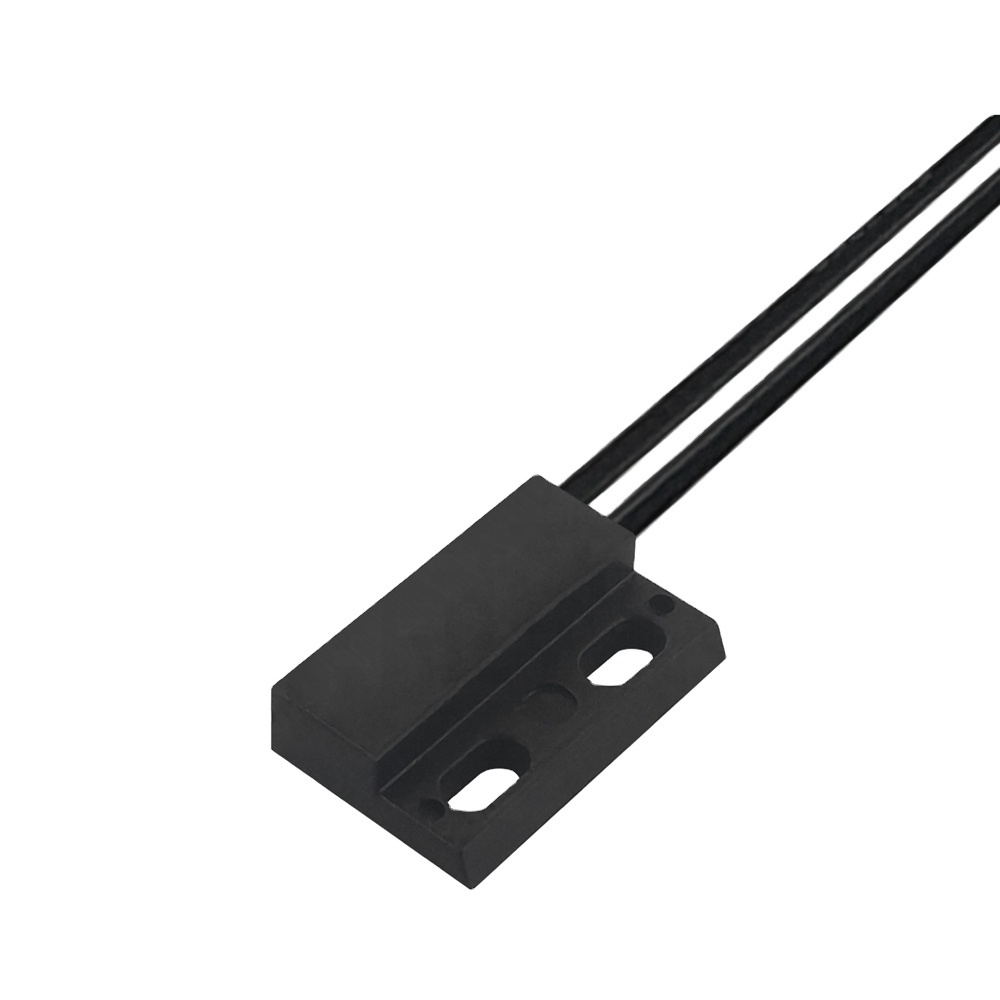

| 5C SENSOR Magnetic sensor proximity switch 5CPS-S2919 | ||||
| Model NO. | 5CPS-S2919 | Wire Gauge | 1007 22AWG | |
| Installation | Surface | Wire length | 300mm | |
| Pull-in Value | 10-13AT | Switching Voltage | 200VDC Max. | |
| Switching Type | NO(SPST) | Switching Current | 0.5A | |
| Material | ABS | Contact Life | >100000 times | |
| Working temperature | -20~80° | |||
|
|
|||
|
1.Magnetic Proximity switch is widely used in automation control, alarm system, output ON/OFF signal depending on the position of equipment. 2.Surface switch can be mounted with screws or double side tape , flush switch can be mounted in hole to keep covert .
3.Switching type definition:
4.Please do not knock switch when mounting. |
||||
|
