Quick Details
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4100x3100x3200
-
Weight (T):
-
12.3 T
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
11 or 15
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 24000 mm/min
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore Machinery
-
Voltage:
-
Customized
-
Marketing Type:
-
New Product
-
Spindle:
-
Taiwan danquan (bt40-8000 / bt50-6000)
-
Spindle speed:
-
6000 rpm
-
X,Y,Z travel:
-
1500x800x700mm
-
X,Y,Z feed rate:
-
24000,24000,18000
-
Worktable area:
-
1600X800mm
-
Max. Loading of worktable:
-
1500KG
-
T slot:
-
5-22X135
-
Positioning / Repositioning accuracy:
-
±0.01mm / ±0.008mm
-
Spindle nose to worktable distance:
-
BT40:190-890
-
Spindle center to column guide rail dis.:
-
855mm
Quick Details
-
Table Size (mm):
-
1600*800
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1500
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4100x3100x3200
-
Weight (T):
-
12.3 T
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
11 or 15
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 24000 mm/min
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore Machinery
-
Voltage:
-
Customized
-
Marketing Type:
-
New Product
-
Spindle:
-
Taiwan danquan (bt40-8000 / bt50-6000)
-
Spindle speed:
-
6000 rpm
-
X,Y,Z travel:
-
1500x800x700mm
-
X,Y,Z feed rate:
-
24000,24000,18000
-
Worktable area:
-
1600X800mm
-
Max. Loading of worktable:
-
1500KG
-
T slot:
-
5-22X135
-
Positioning / Repositioning accuracy:
-
±0.01mm / ±0.008mm
-
Spindle nose to worktable distance:
-
BT40:190-890
-
Spindle center to column guide rail dis.:
-
855mm

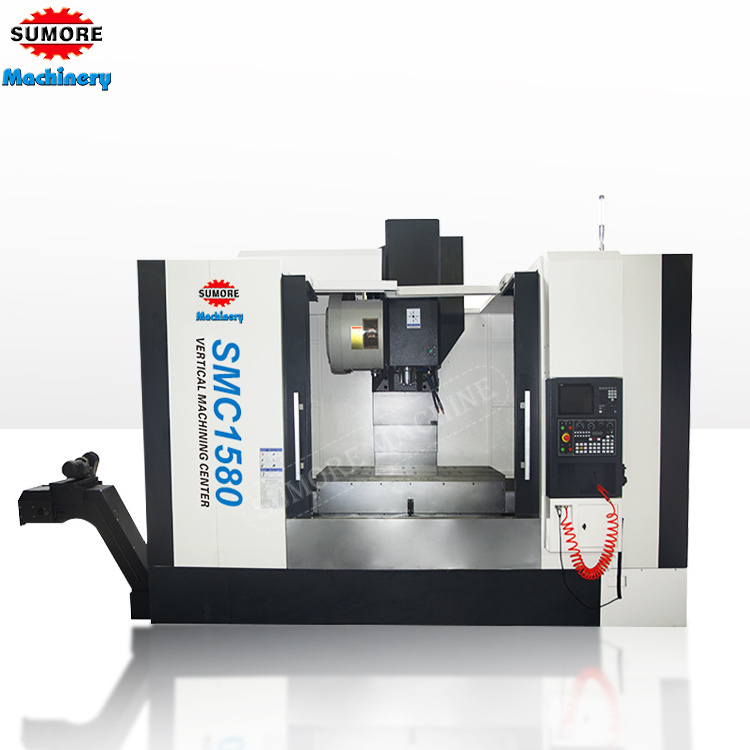

VMC1580 Vertical Machining Center CNC 3 Axis 4 Axis 5 Axis Siemens 828D/HNC/Heidenhain/GSK/FANU Control System Vertical CNC Milling Machine CNC Turning Center SMC1580 CNC Machining Center !!!
Product Overview
Product introduction and Application：
The
VMC1580 Vertical Machining Center
is x, y, Z three axis servo control semi closed loop vertical machining center. The structure and dimension are compact and reasonable, and the spindle is driven by servo motor. It can be used for machining complex parts, such as small and medium-sized parts, such as boring, reaming and so on It can also form an automatic production line for mass production to ensure the product quality and efficient production of parts.
Main configuration:
1. Resin sand casting.
2. Taiwan silver ball screw.
3. Precision lock nut.
4. BT40 / φ 150 spindle (danquan, Taiwan).
5. Supercharged cylinder made in Taiwan.
6. Special support bearing for lead screw (NSK).
7. High quality coupling.
9. Pneumatic components (Yadeke, Taiwan).
10. The balance box of nitrogen is used as the main shaft.
11. Chain chip conveyor (optional).
12. The system is equipped with knd2000mc1i as standard. 13. Disc 24 Taiwan Magazine.
14. Taiwan's upper silver line.
14. Taiwan's upper silver line.
Main structural features：
1. The base, sliding seat, worktable, column, headstock and other main foundation parts are made of high rigid cast iron structure with reinforcing ribs distributed inside the base.
2. X, y, Z three axis are steel ball rolling linear guide rail with large load, wide span and high precision.
3. High precision and high strength ball screw is used for feeding in X, y and Z directions, with high feed speed.
4. High speed,high precision and rigidity spindle unit of Taiwan famous brand is adopted, rotating speed reaches 6000rpm. 5. The spindle adopts central air blowing structure.
6. The guide rails and lead screws in X, y and Z directions are sealed to ensure the cleanness of the screw and guide rail, and ensure the transmission and motion accuracy of the machine tool.
7. Semi protective structure design is adopted for external protection of machine tool.
8. It adopts Taiwan's high-quality 24 disc tool magazine, which has the advantages of accurate tool change, short time and high efficiency.
9. The positioning accuracy can reach ± 0.01, and the repeated positioning accuracy can reach ± 0.005.
Specification
|
Model
|
SMC1580
|
|
Spindle
|
Taiwan danquan (bt40-8000 / bt50-6000)
|
|
X、Y、Z guide rail
|
Taiwan's Shanghai silver line
|
|
Screw support bearing
|
NSK
|
|
Cog belt
|
Along with spindle
|
|
Coupling
|
Taiwan
|
|
Lubrication
|
Zhejiang
|
|
Bed structure
|
High quality resin sand casting
|
|
Chain chip conveyor
|
Optional accessories
|
|
Worktable area
|
1600X800
|
|
X、Y、Z travel
|
1500X800X700
|
|
Booster cylinder
|
Along with spindle
|
|
T slot
|
5-22X135
|
|
X、Y、Z lead screw
|
5016/5016/5016
|
|
Max. Loading of worktable
|
1500KG
|
|
X、Y、Z feed rate
|
24000、24000、18000
|
|
Positioning accuracy
|
±0.01mm
|
|
Repositioning accuracy
|
±0.008mm
|
|
Spindle motor power
|
11/15KW
|
|
Distance from spindle center to column guide rail surface
|
855mm
|
|
Distance from spindle nose to worktable
|
BT40:190-890
|
|
Internal defense
|
X / Y axis stainless steel guide rail protection z-axis aluminum curtain
|
|
Net weight / Gross weight
|
12/13T
|
|
Column type
|
"Human" shape
|
