Quick Details
-
Application:
-
Door and window profile,construction and industrial profile
-
Main cylinder:
-
forged steel
-
Aluminum bar:
-
for 4 inch by 630T press
-
Heating mode:
-
natural gas,electricity,coal.etc
-
Weight of 630T press:
-
25 Tons
-
Installation period:
-
around 1 month
-
Engineers:
-
between 2 and 4 people
-
Water,electricity,gas are ready:
-
go for installation
-
Skilled workers:
-
between 2 and 3 people by the buyer
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HX
-
Product name:
-
hot sale aluminium extrusion machinery
-
Application:
-
Door and window profile,construction and industrial profile
-
Main cylinder:
-
forged steel
-
Aluminum bar:
-
for 4 inch by 630T press
-
Heating mode:
-
natural gas,electricity,coal.etc
-
Weight of 630T press:
-
25 Tons
-
Installation period:
-
around 1 month
-
Engineers:
-
between 2 and 4 people
-
Water,electricity,gas are ready:
-
go for installation
-
Skilled workers:
-
between 2 and 3 people by the buyer

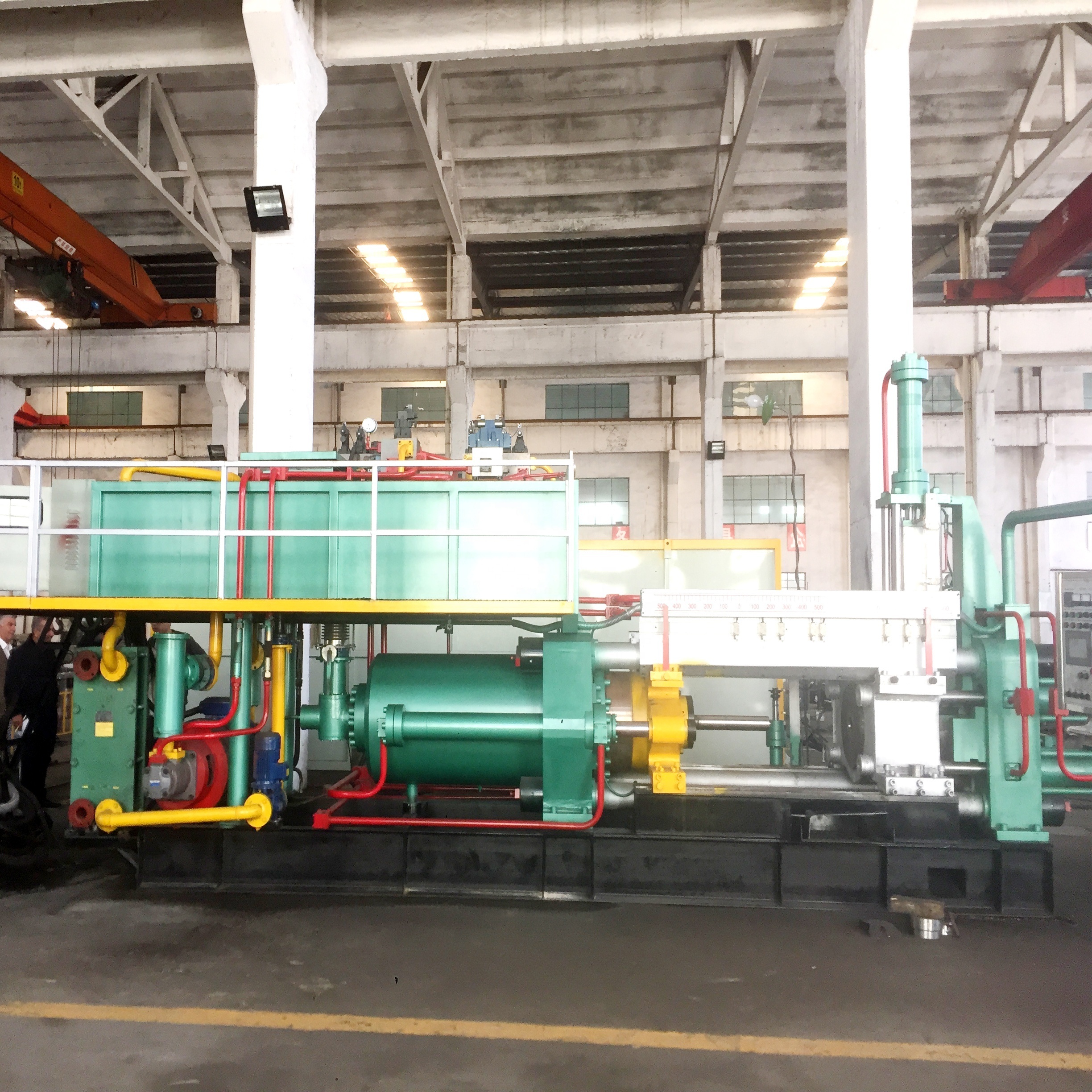

hot sale aluminium extrusion machinery
|
NO . |
Item |
Type |
QT Y |
|
1 |
Hydraulic system working pressure |
21Mpa |
|
|
2 |
Extrusion Pressure |
Ma in Cylinder 633T |
|
|
Lateral Cylinder 51.5T |
|
||
|
3 |
Lateral cylinder return force |
16T |
|
|
4 |
L ocking force of container |
51T |
|
|
5 |
Shear pressure |
32T |
|
|
6 |
Extrusion working speed ( maximum ) |
8.8mm/s |
|
|
7 |
Master plunger fast forwarding speed |
315mm/s |
|
|
8 |
Master plunger fast backward speed |
348mm/s |
|
|
9 |
Closing speed of container |
136mm/ s |
|
|
10 |
Open speed of container |
83mm /s |
|
|
11 |
Shear d own speed |
216mm/s |
|
|
12 |
Shear up speed |
442mm /s |
|
|
13 |
The inner hole range of extrusion tube |
ID Φ 85-115 |
|
|
L 500mm |
|
||
|
14 |
The dimension range of aluminum bar |
ID Φ80-Φ110 |
|
|
L 450mm |
|
||
|
15 |
The total power of motor |
55KW |
|
|
16 |
Heating power for extrusion tube |
T 1.2KW*15=18KW |
|
|
17 |
Operation Mode |
Manual or automatic single stoke |
|
|
18 |
External dimension ( L*W*H) |
7 m *2.8 m *3.2 m |
