Quick Details
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
according to customer
-
Weight:
-
KG
-
Product name:
-
Fully Aerosol Filling Machine with Filling Spray Paint
-
Material:
-
SUS304/316
-
SPEED:
-
2000-3000cans/hour
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Liquid filling volume:
-
10-500ml customizable
-
No.:
-
2021090905
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Other, Water
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
according to customer
-
Weight:
-
KG
-
Product name:
-
Fully Aerosol Filling Machine with Filling Spray Paint
-
Material:
-
SUS304/316
-
SPEED:
-
2000-3000cans/hour
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Liquid filling volume:
-
10-500ml customizable
-
No.:
-
2021090905
| Technical parameter | |
|
Valve |
1” |
|
Workable Can Diameter and Height |
φ38-φ65mm 70-330mm |
|
Filling Accuracy |
≤±0.03Mpa |
|
Sealing Accuracy |
≤3% |
|
Liquid Accuracy |
≤±1% |
|
Production Capability |
1800-2400cans/h |
|
Filling Capacity |
30~900ml |
|
Working air Pressure |
0.6-0.8Mpa |
|
Max. air Consumption |
4-5m3/min |
|

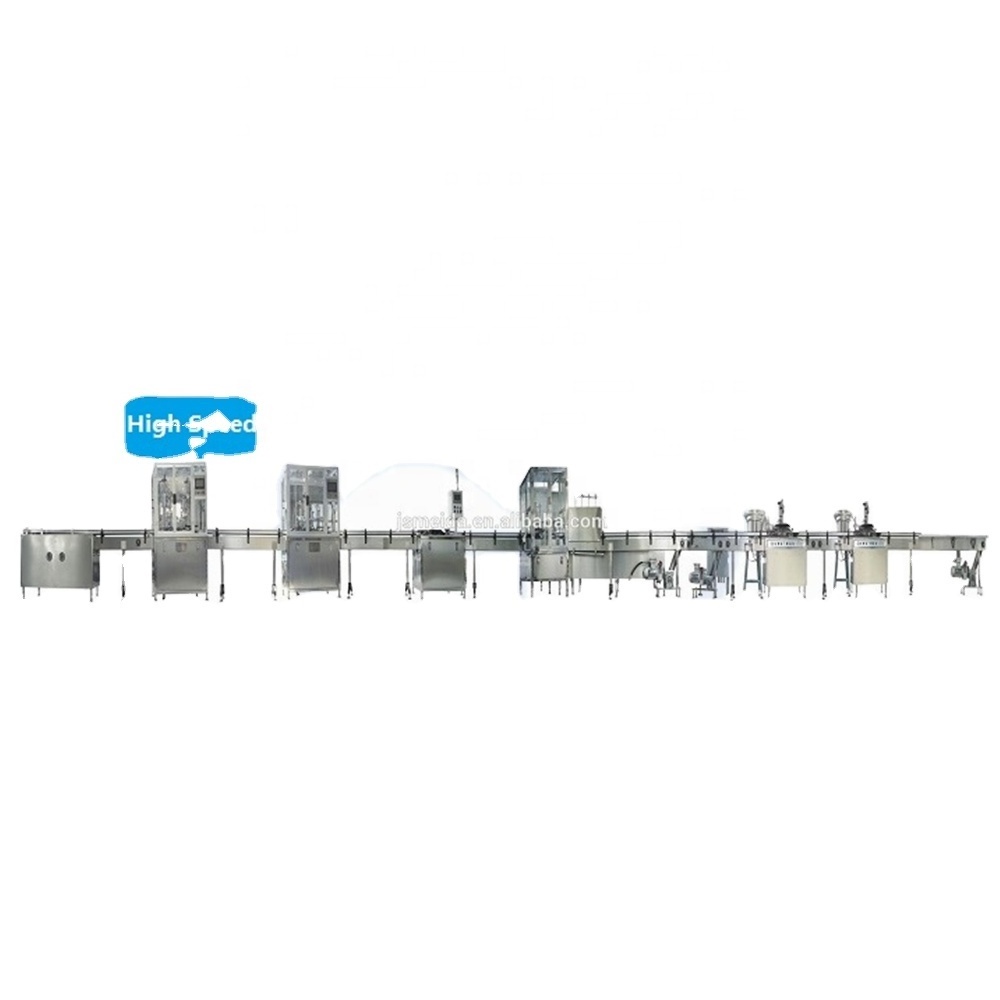

1 |
Automatic Can Arranging Machine |
|
2 |
Two heads Automatic Inflating & Crimping Machine |
|
3 |
Four Heads Automatic Filling Machine |
|
4 |
Automatic Weighting Machine |
|
5 |
Automatic Water-bath Leak Tester |
|
6 |
Coding Belt |
|
7 |
Valve Actuator presser |
|
8 |
Can presser |
|
9 |
Packing Table |
Benefits of Bag on Valve Packaging
The unique Bov system is developed to not only produce a superior spray dispensing system, but to reduce our ecological footprint through a sustainable packaging process. Compared to traditional aerosol spray technology (and other alternative packaging) BoV aerosols have several benefits, for manufacturers, consumers as well as the environment.
Safety and environmental benefits of BoV aerosols
1. No need for flammable propellants
2. Hygienic and sterilisable
3. Used with eco-friendly air or nitrogen
4. Less need for preservatives
Consumer benefits of BoV aerosols
1. Up to 100% product emptying
2. Longer shelf life with less preservatives
3. Even and controlled spraying pattern for optimal result
4. No pumping motion needed
5. Can be used at all angles
6. Reduced spray noise
7. Less-chilling product discharge
Production and distribution benefits of Bov aerosols
1. Longer shelf life for oxygen-sensitive products
2. Effective filling process
3. Suitable for both liquid and viscous products
4. Can be used with standard actuators and aerosol cans.
