Quick Details
-
Model Number:
-
KCEUPSU-76
-
Cable:
-
12v 1a power supply
-
Input voltage:
-
240V, AC100~240V
-
Cable length:
-
1m, 2m, customized
-
Output plug:
-
5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm or others
-
AC leakage Current:
-
0.25mA Max .At 240V ac input
-
Over voltage protection:
-
120% min
-
Over current protection:
-
120% min
-
Short circuit protect:
-
Auto Recovery
-
Safety approval:
-
FCC CE
-
SKYPE:
-
heathl123
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHENZHEN KUNCAN
-
Model Number:
-
KCEUPSU-76
-
Cable:
-
12v 1a power supply
-
Input voltage:
-
240V, AC100~240V
-
Cable length:
-
1m, 2m, customized
-
Output plug:
-
5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm or others
-
AC leakage Current:
-
0.25mA Max .At 240V ac input
-
Over voltage protection:
-
120% min
-
Over current protection:
-
120% min
-
Short circuit protect:
-
Auto Recovery
-
Safety approval:
-
FCC CE
-
SKYPE:
-
heathl123

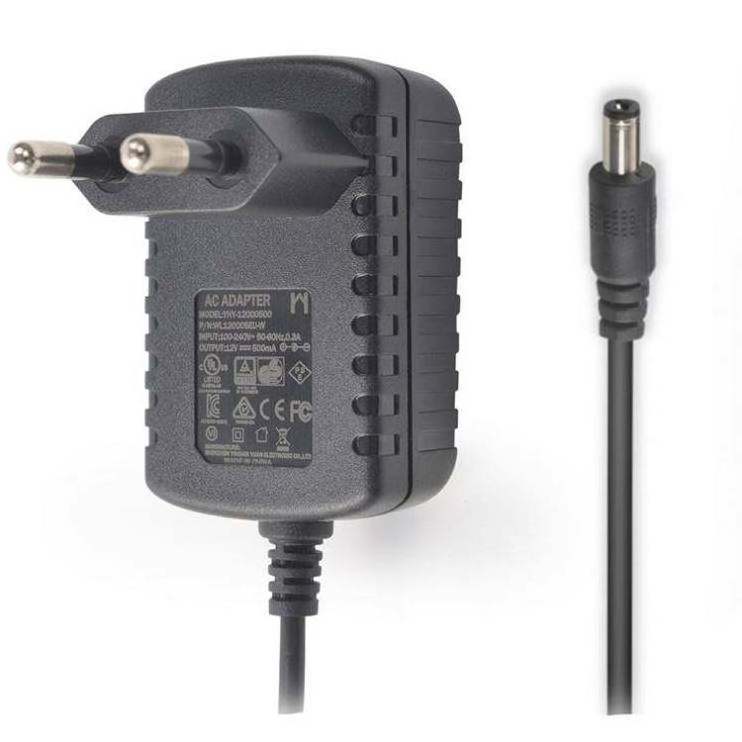

European AC DC 5v9v 10v12V 24v500ma-3a Power Adapter
Product Description
| Input | Input voltage | AC 100~240V |
| Variation Frequency | 50-60Hz | |
| Input frequence | 50~60Hz | |
| Output | Output voltage | 12v |
| Output current | 2A | |
| Output power | 24W | |
| Input plug types |
EU/ US /UK /AUS /South Korea /South African Plugs
|
|
| Out plug types | DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc | |
| DC jack size | 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm .etc | |
| Safety protection | Over voltage protection | 120% min |
| Over current protection | 120% min | |
| Short circuit protection | auto recovery | |
| Over hot protection | auto recovery | |
| Electronic characteristics | Operating Temperature | -40~50°C |
| Storage Temperature |
-40 to +85
°C
|
|
| Humidity | 10%~95%RH | |
| Efficiency | 80% | |
| Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv | |
| Turn-on Delay Time | 3 second max | |
| Overshoot at Turn-on | 10% max when turn on or off | |
| AC leakage Current | 0.25mA max at AC 240V voltage | |
| Load Regation | ±5% | |
| Line Regation | ±5% | |
| High-Voltage test | Primary to secondary: 3 kV / 5mA 60S | |
| Drop Test | 0.75m drop test, 6 times | |
| Burn-In Test | 100% load, 5hours | |
| Application | CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc | |
| Safe Certificate | CE ROHS FCC CB BS SAA C-tick PSE KC | |
