Quick Details
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Audley
-
Voltage:
-
AC 220V/110
-
Dimensions(L*W*H):
-
440*220*177cm
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product
-
Ink type:
-
UV LED curing ink
-
Printhead:
-
G5/G6
-
Accepted Material's height:
-
15CM max
-
Ink colors:
-
Dual C, M, Y, K,LC,LM / C, M, Y, K,LC,LM+W
-
Lamp type:
-
LED Lamp (saving energy and environmental friendly)
-
Photo format:
-
BMP TIFF JPG EPS PDF CAD
-
Printing speed:
-
30 sqm/h(4 heads)
-
Applicable industry:
-
glass, wooden board, metal board, ceramic, leather, pvc, acrylic etc.
-
Color:
-
CMYKWWVV
-
key words:
-
AUDLELY uv printer
-
Certification:
-
CE,ISO
Quick Details
-
Print Dimension:
-
2.5*1.3m
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Audley
-
Voltage:
-
AC 220V/110
-
Dimensions(L*W*H):
-
440*220*177cm
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product
-
Ink type:
-
UV LED curing ink
-
Printhead:
-
G5/G6
-
Accepted Material's height:
-
15CM max
-
Ink colors:
-
Dual C, M, Y, K,LC,LM / C, M, Y, K,LC,LM+W
-
Lamp type:
-
LED Lamp (saving energy and environmental friendly)
-
Photo format:
-
BMP TIFF JPG EPS PDF CAD
-
Printing speed:
-
30 sqm/h(4 heads)
-
Applicable industry:
-
glass, wooden board, metal board, ceramic, leather, pvc, acrylic etc.
-
Color:
-
CMYKWWVV
-
key words:
-
AUDLELY uv printer
-
Certification:
-
CE,ISO
Product Description
Import Hiwin Guide rail and slider
Anti-noise aluminum guideline ,very durable and stable.
Support the combination of 8 colors.
Present the natural color.
Intelligent i
nk alarm system
The device will alarm when the ink level is below the warning line.
Intelligent Anti-collision device
is adopted to protect the printing heads
|

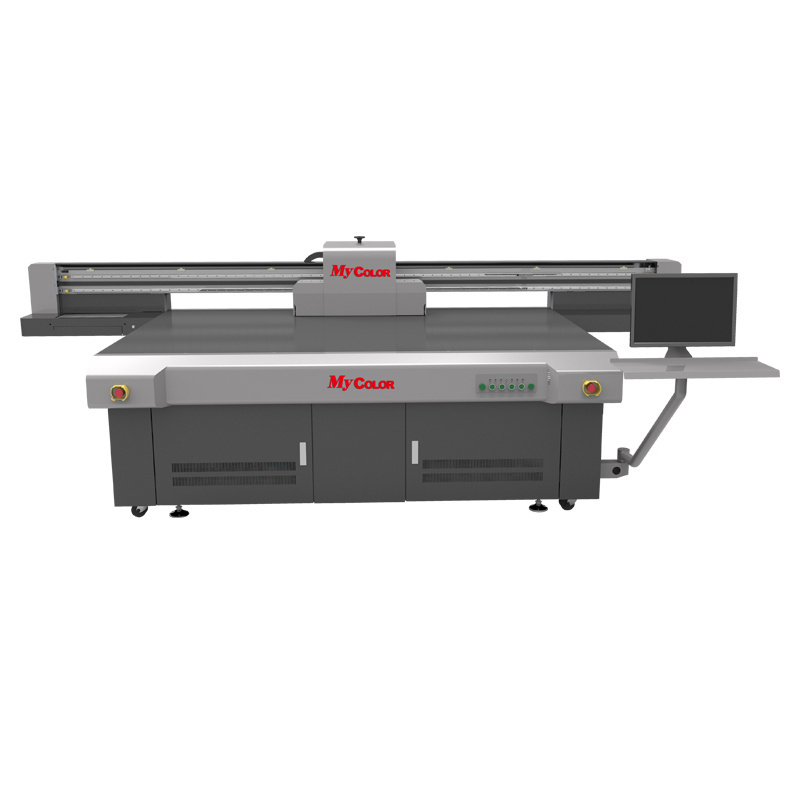

UV9060 printer
|
|
|
|
Max printing size
|
2.5*1.3 m
|
|
|
Max printing resolution
|
2440dpi
|
|
|
Printhead
|
Ricoh G5
|
|
|
UV ink color
|
CMYKW V
|
|
|
Drying system
|
UV Led
|
|
|
Max printing thickness
|
10 cm
|
|
|
Ink consumption
|
15-20ml/ sqm
|
|
|
Cooling Methodcoldly
|
Water cycling Cooling system
|
|
|
Lamp type
|
LED Lamp (saving energy and environmental friendly)
|
|
|
Ink system
|
CISS built inside
|
|
|
Height adjustment
|
Automatic with sensor.
|
|
|
Driving power
|
220 V
|
|
|
Working environment
|
10-35C , Humidity : 15% -20%
|
|
|
suction system
|
Equipped
|
|
|
Image format
|
Tiff, Bmp , Jpg,Eps,Pdf,CAD
|
|
|
Rip software
|
photoprint, Onyx
|
|
|
Printing material
|
Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcela
|
|
|
Printing speed
|
25 m
2
/h (4 pass )
20 m
2
/h ( 8 pass )
12 m
2
/h ( 12 pass )
|
|
|
Machine weight
Packing weight
|
850kg
1000 kg
|
|
|
Packing size
|
440*220*170 cm
|
|
Printing Sample Show
EXHIBITION SHOW
