Quick Details
-
Product name:
-
HDMI Multiviewer
-
Keyword:
-
4x1 HDMI Multiviewer
-
Resolution:
-
1920*1080@60Hz
-
Input:
-
4 HDMI Input
-
Output:
-
1 Output
-
Power supply:
-
DC 12V 2A
-
Material:
-
Metal
-
Feature:
-
LED indicator
-
Control Methods:
-
Button, IR Remote
-
Picture Display:
-
Full-screen, Multi-screen, and Picture Out Picture
Quick Details
-
Model Number:
-
HV-MV-HD1-401
-
Brand Name:
-
HENVISION
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Multiviewer
-
Keyword:
-
4x1 HDMI Multiviewer
-
Resolution:
-
1920*1080@60Hz
-
Input:
-
4 HDMI Input
-
Output:
-
1 Output
-
Power supply:
-
DC 12V 2A
-
Material:
-
Metal
-
Feature:
-
LED indicator
-
Control Methods:
-
Button, IR Remote
-
Picture Display:
-
Full-screen, Multi-screen, and Picture Out Picture
Product Description

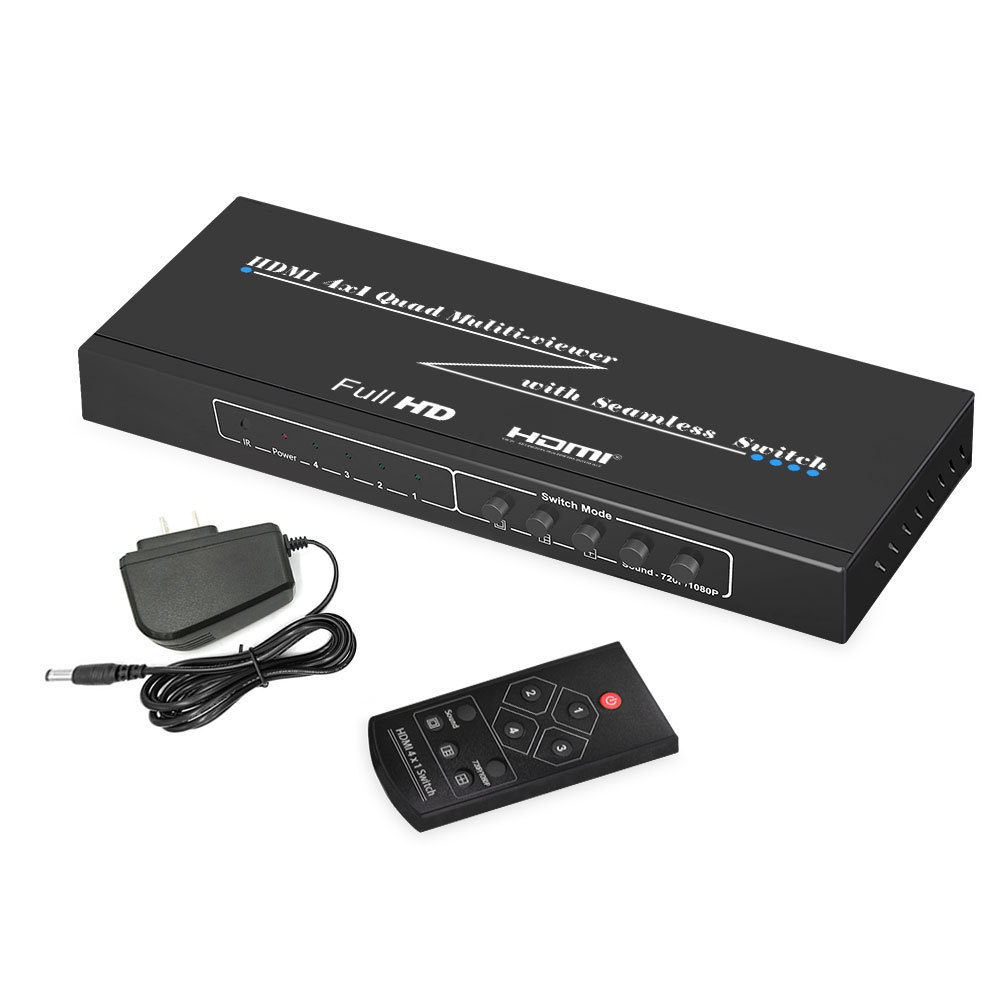

1080P screen multiviewer 4x1 HD-MI switcher
HV-MV-HD1-401
HV-MV-HD1-401 is a High performance 4 by 1 Quad Multiviewer with seamless switch. It supports four High definition input sources display on one screen, and have three multi-view effect mode. As a switcher, it can alse seamlessly switch the four HDMI inputs freely. It can be controlled by the front button or IR contrller.
Features
:
* Supports 4 HDMI input port;
* Supports 1 HDMI output port;
* Compliant with HDMI 1.3a, HDCP 1.2;
* Supports multiplexed HDMI 4 in and 1 out;
* Supports up to 1080p High Definition resolution;
* Supports 4x1 Quad Multiviewer and seamless switch;
* Supports 720p/1080p output resolution;
* Supports audio switch;
* Supports fast switching;
* Supports Equalizer TMDS Output: 25MHz~225MHz TMDS clock;
* Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC;
* Supports 1080p input up to 15 meters and output to 20 meters（Cable standard AWG24）;
* Inputs can be switched with the IR remote controller, alse can be controlled by built-in button;
* Extend the transmission distance and improve transmission signal;
* Compatible with DVI through a HDMI to DVI adapter;
* Supports hot plug-and-play;
* LED indicate signal and power mode;
* No loss of quality;
* Installs in minutes;
* Supports 1 HDMI output port;
* Compliant with HDMI 1.3a, HDCP 1.2;
* Supports multiplexed HDMI 4 in and 1 out;
* Supports up to 1080p High Definition resolution;
* Supports 4x1 Quad Multiviewer and seamless switch;
* Supports 720p/1080p output resolution;
* Supports audio switch;
* Supports fast switching;
* Supports Equalizer TMDS Output: 25MHz~225MHz TMDS clock;
* Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC;
* Supports 1080p input up to 15 meters and output to 20 meters（Cable standard AWG24）;
* Inputs can be switched with the IR remote controller, alse can be controlled by built-in button;
* Extend the transmission distance and improve transmission signal;
* Compatible with DVI through a HDMI to DVI adapter;
* Supports hot plug-and-play;
* LED indicate signal and power mode;
* No loss of quality;
* Installs in minutes;
Specification :
|
Max Single Link Range
|
1920x1080@60Hz
|
|
|
|
|||
|
HDMI version
|
HDMI 1.3 , HDCP 1.2
|
|
|
|
|||
|
HDMI input Resolution
|
480i/480p/576i/576p/720p/1080i/1080p
|
|
|
|
|||
|
HDMI output resolution
|
720p/1080p/60Hz
|
|
|
|
|||
|
Max bandwidth
|
225MHz
|
|
|
|
|||
|
Max bandrate
|
6.7Gbps
|
|
|
|
|||
|
1080p input cable distance
|
≦ 15m (AWG24 standard HDMI cable)
|
|
|
|
|||
|
1080p output cable distance
|
≦ 20m (AWG24 standard HDMI cable)
|
|
|
|
|||
|
Max working current
|
1A
|
|
|
|
|||
|
Operating Temperaturer
|
-15℃ to +55℃
|
|
|
|
|||
|
Operating Humidity range
|
5% to 90% (No Condensation)
|
|
|
|
|||
|
Dimension(LxWxH)
|
200x95x20mm
|
|
|
|
|||
|
Weight
|
460g
|
|
|
|
|||
