Quick Details
-
Product name:
-
UKTerminal block
-
Country of origin:
-
China, Hubei
-
Color:
-
Gray / Customized
-
Material:
-
PA, Brass
-
Voltage:
-
450V
-
Current:
-
24A
-
Wiring Type:
-
Loosen the screw
-
Wire Range:
-
0.75-2.5mm2
-
Working Temp:
-
-40° to 105°C
-
Packing:
-
100pcs/box
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Ashan
-
Model Number:
-
UK-2.5B
-
Product name:
-
UKTerminal block
-
Country of origin:
-
China, Hubei
-
Color:
-
Gray / Customized
-
Material:
-
PA, Brass
-
Voltage:
-
450V
-
Current:
-
24A
-
Wiring Type:
-
Loosen the screw
-
Wire Range:
-
0.75-2.5mm2
-
Working Temp:
-
-40° to 105°C
-
Packing:
-
100pcs/box
Related Proudcts
SPECIALIZED PRODUCTS RECOMMEND
(Please Click
the picture
to know more )
Product Description
|

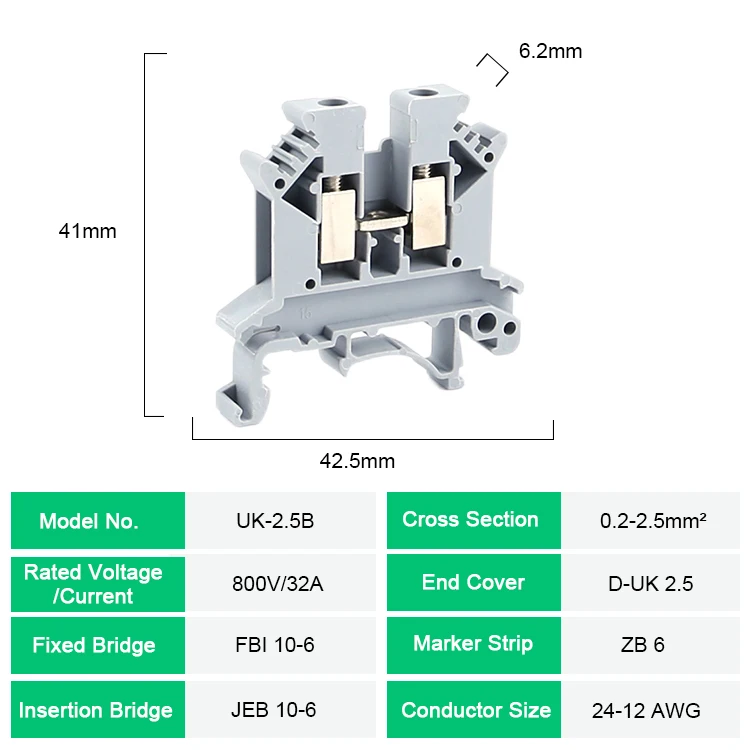

UK Series Terminal Block
|
|
|
|
|
||||
|

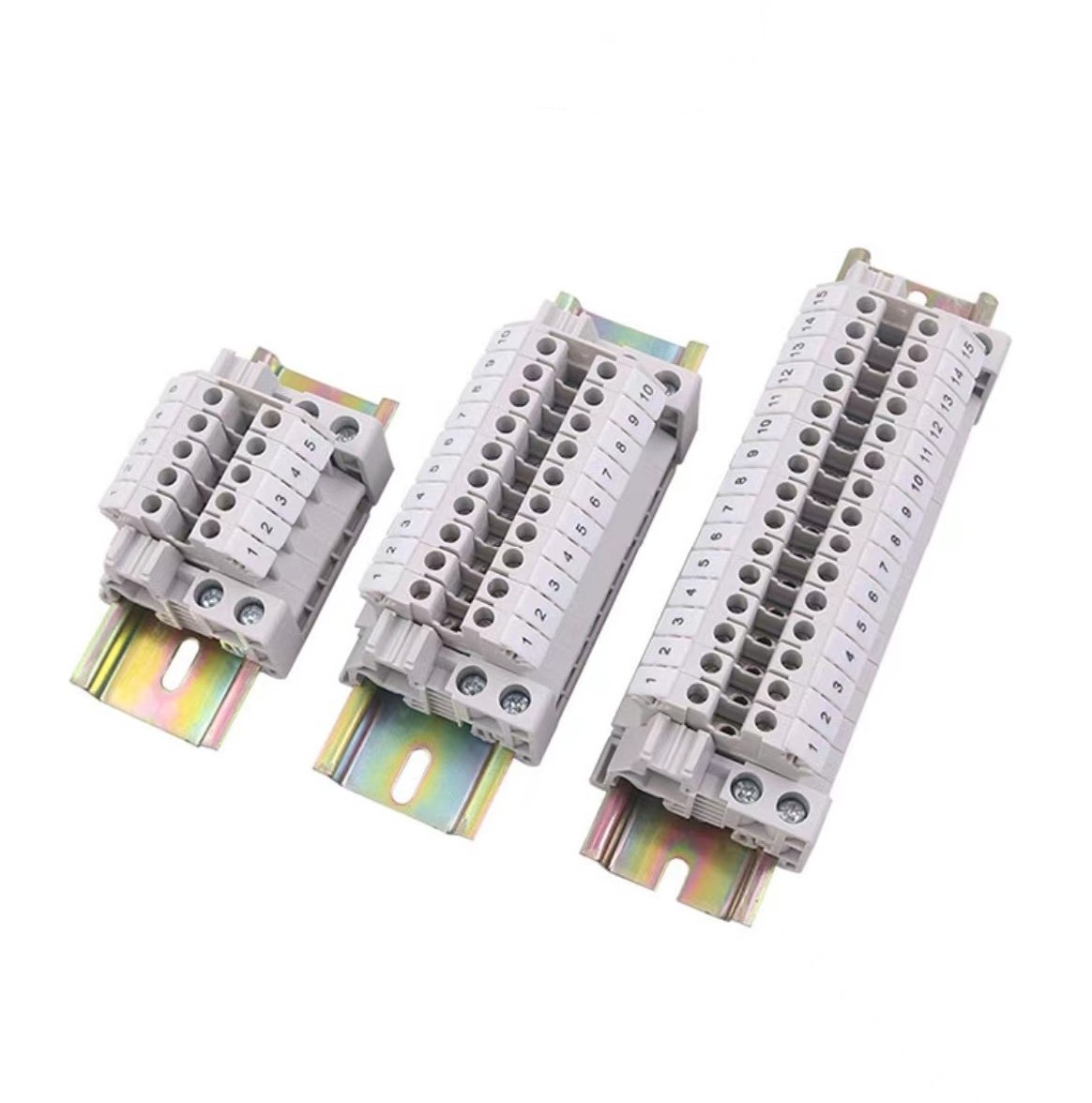

1. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.

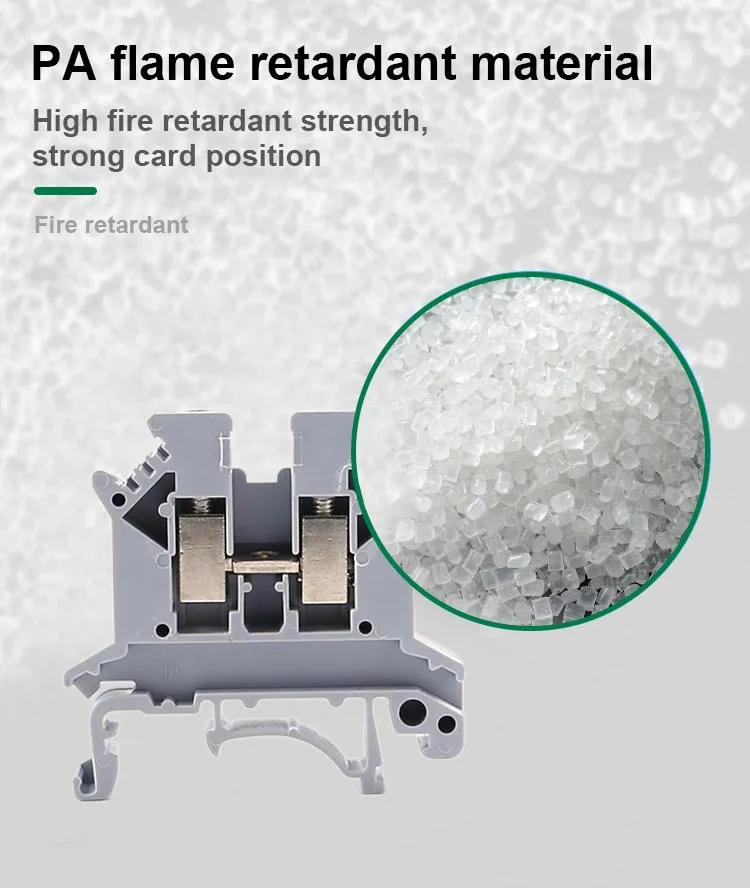

2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out. 3. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack. 4. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections. 5. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electical property, and super flexibility. 6. Two ends on the top with white marking system to realize uniformed sign. |
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
