Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
1 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
9usemachine
-
Voltage:
-
110-440V
-
Dimension(L*W*H):
-
600*550*1250mm
-
Weight (KG):
-
280 KG
-
Name:
-
Universal Grinder
-
Function:
-
Spice Herb Food Chemical Powder Grinding
-
Capacity:
-
10-2000kg/h
-
Fineness:
-
20-120 MESH
-
Usage:
-
Make Super Fine Powder
-
Application scope:
-
Chemical Cosmetic Food
-
Keyword:
-
Flour Mill Machinery Corn Wheat
-
Suitable for:
-
Chemical Powder Grinder Mill
Quick Details
-
Output (kg/h):
-
60 - 150 kg/h
-
Feeding Size (mm):
-
1 - 6 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
1 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
9usemachine
-
Voltage:
-
110-440V
-
Dimension(L*W*H):
-
600*550*1250mm
-
Weight (KG):
-
280 KG
-
Name:
-
Universal Grinder
-
Function:
-
Spice Herb Food Chemical Powder Grinding
-
Capacity:
-
10-2000kg/h
-
Fineness:
-
20-120 MESH
-
Usage:
-
Make Super Fine Powder
-
Application scope:
-
Chemical Cosmetic Food
-
Keyword:
-
Flour Mill Machinery Corn Wheat
-
Suitable for:
-
Chemical Powder Grinder Mill
Smart machine universal crusher protein powder bean pulverizer machine
What Features of our bean pulverizer machine ?
The universal pulverizer utilizes the high-speed relative movement of the movable toothed disk and the fixed toothed disk to crush the pulverized objects through the combined effects of tooth impact, friction and material impact. This machine is simple in structure, sturdy, stable in operation, and has good crushing effect. The crushed material can be directly discharged from the main machine's grinding chamber, and the particle size can be obtained by changing mesh screens with different apertures. In addition, the machine is all stainless steel. made the production of foods, and chemicals more in line with national standards.
What Specifications of our bean pulverizer machine ?
|
Model |
15B |
20B |
30B |
40B |
60B |
80B |
100B |
|
Mesh size |
2 0-120mesh |
||||||
|
Voltag e |
380V/50 HZ (Can be change voltage) |
||||||
|
Capacity(kg/h) |
10-50 |
60-150 |
100-400 |
160-1000 |
500-1200 |
1000-5000 |
2000-8000 |
|
Speed (r/min) |
6000 |
4500 |
3800 |
3400 |
2800 |
2000 |
1500 |
|
Materials size (mm) |
<6 |
<6 |
<6 |
<10 |
<15 |
<18 |
<20 |
|
Power(kw) |
2.2 |
4 |
7.5 |
11 |
18.5 |
37 |
55 |
|
Weight(kg) |
100 |
280 |
350 |
550 |
680 |
1500 |
2500 |
|
Dimension (mm) |
550*400*850 |
550*600*1250 |
600*700*1450 |
800*900*1800 |
9 00*900*1880 |
1100*950*1960 |
1350*1000*2100 |
What Applications of our bean pulverizer machine ?
The universal crusher can crush plant roots, stems, leaves, flowers, fruits, bark, grain, wheat bran, ground taro, suanma, corn cob, grain, shrimp skin, seaweed, dehydrated vegetables, dried ginger, garlic slices , Seasonings, jujubes, plastics, chemical raw materials, mica, graphite, bentonite, perlite, charcoal, activated carbon, cellulose, tea, soybean meal, cowhide, sheepskin, nut shells, etc. (Note: flammable and explosive materials, wet materials cannot be crushed and processed)

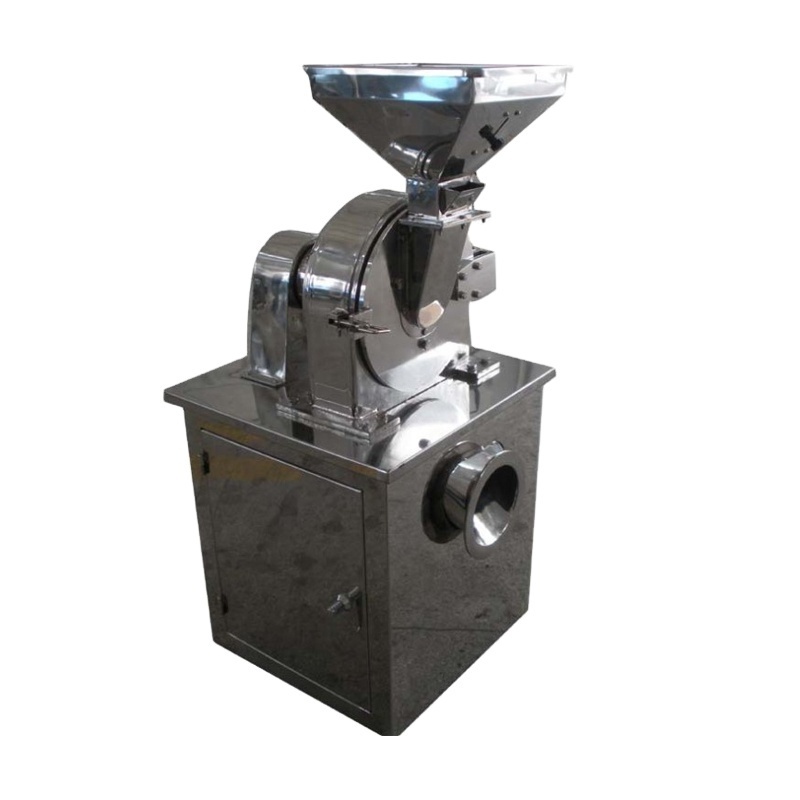

Product Photos
We also have WFJ series superfine Pulverizer,
Please feel free to contact us at any time!!
Company View
Trade Terms:
- Payment: T/T, Western Union, MoneyGram; 30% deposit; 70% balance before deliverying.
- Delivery Time: 1-10 days
- MOQ: 1pcs
- Package Informations: Standard export wooden case .
