Quick Details
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BJPX-SS90A
-
Product Name:
-
Salt Spray Test
-
Temp Range:
-
Test Chamber: NSS ACSS 35±1℃, CASS 50±1℃
-
Test Chamber Capacity:
-
270L
-
Test Chamber Humidity:
-
>85%
-
Salt Water Temp:
-
NSS ACSS 35±1℃, CASS 50±1℃
-
Salt Tank Capacity:
-
25L
-
Brine Concentration:
-
5% NaCl solution or 0.26gCuCl2 was added to 5% NaCl solution per liter
-
Saturated Air Pressure:
-
1.00±0.01kgf/cm2
-
Spray:
-
1.0~2.0ml/80cm2/h
-
Optional Accessory:
-
Touch screen
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BJPX-SS90A
-
Product Name:
-
Salt Spray Test
-
Temp Range:
-
Test Chamber: NSS ACSS 35±1℃, CASS 50±1℃
-
Test Chamber Capacity:
-
270L
-
Test Chamber Humidity:
-
>85%
-
Salt Water Temp:
-
NSS ACSS 35±1℃, CASS 50±1℃
-
Salt Tank Capacity:
-
25L
-
Brine Concentration:
-
5% NaCl solution or 0.26gCuCl2 was added to 5% NaCl solution per liter
-
Saturated Air Pressure:
-
1.00±0.01kgf/cm2
-
Spray:
-
1.0~2.0ml/80cm2/h
-
Optional Accessory:
-
Touch screen

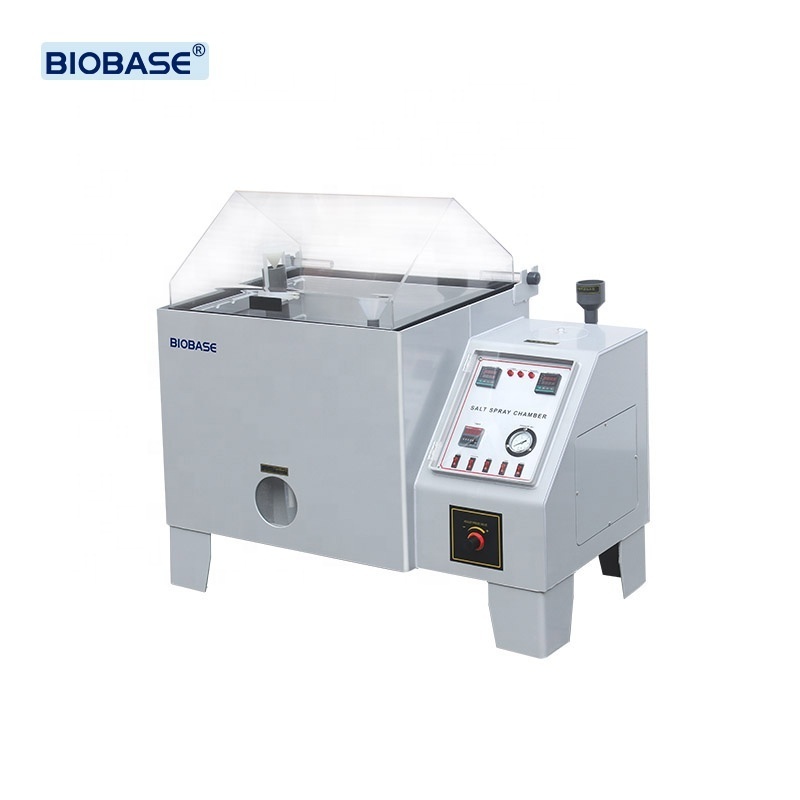

Salt spray test
BJPX-SS90A
Product Description
Introduction:
Salt spray test machine, is for a variety of materials surface treatment, including coatings, electroplating, organic and inorganic film, anode treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, thus establishing the quality of the product.
Salt spray test machine, is for a variety of materials surface treatment, including coatings, electroplating, organic and inorganic film, anode treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, thus establishing the quality of the product.
Feature:
* Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.
* PVC plate, special treatment corrosion resistance, plastic steel V-shaped frame and stainless steel pipe Angle.
* With low water level, over temperature safety protection device, overload short circuit protection.
* Adopt automatic/manual water adding system, with automatic/manual water replenishment function when the water level is insufficient.
* Test time can be set multi-functional, with power failure memory function.
* Temperature controller using digital display, PID control.
* The test refill bottle adopts hidden type with water level perspective window, which is easy to clean and not easy to break.
Specification
|
Model
|
BJPX-SS60A
|
BJPX-SS90A
|
BJPX-SS120A
|
BJPX-SS160A
|
|||
|
Temp Range
|
Test Chamber: NSS ACSS 35±1℃, CASS 50±1℃
Saturated Air Barrel: NSS ACSS 47±1℃, CASS 63±1℃ |
|
|
|
|||
|
Test Chamber Capacity
|
108L
|
270L
|
480L
|
800L
|
|||
|
Test Chamber Humidity
|
＞85%
|
|
|
|
|||
|
Salt Water Temp
|
NSS ACSS 35±1℃, CASS 50±1℃
|
|
|
|
|||
|
Salt Tank Capacity
|
15L
|
25L
|
40L
|
|
|||
|
Brine Concentration
|
5% NaCl solution or 0.26gCuCl2 was added to 5% NaCl solution per liter
|
|
|
|
|||
|
Saturated Air Pressure
|
1.00±0.01kgf/cm2
|
|
|
|
|||
|
Spray
|
1.0~2.0ml/80cm2/h(The samples were collected for at least 16 hours and averaged.)
|
|
|
|
|||
|
Optional Accessory
|
Touch screen
|
|
|
|
|||
|
Power Supply
|
220V 50/60Hz 1.2KW single phase
|
|
|
|
|||
|
Test Chamber Size
|
600*450*400mm
|
900*600*500mm
|
1200*1000*500mm
|
1600*1000*500mm
|
|||
|
External Size
|
1070*600*1180mm
|
1410*880*1280mm
|
1900*1100*1400mm
|
2300*1300*1400mm
|
|||
