Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIGN-CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3150*2100*1650mm
-
Power (kW):
-
6
-
Weight (KG):
-
1200
-
Product name:
-
CNC Router With Side Rotary Axis
-
X, Y Working size:
-
1300*2500mm
-
Table Surface:
-
Vacuum table
-
X, Y Structure:
-
25mm square rails and helical rack
-
Z Structure:
-
25mm Square Guide Rail and TBI Ball Screw
-
Max. Rapid Travel Rate:
-
33000mm/min
-
Max. Working Speed:
-
25000mm/min
-
Spindle Power:
-
3.2 KW water cooling spindle
-
Rotary:
-
Diameter 320mm with four claws
-
Certification:
-
CE Certification
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIGN-CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3150*2100*1650mm
-
Power (kW):
-
6
-
Weight (KG):
-
1200
-
Product name:
-
CNC Router With Side Rotary Axis
-
X, Y Working size:
-
1300*2500mm
-
Table Surface:
-
Vacuum table
-
X, Y Structure:
-
25mm square rails and helical rack
-
Z Structure:
-
25mm Square Guide Rail and TBI Ball Screw
-
Max. Rapid Travel Rate:
-
33000mm/min
-
Max. Working Speed:
-
25000mm/min
-
Spindle Power:
-
3.2 KW water cooling spindle
-
Rotary:
-
Diameter 320mm with four claws
-
Certification:
-
CE Certification

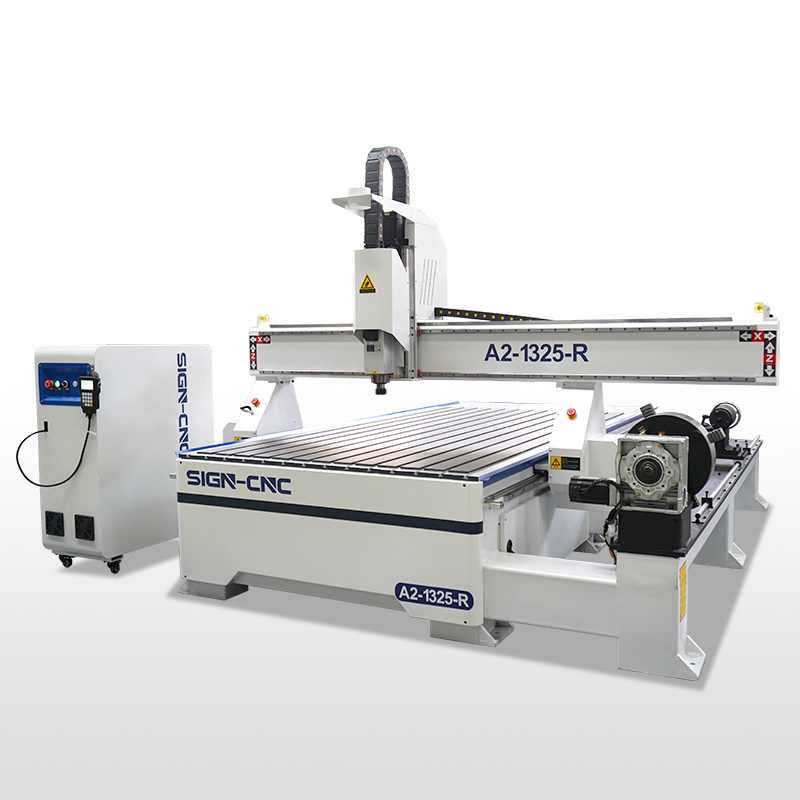

1325 Size DSP A11 Control System 4axis CNC Carving Wood Rotary Machine With CNC Router Rotating Axis
Product Overview
PRODUCT CONFIGURATION
* 20mm square guide rails
* DSP control system
* Heavy duty machine bed and large steel gantry, stable and high precision
* 6.0kw air cooling or air cooling spindle
* Vacuum with T-slot working table.
* Y-axis dual servo motor drive, provide a strong impetus to ensure stable work
* Perfect oil lubrication system makes maintenance much easier
* Tool sensor to adjust the distance from materials to cutter automatically.
* Breakpoint memory, can continue to work after power off & breaking knife.
* And electric limit switch on all axis, make sure machine running well.
* DSP control system
* Heavy duty machine bed and large steel gantry, stable and high precision
* 6.0kw air cooling or air cooling spindle
* Vacuum with T-slot working table.
* Y-axis dual servo motor drive, provide a strong impetus to ensure stable work
* Perfect oil lubrication system makes maintenance much easier
* Tool sensor to adjust the distance from materials to cutter automatically.
* Breakpoint memory, can continue to work after power off & breaking knife.
* And electric limit switch on all axis, make sure machine running well.
PRODUCT SPECIFICATIONS
|
Item
|
Data
|
|
Model
|
A2-1325-R
|
|
X, Y Working size
|
1300*2500mm
|
|
Z feed Height
|
300mm
|
|
Table Surface
|
Vacuum table with T-slot table, 5.5kw vacuum pump
|
|
Vacuum pump
|
5.5kw
|
|
X, Y Structure
|
Rack and Pinion, Taiwan Linear Square Guide Rail
|
|
Z Structure
|
20mm Linear Square Guide Rail and Ball Screw
|
|
Max. Power Consumption
|
(Without spindle) 2.0Kw
|
|
Max. Rapid Travel Rate
|
33000mm/min
|
|
Max. Working Speed
|
25000mm/min
|
|
Spindle Power
|
6kw air cooling spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Motors
|
AC Servo motor and driver with reducer
|
|
Working Voltage
|
AC380V 50/60Hz
|
|
Command Language
|
G code
|
|
Control System
|
DSP A18
|
|
X,Y,Z repositioning Accuracy
|
±0.01mm
|
|
X,Y Resolution
|
<0.01mm
|
|
Software
|
Artcam
|
|
Running Temperature
|
0 degree - 45 degree
|
|
Relative Humidity
|
30% - 75%
|
|
Optional Parts
|
Rotary
|
|
Warranty
|
Two years
|
Application and samples
Furniture industry:
Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate abinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment.
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment.
Die Industry:
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic
sheeting,PVCpipe, wooden planks and other non-metallic and stone mold.
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box.Electrical industry: PVB circuit board, insulation material, LED display screen.
Relief Sculpture and 3D Engraving & Cylindrical object.
sheeting,PVCpipe, wooden planks and other non-metallic and stone mold.
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box.Electrical industry: PVB circuit board, insulation material, LED display screen.
Relief Sculpture and 3D Engraving & Cylindrical object.
