It is also designed to use AC 100V-240V electricity as power source with the additional NPS-2406U AC-DC Power Supply that is sold separately.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Type:
-
swing gate opener, Swing Gate Opener
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lockmaster
-
Model Number:
-
EDN365
-
Max. Gate Weight:
-
660LBS(300KGS) automatic gate opener
-
Certificate:
-
CE ISO9001:2008
-
Open(close) speed:
-
5/8" (16mm/s)
-
Frequency:
-
433.92MHz
-
Motor:
-
DC24V 50W
-
Input Voltage:
-
AC110V-240V /50 60HZ
-
Package:
-
Custom Packing Welcomed
-
Material:
-
Aluminum alloy and reinforced nylon
-
Rod moving length:
-
385-485mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Villa
-
Type:
-
swing gate opener, Swing Gate Opener
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lockmaster
-
Model Number:
-
EDN365
-
Max. Gate Weight:
-
660LBS(300KGS) automatic gate opener
-
Certificate:
-
CE ISO9001:2008
-
Open(close) speed:
-
5/8" (16mm/s)
-
Frequency:
-
433.92MHz
-
Motor:
-
DC24V 50W
-
Input Voltage:
-
AC110V-240V /50 60HZ
-
Package:
-
Custom Packing Welcomed
-
Material:
-
Aluminum alloy and reinforced nylon
-
Rod moving length:
-
385-485mm
Specification
|
Item
|
EDN280
|
EDN365
|
EDN700M
|
|
Motor Power
|
24V 30W
|
24V 50W
|
24V 80W
|
|
Stroke
|
360mm
|
360mm
|
360mm
|
|
Moving Speed
|
20mm/s
|
20mm/s
|
20mm/s
|
|
Color
|
All Black
|
All Black
|
All Black
|
|
Max. Gate Weight per Arm
|
440lbs(200kg)
|
660lbs(300kg)
|
880lbs(400kg)
|
|
Max. Width per Arm
|
11.8FT(3.6M)
|
18FT(5.5M)
|
18FT(5.5M)
|
|
Frequency
|
433.92MHZ
|
433.92MHZ
|
433.92MHZ
|
|
Input Voltage
|
110V-130V/ 220V-240V
|
110V-130V/ 220V-240V
|
110V-130V/ 220V-240V
|
|
Solar Powered
|
Yes
|
Yes
|
Yes
|
|
|

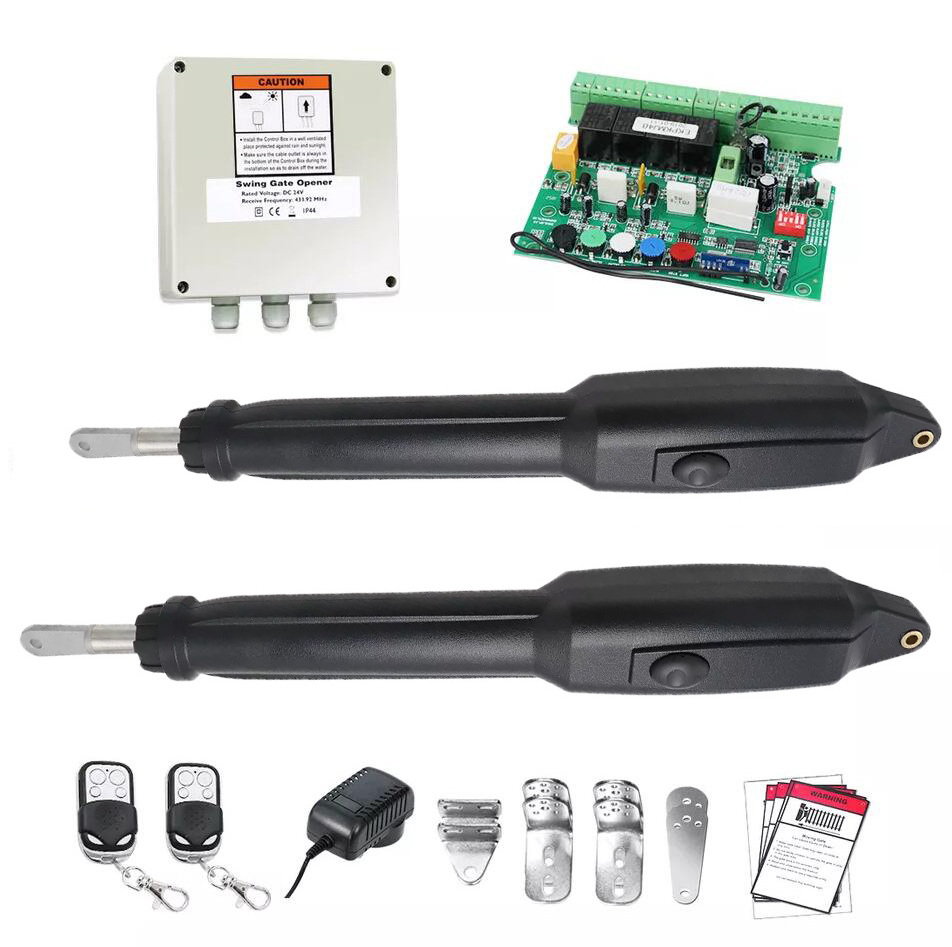

1. Control Box x 1
2. Gate Arm x 2
3. Remote Control x 2
4. User Manual x 1
5. Installation Hardware x 1
6. Manual Release Key x 2
7. Adaptor x 1
|
Product Description
Gate Opener can be powered by 24V 12Ah Automotive / Marine type battery (Battery is NOT included).
Use the adapter (included), or the additional 24V solar panel & solar controller (NOT included) to charge the battery.
Made with waterproof and dustproof control box, ensuring a long lasting performance.
Intelligent control system, t
here's an immediate stop and reverse mode for obstruction
.
Features
* Two installation modes, Pull-to-Open or Push-to-Open, allows gate open inwards or outwards.
*
Equipped with manual release key in case of power outage or when you lose your remote.
*
Soft start and soft stop ensure a long-lasting performance.
* Reliable electromagnetism limit switch for easy adjustment.
* Digital display indicates the running situation and setting menu.
* Dual/Single gate running mode selectable.
* Easy to install, and minimum maintenance requirement.
*
Adjustable open/close interval (0-99seconds) between master and slave gate.
Optional Accessories
Uninterrupted Power Supply
The NPS-2406U Uninterrupted Power Supply efficiently converts AC 100-240V to DC 24V, reducing electromagnetic interference to ensure stable voltage output. This converter provides 150 W continuous output power and 180 W of peak power. High quality control panel with wide range of input voltage, the NPS-2406U adapter is used in commercial, industrial and household appliances, popular among worldwide users.
Solar Panel Kit
Use this monocrystalline solar panel kit to generate power wherever, whenever there is sunlight! It’s energy conservation and environmental protection with offering pollution-free solar energy. No electricity cost, free maintenance for outdoor use.This solar panel kit provides you with the most efficiency way for charging the batteries.
