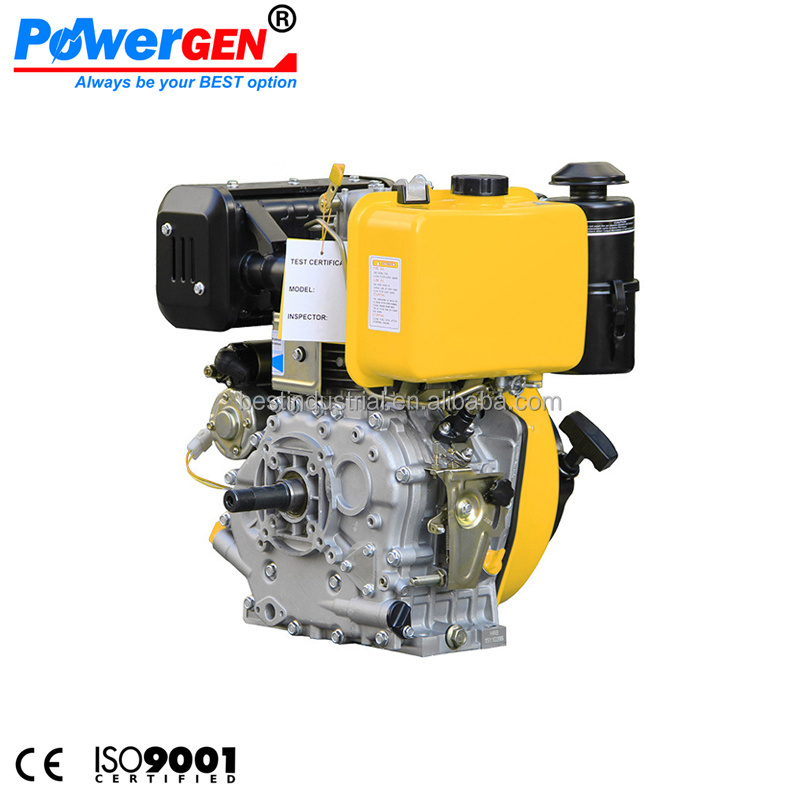

EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP

EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP

FOB Reference Price: Get Latest Price
≥1 Pieces
US $185
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
417*441*494
Weight:
48kg
Warranty:
1 year
Certification:
EPA,CE,ISO
Advantage:
Low Fuel Consumption

Quick Details

Place of Origin:
Fujian, China
Brand Name:
POWERGEN
Model Number:
BD186F(E)
Dimension(L*W*H):
417*441*494
Weight:
48kg
Warranty:
1 year
Certification:
EPA,CE,ISO
Advantage:
Low Fuel Consumption
Product Description

Product Application

The Single Cylinder Diesel Engine 10HP can work as engine for Generators, Water Pumps and Construction equipments.


NOTE: Our diesel engine 186FAE is EPA 2016 approved!

Specifications of Diesel Engine 10HP
Model No.
BD186FA(E)
Engine Type
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
Bore x Stroke (mm)
86x72
Displacement (cc)
418
Compression Ratio
19:1
Peak Power (HP/RPM)
10/3600
Rotation (View from Flywheel)
Clockwise
Fuel Type
0#, -10# diesel
Fuel Tank Capacity (Liter)
5.5
Fuel Consumption (g/kW.H)
320
Lub. oil Type
SAE10W30(Above CD grade)
Lub Oil Capacity (Liter)
1.65
Starting System
Recoil Start, Electric Start
Dimensions (LxWxH)mm
417 x 441 x 494
Net weight (Kgs)
Recoil start: 48Kg ; With electric starter: 53Kg
Diagram & Shaft
Complete Engine

* Internal 8 Amp alternator with regulator * Internal counterbalance shaft

* Equipped with muffler and fuel tank                       * Solonoid type electric starter (battery not included)

* Pull-recoil starter included                                        * Compression release lever
* Glow plug for cold weather starting                        * One year factory warranty on parts

Applications

Diesel Generator 5KW

The diesel engine 10HP is an ideal engine for diesel generator 5KW.

Water Pump 3 inch or 4 inch

The diesel engine 10HP is powerful

enough to power the water pump

3 inch or 4inch.

Construction Equipments

The diesel engine 186FAE is ideal for the construction equipments such as

plate compactors and concrete mixers.

Packing
Packaging
Size (mm)
530 (L) * 480 (W) * 560 (H)
Gross Weight
55Kg (with Electric Start)



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
