Quick Details
-
Brand Name:
-
DLX
-
Shape:
-
Tube, Rod, Sleeve, Bushing
-
Content of Alumina::
-
99.7%
-
Straightness::
-
0.07%
-
Density:::
-
2.4-3.88
-
Color::
-
ivory
-
temperature::
-
1750℃ (Alumina), 1050℃ ( Zirconia)
-
Maximum length:
-
5000mm
-
Delivery time:
-
15-20 Days
-
M.O.Q.::
-
5000pcs
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Ceramic Tubes
-
Brand Name:
-
DLX
-
Shape:
-
Tube, Rod, Sleeve, Bushing
-
Content of Alumina::
-
99.7%
-
Straightness::
-
0.07%
-
Density:::
-
2.4-3.88
-
Color::
-
ivory
-
temperature::
-
1750℃ (Alumina), 1050℃ ( Zirconia)
-
Maximum length:
-
5000mm
-
Delivery time:
-
15-20 Days
-
M.O.Q.::
-
5000pcs

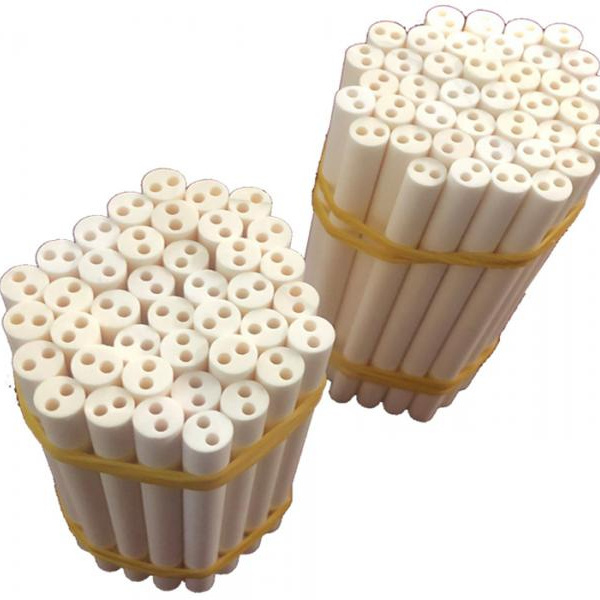

ceramic tubes, rods and various industrial ceramic parts, which are mainly used in thermal-couple temperature, liquid steel continuos temperature, various industrial furnace, especially widely used in petrochemical, spinning, electric, instrumentation, mechanical workout, military project etc industry.
|
Item |
unit
|
95% Alumina Ceramics |
99% Alumina Ceramics |
95% Zircionia Ceramics |
|
Major Chemical |
Al2O3 | Al2O3 | ZrO2 | |
|
Content |
≥95 | ≥99 | ≥94.5 | |
|
Volume Density |
g/m³ | ≥3.6 | ≥3.8 | ≥6.02 |
|
Maximum Service Temperature |
℃ | 1680℃ | 1800℃ | 2400℃ |
|
Dielectric constant (1MHZ) |
9 | 9.9 | 20 | |
|
Bending Strength |
Mpa | 320 | 360 | 1000-1500 |
|
Fracture Toughness |
Mpa.m-3/2 | 2-4 | 3-5 | 11 |
|
Elastic Modulus |
Gpa | 280 | 370 | 210 |
|
Coeffient of Thermai Expansion |
X10-6/℃ | 7.1 | 8 | 10.5 |
|
Heat Impact |
T℃ | 200 | 200 | 250 |
|
Resistance |
Ω/cm³ | >10(14~16) | >10(14~16) | |
|
Poissiom Ratio |
0.2 | 0.2 | 0.3 |
