Quick Details
-
Brand Name:
-
MUST
-
Model Number:
-
PC1800F Series
-
Max PV Power:
-
600w
-
Max PV Voltage:
-
130v
-
Certificate:
-
CE etc.
-
Warranty:
-
12 months
-
Brand:
-
MUST
-
Nominal System Voltage:
-
12V,24V,48V
-
battery Absorption Voltage:
-
12.5VDC/25.0 VDC
-
Maximum Solar Input Voltage:
-
12v-48v
-
PV Array MPPT Voltage Range:
-
15~95V/30~130V/45~130V/60~130V
-
Charging stages:
-
Bulk,Absorption,Float
-
Charging Algorithm:
-
3-Step or 4-Step(LI)
-
Enclosure:
-
IP20
-
Ambient Temperature Range:
-
-10℃ to 55℃
-
Ambient Humidity:
-
0%-90% RH(No condensing)
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUST
-
Model Number:
-
PC1800F Series
-
Max PV Power:
-
600w
-
Max PV Voltage:
-
130v
-
Certificate:
-
CE etc.
-
Warranty:
-
12 months
-
Brand:
-
MUST
-
Nominal System Voltage:
-
12V,24V,48V
-
battery Absorption Voltage:
-
12.5VDC/25.0 VDC
-
Maximum Solar Input Voltage:
-
12v-48v
-
PV Array MPPT Voltage Range:
-
15~95V/30~130V/45~130V/60~130V
-
Charging stages:
-
Bulk,Absorption,Float
-
Charging Algorithm:
-
3-Step or 4-Step(LI)
-
Enclosure:
-
IP20
-
Ambient Temperature Range:
-
-10℃ to 55℃
-
Ambient Humidity:
-
0%-90% RH(No condensing)

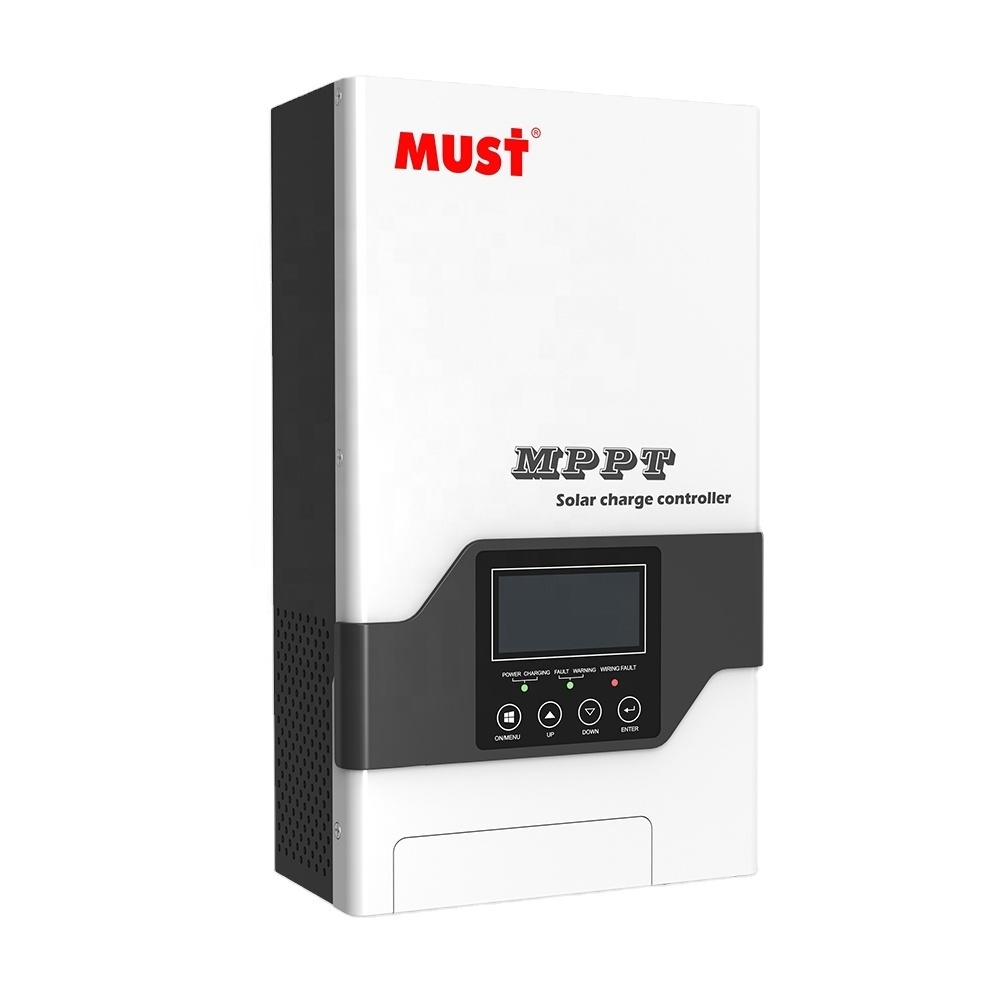

MUST PC1800F Series MPPT Solar Charge 12V 24V 36V 48V 60a 80a 100a mppt solar controller
*******ANY QUESTIONS, PLS FREE TO CONTACT!!! ******* Amanda
WHATSAPP(WECHAT):+8615999578232
MPPT (Maximum Power Point Tracking)Solar Charge Controller offers an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.
Features:
u LCD display, easy to operate on the LCD screen
u Multi-stage charging (3-stage charging, parallel charging and equalized
u charging function)
u BTS - Battery remote temperature sensor terminal
u Enable to charge Lithium, Gel , lead-acid battery
u With RS485 & USB communication port
u Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity,
u Overcharging, Output short circuit
