Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
miharting
-
Year:
-
2020
-
Voltage:
-
220V--600V Optional
-
Dimension(L*W*H):
-
750*1330*1750
-
Weight (T):
-
2.5 T
-
Model Number:
-
JB23-12T
-
Motor Power (kw):
-
1.5 kw
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
metal processing machines
-
Keyword:
-
steel hole punching
-
Application:
-
hole punching machine
-
Material:
-
Stainless Steel Metal Sheet
-
Power souce:
-
220/380V optional
-
Electric Motor Model:
-
Y100L2-4
-
Usage:
-
Metal Forming Machine
-
Keyword 2:
-
Pneumatic power Press
-
Function:
-
steel hole punching
-
Name:
-
J23 series press hole punching
Quick Details
-
Machine Type:
-
Open titing press
-
Slide Stroke (mm):
-
50, 60, 70, 100
-
Return Force (kN):
-
160 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
miharting
-
Year:
-
2020
-
Voltage:
-
220V--600V Optional
-
Dimension(L*W*H):
-
750*1330*1750
-
Weight (T):
-
2.5 T
-
Model Number:
-
JB23-12T
-
Motor Power (kw):
-
1.5 kw
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
metal processing machines
-
Keyword:
-
steel hole punching
-
Application:
-
hole punching machine
-
Material:
-
Stainless Steel Metal Sheet
-
Power souce:
-
220/380V optional
-
Electric Motor Model:
-
Y100L2-4
-
Usage:
-
Metal Forming Machine
-
Keyword 2:
-
Pneumatic power Press
-
Function:
-
steel hole punching
-
Name:
-
J23 series press hole punching
Product Description

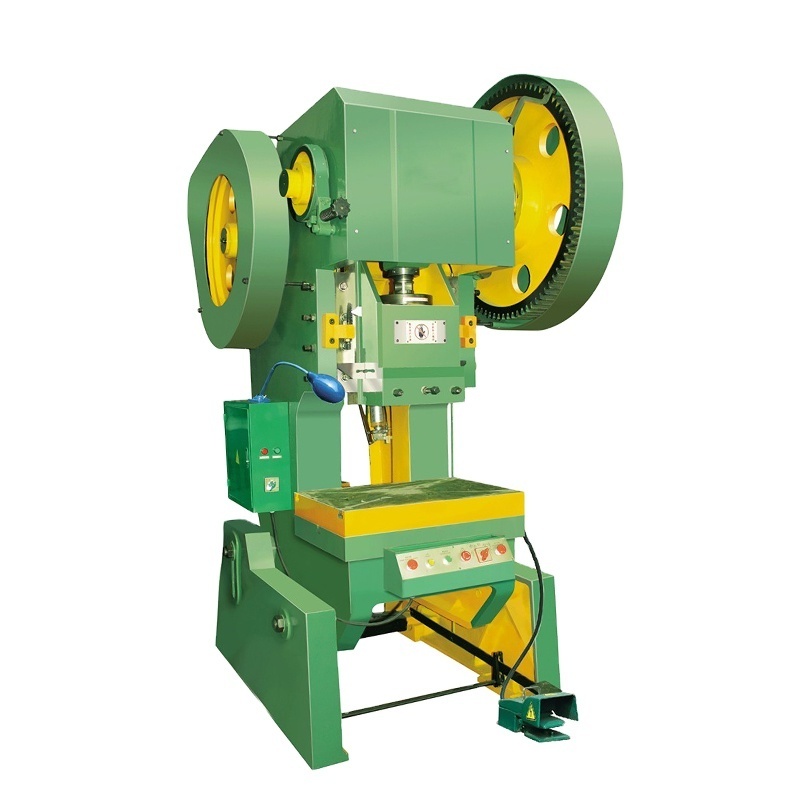

Small type J23-16ton power press steel hole punching machine for stainless steel metal processing
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and
protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and
protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
|
Item
|
J23-10T
|
J23-16T
|
J23-25T
|
J23-40T
|
J23-63T
|
J23-80T
|
J23-100T
|
J23-125T
|
|
Nominal Pressure
|
100KN
|
160KN
|
250KN
|
400KN
|
630KN
|
800KN
|
1000KN
|
1250KN
|
|
Slide stroke (Times/min)
|
145
|
140
|
70
|
55
|
50
|
45
|
45
|
38
|
|
Slide strokes
|
50mm
|
60mm
|
70mm
|
100mm
|
110mm
|
115mm
|
130mm
|
150mm
|
|
Max closing height
|
150mm
|
170mm
|
200mm
|
300mm
|
330mm
|
380mm
|
380mm
|
500mm
|
|
Die height adjustment
|
40mm
|
40mm
|
40mm
|
70mm
|
80mm
|
80mm
|
100mm
|
100mm
|
|
Distance between slider center and machine
|
130mm
|
160mm
|
180mm
|
215mm
|
230mm
|
250mm
|
280mm
|
390mm
|
|
Workbench diameter(mm)
|
240x360
|
300x480
|
320x525
|
400x650
|
440x700
|
480x750
|
540x840
|
720x1100
|
|
Pole distance
|
180mm
|
220mm
|
240mm
|
300mm
|
300mm
|
300mm
|
380mm
|
550mm
|
|
Shank hole diameter
|
30mm
|
35mm
|
40mm
|
50mm
|
60mm
|
60mm
|
60mm
|
60mm
|
|
Shank hole depth
|
50mm
|
60mm
|
60mm
|
70mm
|
70mm
|
80mm
|
80mm
|
75mm
|
|
Pad thickness
|
50mm
|
50mm
|
50mm
|
75mm
|
80mm
|
95mm
|
100mm
|
130mm
|
|
Body tilting angle
|
30°
|
20°
|
20°
|
20°
|
20°
|
20°
|
20°
|
13°
|
|
Motor power
|
1.5Kw
|
1.5KW
|
2.2KW
|
3KW
|
4KW
|
7.5KW
|
7.5KW
|
11Kw
|
|
Weight
|
450Kg
|
750KG
|
1500KG
|
2500KG
|
4000KG
|
5000KG
|
6000KG
|
7000Kg
|
2021 stamping metal steel hole punching machine and sheet metal punch press 25ton
Small type J23-16ton power press steel hole punching machine for stainless steel metal processing
Standard Execution
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device.
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device.
