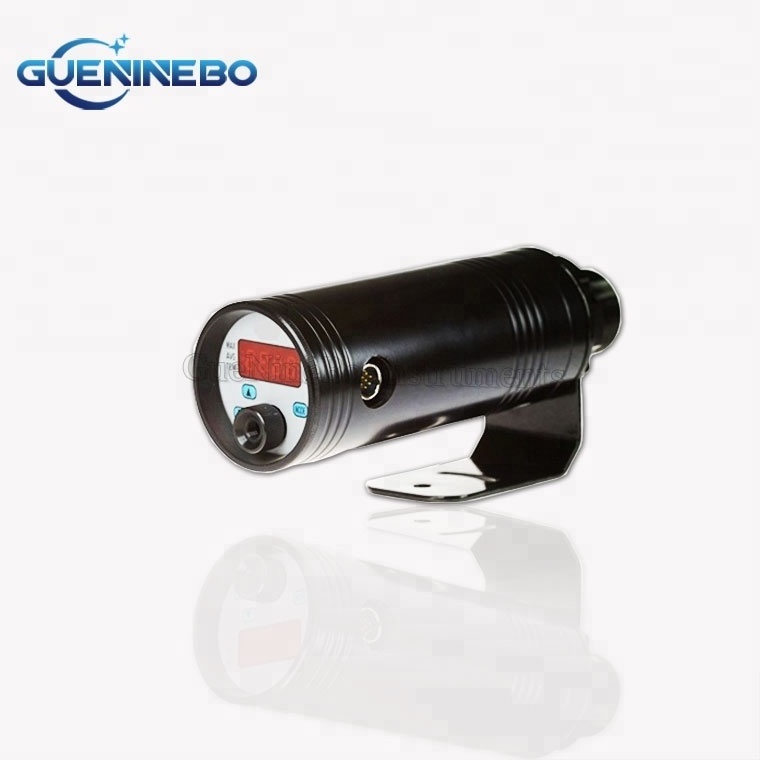

GNB215 Industrial Temperature Monitoring Infrared Thermometer / IR Sensor / Pyrometer 0 - 5V output

0-5V Industrial infrared temperature sensor IR pyrometer GNB215

Specifications:

GNB215 infrared thermometer combined technology of non-contact temperature measurement and micro-computer process, to catch object temperature instantaneously. The measurement range is 0 ℃~ 500 ℃ , and the D:S reaches 20:1. And it provided 0~5V output, that will be convenient to be integrated into control system for data communication and exchange.

Features:

1. 0 ℃~ 500 ℃ range, stainless steel housing.
2. Spectral response 8um ~ 14um.
3. High accuracy and repeatability.
4. Response time ≤300 ms.
5. Internal power protection for serious situation.
6. 0~5V output
7. Have the protective function for Signal short circuit and power supply reversed.

8. Standard thread for easy to install and debugging.
9. Optional mounting bracket and secondary instrument.
10. Optional external laser sight, easy to install sighting.

Dimensions:

Distance to Spot Ratio (D:S)

Applications :

GNB215 infrared thermometer is widely use to Metallurgy, casting, forging, induction heating, heat treatment, furnace, glass working, printing and dyeing, drying, plastic processing industry, process control and equipment fault diagnosis, as well as energy, saving industry and scientific research.
