Quick Details
-
Filling Accuracy:
-
100
-
Voltage:
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TODAYMACHINE
-
Weight:
-
222 KG
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
100
-
Voltage:
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TODAYMACHINE
-
Weight:
-
222 KG
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020

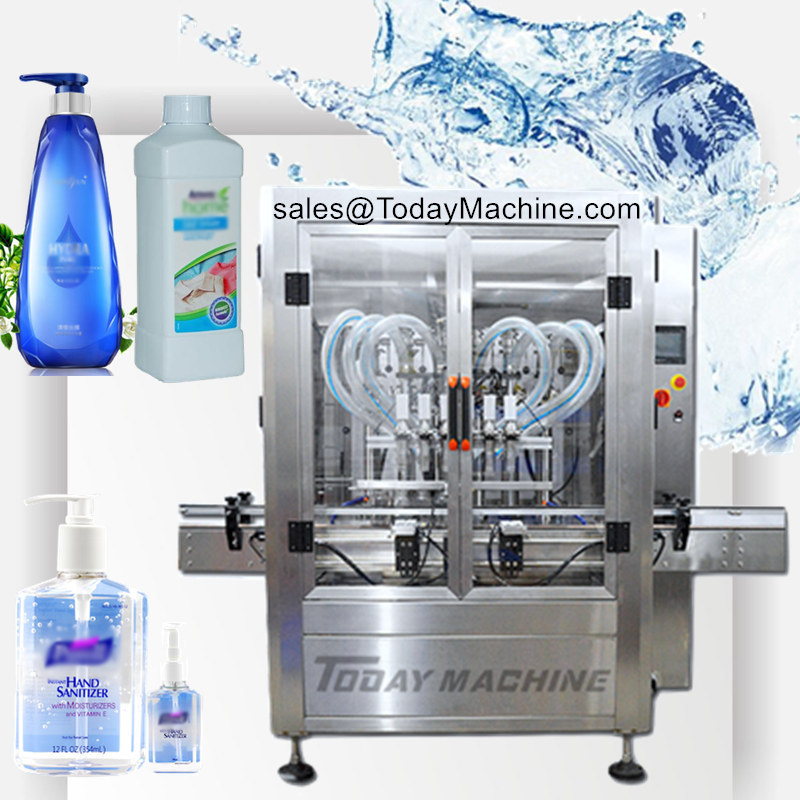

Automatic Bottle Liquid/Paste/Oil Filling Machine with Conveying Line
For Honey, Hand Sanitizer, shower gel, detergent liquid, shampoo, beer, ketchup, oil, etc.
Option: with cover, without cover.
Application
Product: Liquid, gel, paste, oil, cream …
Container: plastic/glass bottle of round/square/special/hexagon…
Functions
Measure pump is piston measure pump, then the piston through across in the pump up-side and down-side movement to-and-fro.
After bottles in right position, the filling head will move up and down at the same time and enter into the bottle for filling
Hold the bottles complete filling for next procedures
Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements.
With no bottle and no filling function, the liquid level automatically controls the feeding.
Easily adjust bottles of various shapes and specifications without replacing parts.
The filling head is equipped with a special leak-proof device, and there is no drawing or dripping in the filling.
Technical parameters
| Model | LFL-2H | LFL-4H | LFL-6H | LF-8L | LFL-12H |
| Filler head | 2 head | 4 head | 6 head | 8 head | 12 head |
| Speed |
5-20
b/min |
10-20
b/min |
10-30
b/min |
15-40
b/min |
30-80
b/min |
| Range |
25-250ml
50-500ml 150-1000ml 500-2500ml 2000-5000ml |
25-250ml
50-500ml 150-1000ml 500-2500ml 2000-5000ml |
25-250ml
50-500ml 150-1000ml 500-2500ml 2000-5000ml |
25-250ml
50-500ml 150-1000ml 500-2500ml 2000-5000ml |
25-250ml
50-500ml 150-1000ml 500-2500ml 2000-5000ml |
| Error |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
Within 0.5g
(when 500ml) |
| Voltage |
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
220v/380v
50-60hz |
| Air pressure | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.6-1Mpa | 0.6-1Mpa | 0.6-1Mpa |
| Weight | 300kg | 350kg | 350kg | 400kg | 450kg |
| Dimention |
2000x10200
x1800
|
2500x900
x2200
|
2500x900
x2200
|
2500x900
x2200
|
2500x900
x2200
|
Bottle Powder Filling Line by Auger with belt conveyor
Filling Powder automatically for bottle/can/jar/containers from glass, plastic, tin, aluminum …
Application
Powder from any possible chemical/food/medicine, such as coffee powder, flour, spice, detergent powder, makeup powder …
Character
Touch screen in Multiple Language
Smart tracking one by one, from bottle can jar, any round/square containers possible
Auger container volume options: 8L, 25L, 50L.
Technical Parameters
| Model | Auger | Range |
Speed
(B/M) |
Accuracy | Power |
Weight
(kg) |
Dimension
(mm) |
| AFL-1H | 1 |
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
10-30 | ±0.5% |
220V
3kw |
200 | 2000x900x1850 |
| AFL-2H | 2 |
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
10-40 | ±0.5% |
220V
3.6kw |
250 | 2000x900x1850 |
| AFL-4H | 4 |
1-10g/5-25g
10-100g/25-150g 50-300g 100-500g 200-1000g 500-2000g |
20-50 | ±0.5% |
220V
4kw |
300 | 2000x900x1850 |
Bottle Weigher Line with belt conveyor
For granule, powder, pellet, block, etc.
Character
Touch screen in multiple language
Full stainless steel in GMP standard, match to food/industrial/chemical field
Smart tracking one by one, from bottle can jar, any round/square containers possible
Technical parameter
| Model | Weigher | Circle | Range | Error |
Speed
(B/M) |
Power |
Weight
(kg) |
Dimension
(mm) |
| DCSL-1H | 1 | 1 bottle |
10-100g
50-500g 100-1000g 200-2000g 500-5000g |
±2g | 10-30 |
220V
2kw |
250 | 2000x900x1890 |
| DCSL-2H | 2 |
1 bottle
2 bottle |
10-100g
50-500g 100-1000g 200-2000g |
±2g | 10-40 |
220V
2.5kw |
300 | 2000x900x1890 |
| DCSL-4H | 4 |
1 bottle
2 bottle 4 bottle |
10-100g
50-500g 100-1000g |
±2g | 10-40 |
220V
3.3kw |
350 | 2000x900x1890 |
| DCSL-10H | 10 | 1 bottle |
10-100g
50-500g 100-1000g |
±2g | 20-60 |
220V
3.3kw |
400 | 2000x900x1890 |
