Quick Details
-
Brand Name:
-
Hengyuan
-
Weight:
-
40000 kg
-
Product name:
-
Concrete Mixing Plant
-
Model:
-
HZS25/35/50/60/75/90/120/180/240
-
Capacity:
-
25-240m3/h
-
After-sales Service Provided:
-
Video Technical Support
-
Type of mixer:
-
Twin Shaft Compulsory Mixing
-
Batching Machine:
-
PLD Batching Machine
-
Installation:
-
Engineer's Professional Guidance
-
Advantage:
-
High Production Efficiency
-
Discharging Height:
-
4.0m
-
Color:
-
Customers' Request
Quick Details
-
Machine Type:
-
Production line
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengyuan
-
Weight:
-
40000 kg
-
Product name:
-
Concrete Mixing Plant
-
Model:
-
HZS25/35/50/60/75/90/120/180/240
-
Capacity:
-
25-240m3/h
-
After-sales Service Provided:
-
Video Technical Support
-
Type of mixer:
-
Twin Shaft Compulsory Mixing
-
Batching Machine:
-
PLD Batching Machine
-
Installation:
-
Engineer's Professional Guidance
-
Advantage:
-
High Production Efficiency
-
Discharging Height:
-
4.0m
-
Color:
-
Customers' Request

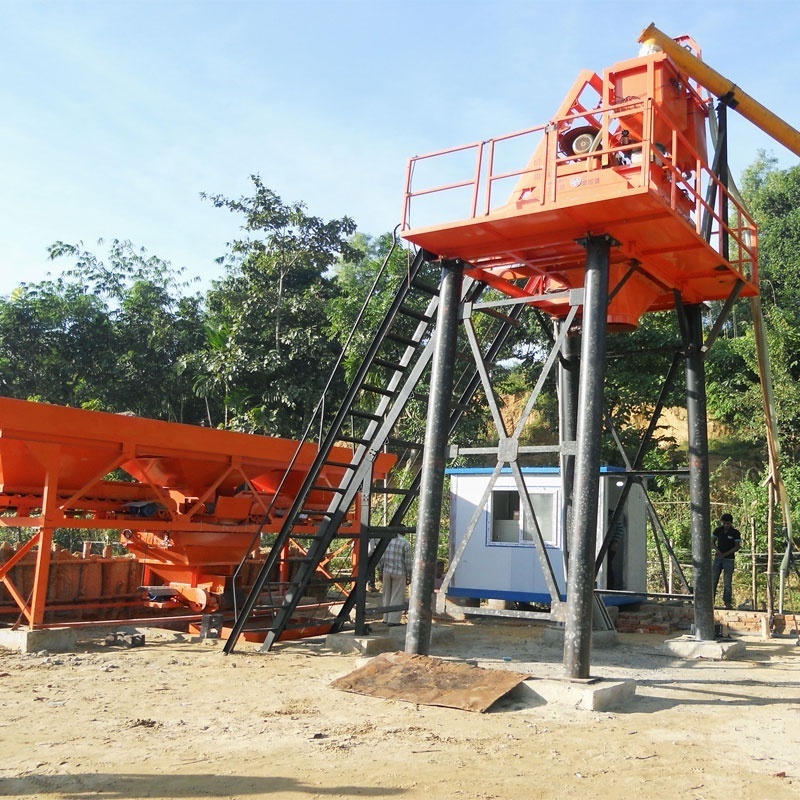

Fully automatic bucket type concrete batching plant for sale
HZS type concrete batching plant consists of material batching, mixing and electric control system, etc, which produce high quality concrete because of more accurate material measurement. They are widely used in construction projects, road, bridge project, and concrete prefabrication factory.
Product Features
Advantage of concrete batching plant
1
.Easy to transport, install and debug.
2
.It has a variety of basic forms to ensure adaptation to different sites.
3
.Structural members are durable.
4
.
The mixing system uses JS(or SICOMA) two-axis forced concrete mixer, which has high efficiency and good mixing quality.
5
.Computer plus PLC control system to ensure simple and stable operation, dynamic panel display can make the operator clearly understand the operation of each part. Abnormal working conditions and faults are convenient for maintenance and elimination.
6
.Host cleaning with high pressure pump cleaning device, good maintenance performance.
Product Overview
JS1000 concrete mixer
Use JS1000 Double horizontal shaft mixer to ensure mixer capacity and quality
Control system
Provide control system & perfect o
peration Manual Instructions
Concrete batching machine
PLD800, PLD1200, PLD1600, PLD2400, PLD3200, PLD4800, PLD6400 is available
Screw conveyor
Screw Conveyor adopts the full sealing device
Product Specification
|
Model
|
HZS25
|
HZS35
|
HZS50
|
HZS75
|
HZS100
|
|||||
|
Capacity
|
25m3/h
|
35m3/h
|
50m3/h
|
75m3/h
|
100m3/h
|
|||||
|
Mixing system
|
Twin-shaft concrete mixer
|
|
|
|
|
|||||
|
Aggregate feeder
|
Bucket ( Skip hopper )
|
|
|
|
|
|||||
|
Discharging height
|
3800mm
|
|
|
|
|
|||||
|
After-sale service
|
Erection & commissioning, operator training
|
|
|
|
|
|||||
|
Warranty
|
18 months
|
|
|
|
|
|||||
|
Concrete mixer
|
JS500
|
JS750
|
JS1000
|
JS1500
|
JS2000
|
|||||
|
Mixing cycle
|
72S
|
|
|
|
|
|||||
|
Aggregate batching machine
|
PLD800
|
PLD1200
|
PLD1600
|
PLD2400
|
PLD3200
|
|||||
|
Weighing system
|
Water, Cement, Additive
|
|
|
|
|
|||||
|
Weighing precision
|
±1%
|
|
|
|
|
|||||
|
Air system
|
Air compressor, etc
|
|
|
|
|
|||||
|
Control system Type
|
Computer auto-control module ( PLC can be optional item)
|
|
|
|
|
|||||
|
Control panel board
|
Buttons, lamps, indicators, etc
|
|
|
|
|
|||||
|
Electric components
|
China CHINT, German SCHNEIDER (option)
|
|
|
|
|
|||||
|
Control room
|
With Air conditioner
|
|
|
|
|
|||||
|
Documentation
|
Foundation layout, Electrical diagram, Operation manual
|
|
|
|
|
|||||
|
Optional Items
|
|
|
|
|
|
|||||
|
Screw conveyor diameter & length
|
Ø219mm/273mm, L=8000mm/9000mm
|
|
|
|
|
|||||
|
Cement silo capacity
|
50t/100t/150t/200t
|
|
|
|
|
|||||
Successful Projict& Shipping
In
Thailand
In
Sri Lanka
In
Kenya
In
Uzbekistan
In Bangladesh
In Malaysia
.
Certifications
ISO9001
CE
