Quick Details
-
Model Number:
-
WZP-131
-
Product name:
-
Class A 2/3/4 wires rtd pt100 thermocouple sensors with PTFE lead wire
-
Specifications:
-
According to requirements
-
Type:
-
2/3/4 wires PT100/PT1000
-
Material:
-
Stainless steel 304/316
-
Diameter:
-
3~8mm/customized
-
Length:
-
50/100/200/300/400/500mm/customized
-
Lead wire length:
-
1~10m/customized
-
Application:
-
Industrial Temperature Measuring
-
Certificate:
-
ISO9001
-
Sample:
-
Available
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
NANPAC
-
Model Number:
-
WZP-131
-
Product name:
-
Class A 2/3/4 wires rtd pt100 thermocouple sensors with PTFE lead wire
-
Specifications:
-
According to requirements
-
Type:
-
2/3/4 wires PT100/PT1000
-
Material:
-
Stainless steel 304/316
-
Diameter:
-
3~8mm/customized
-
Length:
-
50/100/200/300/400/500mm/customized
-
Lead wire length:
-
1~10m/customized
-
Application:
-
Industrial Temperature Measuring
-
Certificate:
-
ISO9001
-
Sample:
-
Available

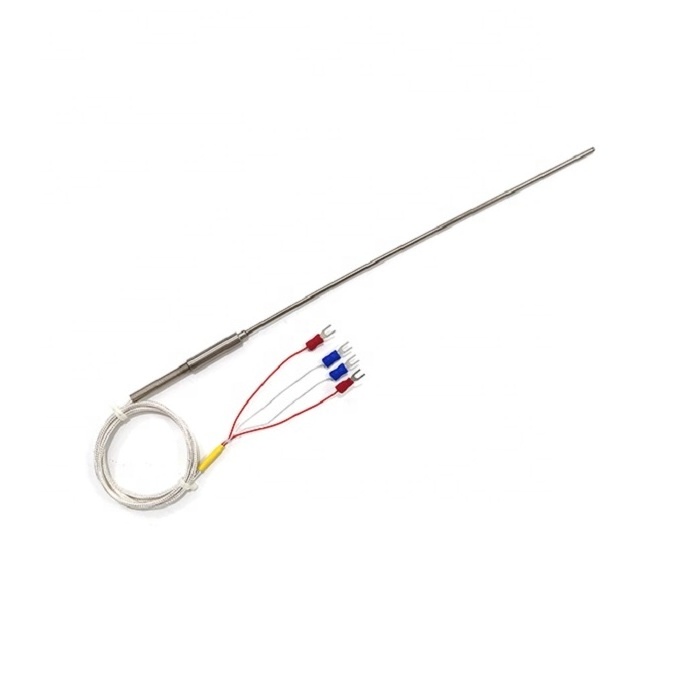

High acccuracy class A 2/3/4 wires rtd pt100 thermocouple sensors with PTFE lead wire
working principle
:
PT100 temperature sensor is the use of metal platinum (pt) resistance and temperature with a certain functional relation of temperature sensor, Due to its high accuracy, large measuring range, good reproducibility and stability, etc . That are widely used in medium temperature (-200 ℃ ~ 650 ℃) in the range of temperature measurement.
F eature s:
1.High precision, good stability;
2 .High sensitivity, good linear;
3.Response time short,good compatibility;
|
Category |
Model |
Type |
Range |
Accuracy |
Allowable difference |
|
Platinum resistance(rtd) |
WZP |
Pt100 |
-200~500°C |
A |
±(0.15+0.2%|t|) |
|
Pt10 |
-200~650°C |
||||
|
Copper resistance |
WZC |
Cu50 |
-50~150°C |
—— |
±(0.30+0.6%|t|) |
We focus on producing high-quality products as our core customer. Specialized and customized products make our product types rich and varied, more professional and pertinent.
Each batch of less than 100 pieces of your goods, we probably completed in 7 working days.
After each step of the process, we will allow you to confirm the image or video format, allowing you to feel the perfection of our customized services.
We have professional precision testing equipment to ensure the highest quality for our products.
