Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB10B-G10Z
-
Product Name:
-
Push Button Switch
-
Mounting hole diameter:
-
10mm
-
Head Shape:
-
High Round Head
-
Switch combination:
-
1NO
-
Operation type:
-
Latching
-
Terminal type:
-
2 Pin terminals
-
Material:
-
Brass Nickled
-
Illuminated type:
-
Without
-
Actuator color:
-
Red (or black)
-
Connector Customized:
-
Ok
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB10B-G10Z
-
Product Name:
-
Push Button Switch
-
Mounting hole diameter:
-
10mm
-
Head Shape:
-
High Round Head
-
Switch combination:
-
1NO
-
Operation type:
-
Latching
-
Terminal type:
-
2 Pin terminals
-
Material:
-
Brass Nickled
-
Illuminated type:
-
Without
-
Actuator color:
-
Red (or black)
-
Connector Customized:
-
Ok

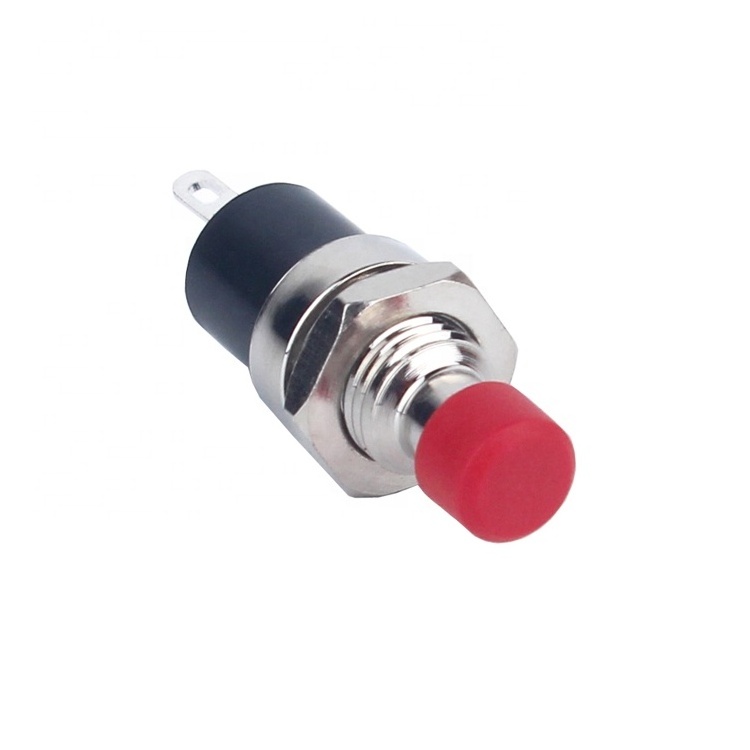

Two Colors Latching Switches 10mm Mini 2Pin Plastic Button Press ON Pulsador Switch Push Button Lock
le push button switch
|
Product Name |
Push Button Switch |
|
Model |
IB 10 B-G10Z/N |
|
Mounting Hole |
10 mm |
|
Operation Type |
Latching(Maintain) |
|
Switch Combination |
1NO |
|
Head Type |
High round head |
|
Terminal type |
2 Pin Terminals |
|
Actuator Color |
Red (option color: Black) |
|
Enclosure Material |
Plastic & Nickel-plated Brass |
|
Delivery Days |
1-3 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
What you get |
1 x Push Button Switch, Red, latching |
Note: If you need black actuator, pls inform us by mail,thanks!
· Item Name : Push Button Switch; Action Type : Latching ;
· Contact Type : NO Poles : SPST;
· Rating Voltage : AC 250V / 1A; Terminals : 2 Pin
· Thread Dia. : 10 mm Material : Plastic, Metal;
· Color : Red, Black
· Package List: 1 x Push Button Switch
We have waterproof anti-vandal push button switch from 7mm to 40mm Panel mount diameter,we offer a cost effective, durable range of panel mounting options suitable for a wide range of applications. The range offers a variety of coloured LED rings, so status identification is simple. This range of waterproof anti-vandal metal switches are durable for use within both demanding internal & external applications, along with installations exposed to public areas. China push button switch
Q1. What is your terms of packing?
IP67 waterproof push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
