Quick Details
-
Application:
-
Other
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kingflex
-
Model Number:
-
K0
-
density:
-
48-96
-
Heat conductivity::
-
0.034 w/m.k at 0 centigrade
-
Material::
-
NBR and PVC
-
Temperature range::
-
-183~105
-
Resistance to agent chemical::
-
stable performance to agent chemical
-
Flame spread and smoke developed index:
-
Class1&Class 0 & V0
-
Aging resistance:
-
150 hours,slight wrinkles,no cracks,holes
-
Colour::
-
black
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
Other
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kingflex
-
Model Number:
-
K0
-
density:
-
48-96
-
Heat conductivity::
-
0.034 w/m.k at 0 centigrade
-
Material::
-
NBR and PVC
-
Temperature range::
-
-183~105
-
Resistance to agent chemical::
-
stable performance to agent chemical
-
Flame spread and smoke developed index:
-
Class1&Class 0 & V0
-
Aging resistance:
-
150 hours,slight wrinkles,no cracks,holes
-
Colour::
-
black

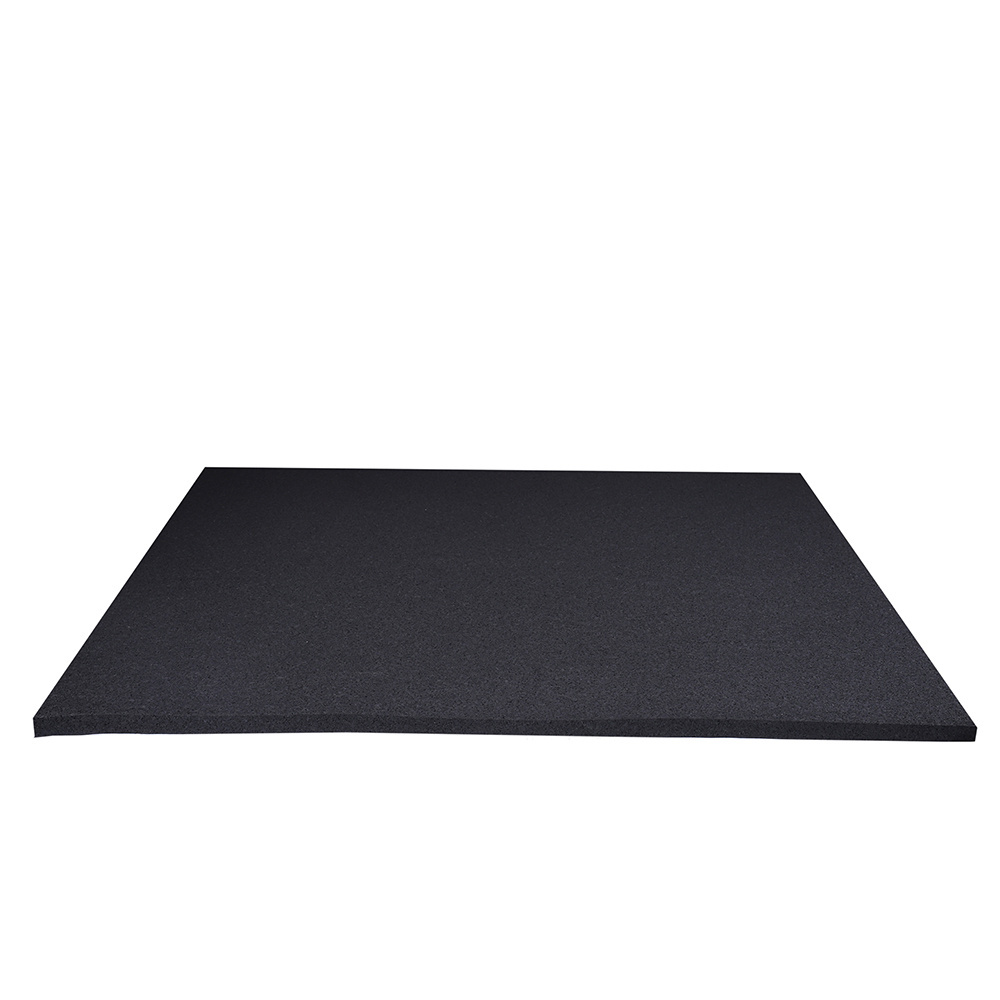

Kingflex foam rubber sheets is an environmental protection insulation material with closed cell structure. It is manufactured without the use of CFC'S, HFC'S OR HCFC'S. It is also formaldehyde free, low VOCS, fiber free, dust free and resistant to mold and mildew.
♦ excellent thermal insulation- very low thermal conductivity
♦ excellent acoustic insulation- can reduce noise and sound transmitting
♦ moisture resistant, fire resistant
♦ good strength to resist deformation
♦ closed cell structure
♦ BS476 / UL94/ DIN5510/ ASTM/ CE/ REACH/ ROHS/ GB CERTIFIED
|
Kingflex Technical Data |
|||
|
Property |
Unit |
Value |
Test Method |
|
Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
|
Density range |
Kg/m3 |
45-65Kg/m3 |
ASTM D1667 |
|
Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 - ¹³ |
DIN 52 615 BS 4370 Part 2 1973 |
|
μ |
- |
≥10000 |
|
|
Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
|
|
|
≤0.032 (0°C) |
|
|
|
|
≤0.036 (40°C) |
|
|
Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
|
Flame Spread and Smoke Developed Index |
|
25/50 |
ASTM E 84 |
|
Oxygen Index |
|
≥36 |
GB/T 2406,ISO4589 |
|
Water Absorption,%by Volume |
% |
20% |
ASTM C 209 |
|
Dimension Stability |
|
≤5 |
ASTM C534 |
1.What is insulation product?
Insulation product is used to cover pipes, ducts, tanks, and equipment in commercial or industrial environments and is typically relied upon to control temperature for a much broader range of temperature variances that of a typical home. Home or residential insulation is typically found in the exterior walls and attics and is used to keep the home environment a consistent, comfortable living temperature. The temperature differential in a home insulation environment is in most cases far less than that of a typical commercial or industrial application.
2.What about the lead time?
The bulk goods order production delivery time will be within three weeks after receiving the down payment.
3.How are your products tested?
We normally test BS476, DIN5510, CE, REACH, ROHS, UL94 at an independent lab. If you have a specific request or a specific test request please contact our technical manager.
4.What type of your company?
We are an enterprise integrating manufacture industry and trade.
5. What is your main product?
NBR/PVC rubber foam insulation
Glass Wool Insulation
Insulation Accessories
