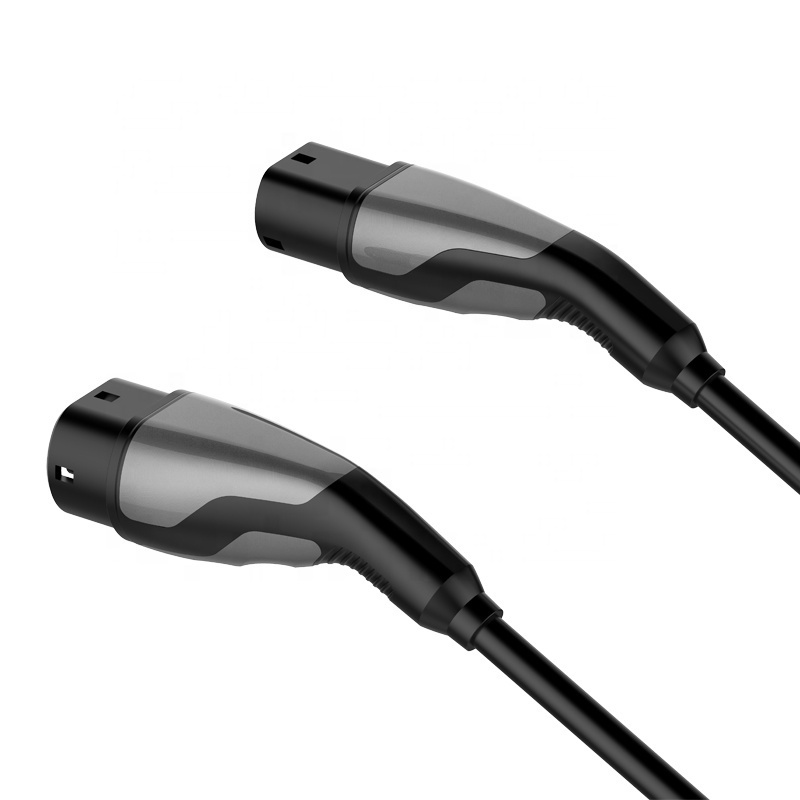

Quick Details
-
IP Grade:
-
IP 55
-
Cable Color:
-
Black&White
-
Cable Length:
-
5/7/10 Meters
-
Rated current:
-
16A 3Phase
-
Rated voltage:
-
480V
-
Power:
-
11KW
-
Cable Spec:
-
5*2.5mm²+2*0.5mm²
-
Operating temperature:
-
-35℃ to 50℃
-
Withstand Voltage:
-
2000V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
V3-16T
-
Brand Name:
-
Mammoth, Mammoth
-
IP Grade:
-
IP 55
-
Cable Color:
-
Black&White
-
Cable Length:
-
5/7/10 Meters
-
Rated current:
-
16A 3Phase
-
Rated voltage:
-
480V
-
Power:
-
11KW
-
Cable Spec:
-
5*2.5mm²+2*0.5mm²
-
Operating temperature:
-
-35℃ to 50℃
-
Withstand Voltage:
-
2000V
Product Description
Specification
|
Electrical Performance
|
|
|
|
Protection rank
|
IP55
|
|
|
Fire retardant level
|
94 V-0
|
|
|
Rated Current
|
16A / 32A
|
|
|
Rated voltage
|
250V / 480V~
|
|
|
Insulation resistance
|
> 100M ohm (DC 500V)
|
|
|
Terminal temperature rise
|
<50K
|
|
|
Withstand voltage
|
2000V
|
|
|
Contact resistance
|
0.5m ohm Max
|
|
|
Coupled insertion force
|
0.5m ohm Max
|
|
|
Coupled insertion force
|
>45N <80N
|
|
|
Operating temperature
|
-35℃ to 50℃
|
|
|
Mechanical life
|
no load plug in / pull out > 10000 times
|
|
|
Impact of external force
|
qualify 1m drop or 2 Ton vehicle run over
|
|
|
Connector
|
by copper alloy with nickel bottom plating and 3um silver surface plating
|
|
|
Shell
|
white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
|
|
|
Cable
|
black with TPU jacket. Other color optional by customizing
|
|
|
Features
|
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance |
|
|
Package
|
Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep |
|
|
Customizing
|
Logo put on shell by laser or flexible tooling; on Oxford cloth bag by printing
|
|
|
Certificate
|
CE, UKCA, ROHS, ISO
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
Each in a PE bag, then in a Pizza box, then 5 Pizza boxes into 1 master carton
Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
