Quick Details
-
Brand Name:
-
Cosuper
-
Model Number:
-
CMPJ--12V/24V/36V/48V Auto 50A/60A
-
Work Time (h):
-
Always
-
Max PV Power:
-
3120W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2years
-
Controller properties:
-
MPPT (Maximum power point tracking)
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cosuper
-
Model Number:
-
CMPJ--12V/24V/36V/48V Auto 50A/60A
-
Work Time (h):
-
Always
-
Max PV Power:
-
3120W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2years
-
Controller properties:
-
MPPT (Maximum power point tracking)

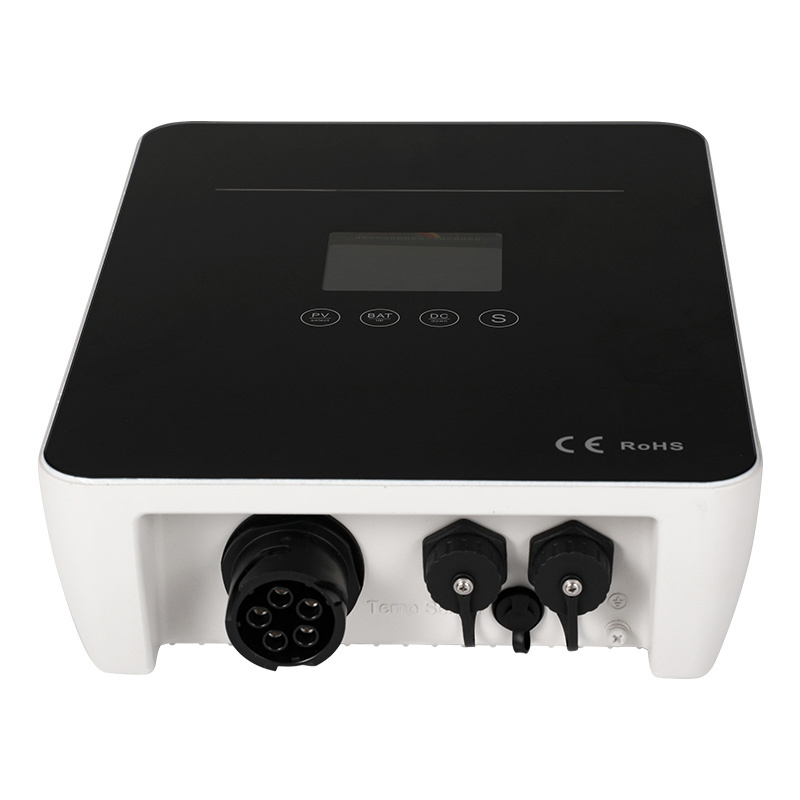

CMPJ Series MPPT Solar Smart Digital Controller
Product model
:
CMPJ——12V/24V/36V/48V Auto 50A/60A
CMPJ develops solar field vision, making nature more beautiful and more efficient
A new generation of MPPT solar intelligent digital controller
Introduction:
1, self-heating, waterproof rating IP65
2, beautiful design, touch buttons, internal and external repair
3, four-stage charging to extend battery life
4, tracking efficiency as high as 99.8%
5, perfect protection function
6, can expand APP, host computer, and unlimited parallel
7, can monitor the entire system status, determine system matching, etc.
Tech parameter:
|
CMPJ Series |
CMPJ-50A |
CMPJ-60A |
|||
|
Product
|
Controller properties |
MPPT (Maximum power point tracking) |
|||
|
MPPT efficiency |
≥99.5% |
||||
|
Standby power |
0.5W~1.2W |
||||
|
System voltage |
12V/24V/36V/48V auto work |
||||
|
Heat-Dissipating method |
Natural -cooling |
||||
|
Input
|
Max.PV input voltage(Voc) |
DC150V |
|||
|
Start charge voltage point |
Battery voltage + 3V |
||||
|
Low input voltage protection point |
Battery voltage + 2V |
||||
|
PV rated power |
12V system |
650W |
780W |
||
|
24V system |
1300W |
1560W |
|||
|
36V system |
1950W |
2340W |
|||
|
48V system |
2600W |
3120W |
|||
|
Charge
|
Battery types (Default Gel battery) |
Gel battery, Sealed lead-acid battery, Flooded battery, User-defined |
|||
|
Charge rated current |
50A |
60A |
|||
|
Charge method |
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge) |
||||
|
LOAD
|
Load voltage |
Same as battery voltage |
|||
|
Load rated current |
30A |
||||
|
Load control mode |
On, Off , PV voltage control, Dual-time control, PV + Time control |
||||
|
Low voltage protection |
The default protection point is 10.5V, and it is restored to 11V (can be set) |
||||
|
Setup method |
PC software /Mobile APP/ controller display |
||||
|
Display &
|
Display |
High-definition LCD segment code backlight display |
|||
|
Dry contact access voltage |
5V ~ 12V |
||||
|
Communication |
Dual RJ45 port/RS485/support PC software monitoring/
|
||||
|
Other
|
Protections |
Input over/low voltage, output over/low voltage, reverse connection,over temperature, short circuit, battery shedding etc. |
|||
|
Operating ambient temperature |
-20 ℃ ~+50 ℃ |
||||
|
Storage temperature |
-40 ℃ ~+75 ℃ |
||||
|
IP(Ingress protection) |
IP65 |
||||
|
Max. Battery wire (mm2/AWG) |
28mm2 |
||||
|
Max. Load wire (mm2/AWG) |
28mm2 |
||||
|
Recommended breaker |
≥100A |
||||
|
Net weight (KG)/Gross weight (KG) |
4.15 / 5.5 |
||||
|
Product size (mm)/Packing size (mm) |
290×220×88 / 410×328×193 |
||||
Remarks:
1. The above is the standard parameters of the company. If there are any changes, please contact with us.
2. Our company can customize non-conventional MPPT controllers for customers and provide OEM and ODM services;
