Quick Details
-
Voltage:
-
220V 50HZ
-
Power:
-
950 W
-
Dimension(L*W*H):
-
W600*D460*H(720+450) mm
-
Weight (KG):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
No-load Temperature:
-
<-56 ℃
-
Plate Load Capacity:
-
1.5 L
-
Freeze Area:
-
0.12 ㎡
-
Ability to Capture Water:
-
4 kg
-
Interlayer Spacing:
-
70 mm
-
Sample Tray Size:
-
4*200 mm
-
Vacuum Degree:
-
<10 pa
-
Machine Dimension:
-
W600*D460*H(720+450) mm
-
Cold Trap Size:
-
215*216mm
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZKD
-
Voltage:
-
220V 50HZ
-
Power:
-
950 W
-
Dimension(L*W*H):
-
W600*D460*H(720+450) mm
-
Weight (KG):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
No-load Temperature:
-
<-56 ℃
-
Plate Load Capacity:
-
1.5 L
-
Freeze Area:
-
0.12 ㎡
-
Ability to Capture Water:
-
4 kg
-
Interlayer Spacing:
-
70 mm
-
Sample Tray Size:
-
4*200 mm
-
Vacuum Degree:
-
<10 pa
-
Machine Dimension:
-
W600*D460*H(720+450) mm
-
Cold Trap Size:
-
215*216mm

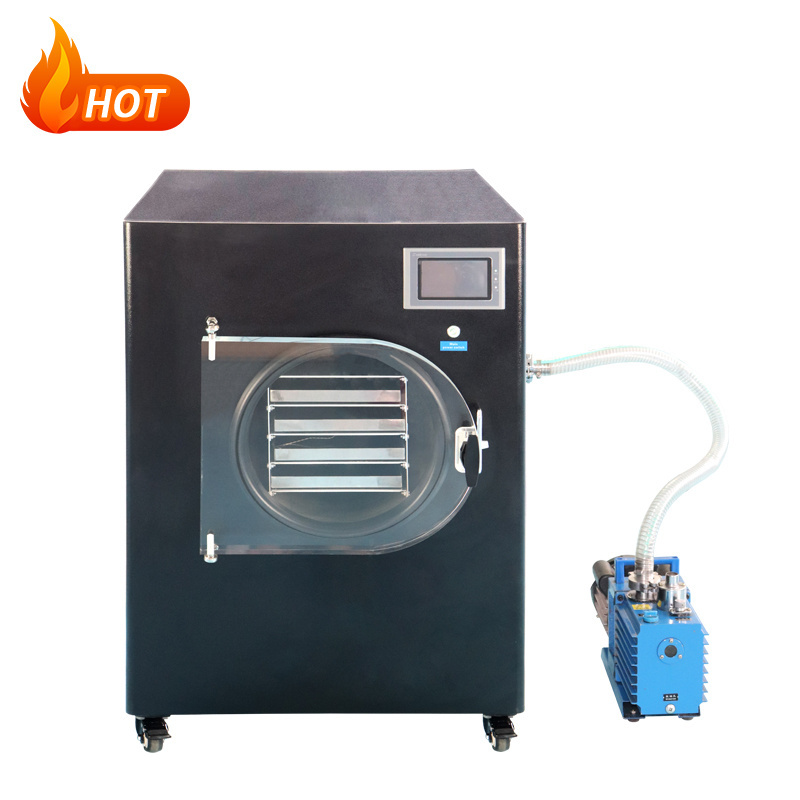

Laboratory Vacuum Small Freeze Dryer/Lyophilizer Price
Description of freeze dryer cost:
Lab equipment freeze dryer
is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, after
adding water can be recovered to form and maintain the original form of biochemical characteristics
. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.
freeze dryer i
s divided into four kinds:
normal type
,
gland type
,
manifold type
,
manifold pressure cap type
, with the function of precool.
|
Model |
H FD- 1 |
H FD- 4 |
|
Drying area (m 2 ) |
0.1 |
0.4 |
|
Tray size (mm) |
145*275 |
200*425 |
|
Tray numbers |
3 |
4 |
|
Capacity (kg) |
2-3 |
4 |
|
Shelf size (mm) |
150*280 |
210*430 |
|
Rated power (kW) |
1 |
1.55 |
|
Voltage (V) |
220-240V 50-60Hz |
|
|
Condenser temperature ( °C ) |
≤ - 35 |
|
|
Vacuum (Pa) |
< 15 |
|
|
Machine size (mm) |
600*700*780 |
6 15 *7 5 0*900 |
|
Weight (kg) |
72 |
/ |
