Quick Details
-
Brand Name:
-
HengChang
-
Dimension(L*W*H):
-
1410mmX1310mmX1386mm
-
Weight:
-
2572 KG
-
Max feeding size:
-
200mm
-
Capacity:
-
5-20 ton/hour
-
Output size:
-
20-80 mm
-
Motor:
-
15 kw
-
Size:
-
1410mmX1310mmX1386mm
-
Price:
-
Negotiation
-
MOQ:
-
1Set
-
Keyword:
-
Jaw Crusher Crusher Jaw,Stone crushing plant
-
Quality:
-
Superior
-
Main Products:
-
Trommel screen,Jaw crusher,Ball Mill,Gold Concentrator,Shaking Table
-
Certification:
-
ISO, SGS, CE
Quick Details
-
Application:
-
building material and mining industry
-
Capacity(t/h):
-
5-20 ton/hour
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
HengChang
-
Dimension(L*W*H):
-
1410mmX1310mmX1386mm
-
Weight:
-
2572 KG
-
Max feeding size:
-
200mm
-
Capacity:
-
5-20 ton/hour
-
Output size:
-
20-80 mm
-
Motor:
-
15 kw
-
Size:
-
1410mmX1310mmX1386mm
-
Price:
-
Negotiation
-
MOQ:
-
1Set
-
Keyword:
-
Jaw Crusher Crusher Jaw,Stone crushing plant
-
Quality:
-
Superior
-
Main Products:
-
Trommel screen,Jaw crusher,Ball Mill,Gold Concentrator,Shaking Table
-
Certification:
-
ISO, SGS, CE

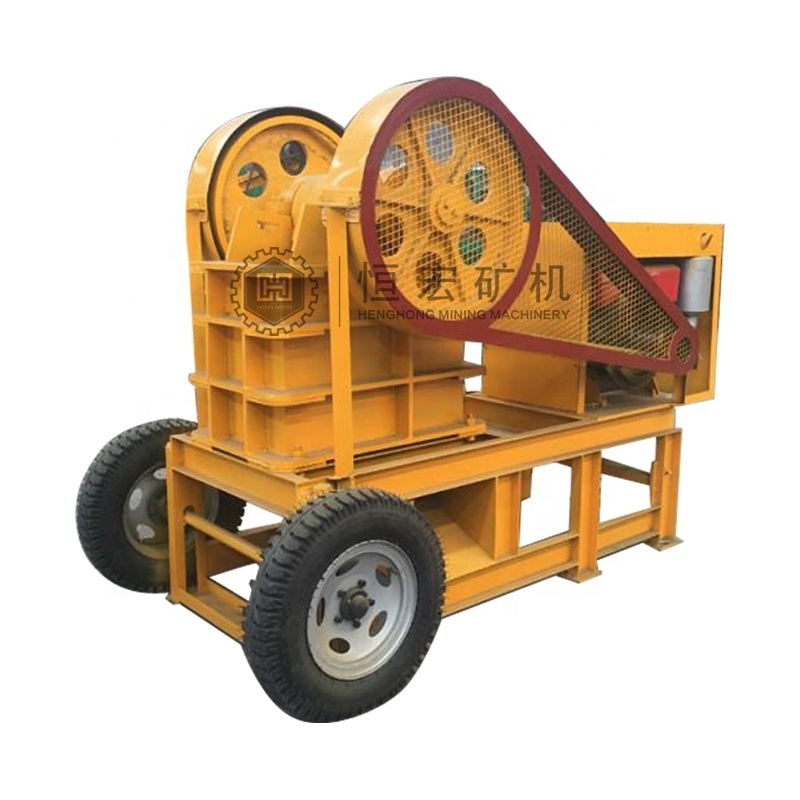

1.Jaw Crusher ,Stone Crusher Machine Introduction:
Jaw crusher are ideal for primary and secondary crushing processing. With the increase of production, our hengchang jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment,Positive setting adjustment is
easy.
2.Main Characteristics of Jaw Crusher PE250*400, PE150x250 , PE400x600 :
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
Jaw crusher are ideal for primary and secondary crushing processing. With the increase of production, our hengchang jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment,Positive setting adjustment is
easy.
2.Main Characteristics of Jaw Crusher PE250*400, PE150x250 , PE400x600 :
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
3.Jaw Crusher Applications:
Hengchang Brand PE Series Jaw Crusher is widely used for crushing of stone, rock , Cement processing plant glass, metal, ore etc., such as limestone, granite, dolomite, marble stone, etc. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Gold mining Rock Crusher is for first crushing.
Hengchang Brand PE Series Jaw Crusher is widely used for crushing of stone, rock , Cement processing plant glass, metal, ore etc., such as limestone, granite, dolomite, marble stone, etc. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Gold mining Rock Crusher is for first crushing.
4.Jaw Crusher Working Principle:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
5.Technical parameter of Jaw Crusher:
|
Model
|
Inlet Dimension
(mm) |
Max Feed Size
(mm) |
Capacity
(t/h) |
Output Size
(mm) |
Power
(kw) |
Overall Dimension
(mm) |
Weight
(kg) |
|
PE150×250
|
150×250
|
125
|
1-3
|
10-40
|
5.5
|
875×745×935
|
1160
|
|
PE200×300
|
200×300
|
180
|
2-6
|
15-50
|
7.5
|
910×750×990
|
1240
|
|
PE200×350
|
200×350
|
180
|
3-10
|
18-60
|
11
|
1000×870×990
|
1520
|
|
PE250×400
|
250×400
|
210
|
5-20
|
20-80
|
15
|
1410×1310×1386
|
2572
|
|
PE400×600
|
400×600
|
340
|
14-36
|
40-100
|
37
|
1700×1732×1658
|
5800
|
|
PE500×750
|
500×750
|
425
|
30-80
|
50-120
|
45
|
1990×1876×1821
|
9000
|
|
PE600×900
|
600×900
|
500
|
56-192
|
75-200
|
75
|
2792×3828×2529
|
18900
|
|
PE750×1600
|
750×1600
|
630
|
110-320
|
80-235
|
110
|
2660×2430×2800
|
29300
|
|
PE900×1200
|
900×1200
|
750
|
180-350
|
100-250
|
110
|
5000×4471×3280
|
55000
|
|
PE1200×1500
|
1200×1500
|
1020
|
400-800
|
150-350
|
160
|
4200×3300×3500
|
101000
|
6.Related Products:
7.Package & Delivery:
8.Sucessful Case:
9.About Our Factory:
10.FAQ:
Q:1.What is your machine used for ?
A: Our Jaw Crusher is used for crushing the materials such as Stone, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
Q:2.Can I operate it well, if I have no experience?
A: Do not worry! It is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:3.Are you factory or trade company?
A: we are manufacturer and exporter,so we can give you original factory sale price than those trade companies
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Warmly Welcome Visiting our factory and Send us Inquiry if any questions you have ^_* !
Q:1.What is your machine used for ?
A: Our Jaw Crusher is used for crushing the materials such as Stone, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
Q:2.Can I operate it well, if I have no experience?
A: Do not worry! It is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:3.Are you factory or trade company?
A: we are manufacturer and exporter,so we can give you original factory sale price than those trade companies
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Warmly Welcome Visiting our factory and Send us Inquiry if any questions you have ^_* !
