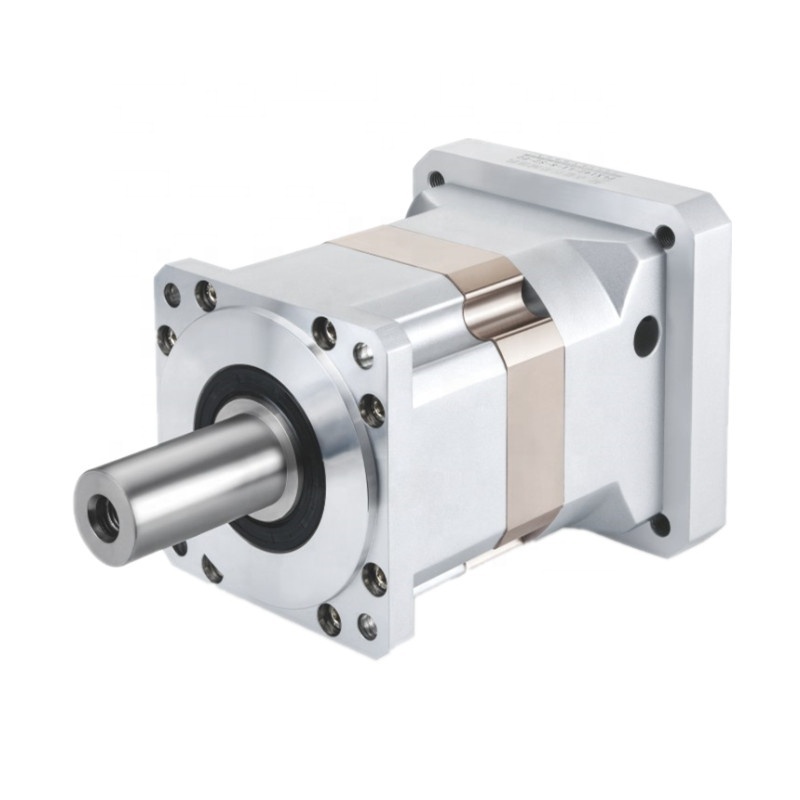

High Precision High Torque Low Backlash 2 Variable Speed Robot Gearbox

High Precision High Torque Low Backlash 2 Variable Speed Robot Gearbox

FOB Reference Price: Get Latest Price

≥10 Pieces

US $398

≥100 Pieces

US $308

≥1000 Pieces

US $218

≥10000 Pieces

US $108

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 3.9~667 rpm

Warranty:: 1 years

Weight (KG):: 0.7 KG

Place of Origin:: Guangdong, China

Brand Name:: SHENLI

Product name:: Gearbox

Application:: Robotic Industry

Type:: Reduction Motor

Ratio:: 3-512

Mounting Position:: Horizontal (foot Mounted)

Material:: Cast Iron

Input Form:: Shaft Input

Structures:: Bearing + Gear + Box

Heat treatment:: Quenching

Output Form:: Solid Output Shaft

Quick Details

Gearing Arrangement:: Spur

Output Torque:: 7~15.5N.M

Input Speed:: 3000 rpm

Output Speed:: 3.9~667 rpm

Warranty:: 1 years

Weight (KG):: 0.7 KG

Place of Origin:: Guangdong, China

Brand Name:: SHENLI

Product name:: Gearbox

Application:: Robotic Industry

Type:: Reduction Motor

Ratio:: 3-512

Mounting Position:: Horizontal (foot Mounted)

Material:: Cast Iron

Input Form:: Shaft Input

Structures:: Bearing + Gear + Box

Heat treatment:: Quenching

Output Form:: Solid Output Shaft

Our Advantages

Products Overview

Feature at a glace

PLX42 Series Straight Gearbox Feature

◆ High output torque

◆ High precision, fine grinding gear

◆ Low noise, small gap bearing
◆ High rigidity, planet swivel

◆ High input speed

◆ Low Backlash

◆ High torque
◆ High efficiency
◆ High stability

Details Images

High precision, fine grinding gear

Hardened fine grinding gear, precision up to level 6, with high strength/hardness/wear resistance characteristics.

Low noise, small gap bearing

Chose the small gap bearing and the bearing cover is specially damped, use imported lubrication reduces machine operation noise.

High rigidity, planet swivel

High rigidity , Strong impact resistance , Improved torque rigidity and accuracy

Double opening, double screw barrel

Ensure dynamic balance joint surface concentricity and zero gap power transmission under high rotation speed. Inside add skeleton oil seal to prevent oil leakage when the reducer is running at high speed.

Durability, alloy steel housing

Whole body adopts high quality imported alloy steel, high hardness, increase wear resistance and durability and fast heat dissipation.

Products Description

Shenli Motor's planetary reducer series products are all made of international standard steel, carburized, quenched and ground with 20CvMnT. They are small in size, light in weight, high in transmission efficiency, wide in deceleration range, high in precision, low in noise, large in output torque and long in life. It is widely used in servo, stepping, brushless and other transmission systems, with product specifications ranging from 16mm to 130mm. On the premise of ensuring precision transmission, it is perfectly used in applications where the rotational speed is reduced, the torque is increased, and the load/motor inertia moment ratio is reduced.

Shenli products have been widely used in engraving machines, laser machines, CNC machine tools, textile and garment machinery,medical equipment, measuring equipment, electronic processing equipment, packaging machinery and other equipment that need to reduce the speed to increase torque and reduce the load/motor inertia ratio. automation equipment and instruments.

PLX42 Series Straight Gearbox Eneral Specifations

No	Item	Data	No	Item	Data
1	Type	PLX42	11	Rate input speed	3000rpm
2	Body Length	88~110.4mm	12	Max.input speed	6000rpm
3	Ratio	3~512	13	Max.radial force	185N
4	Ratio Output Torque	7~15.5Nm	14	Max.axial force	150N
5	Max. Output Torque	14~31Nm	15	Backlash	3~7Arcmin
6	Efficiency	95%~97%	16	Installation ways	any
7	Life Expectancy	20000H	17	Work temperature	-10℃~+80℃
8	Lubricating method	Synthetic grease	18	Moment of inertia	0.016~0.029
9	Weight	0.5~0.7KG	19	Stage	1~3
10	IP Grade	IP65	20	Noise	60~70dB(60dB)
