Quick Details
Quick Details
-
Place of Origin:
-
China

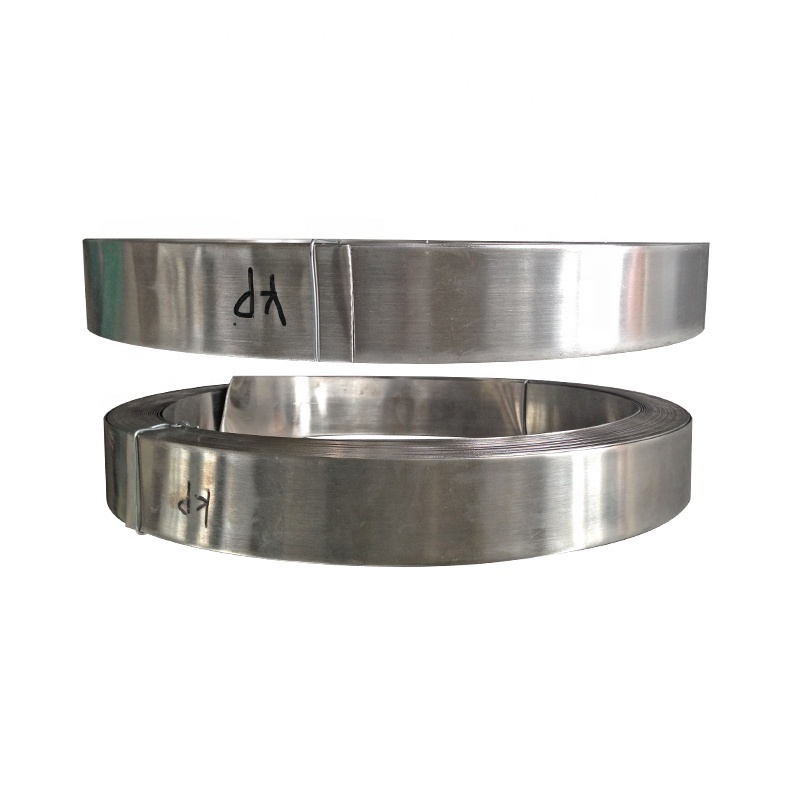

Fe-based Amorphous steel (1k101)
Model: FeSiB equal to American model 2605-S2, and other models may be orderd.
It has a series of advantages of high saturated magnetic induction density, high permeability, low coercive force and low iron loss, low exciting current, excellent temperature stability and cheap price etc.
Application Fields:
1. Distribution transformer core
2. C type inductor, transformer core
3 Toroidal filter inductor, PFC inductor core
4. Mid-frequency transformer core
Performance Characteristics:
|
Saturate induction Bs(T) |
1.56 |
Saturate magnetostriction ls |
27×10-6 |
|
Curie temperature Tc (°C) |
399 |
Density (g/cm 3 )
|
7.18 |
|
Crystallization temperature Tx (°C) |
508 |
Resistivity(mW-cm)
|
130 |
|
Hardness Hv(kg/mm 2 )
|
960 |
|
|
Specification
|
Part No. |
Width(mm) |
Thickness(0.001mm) |
Processing status |
|
RB101003028A |
3 |
28 |
Slit ribbon |
|
RB101003528A |
3.5 |
28 |
Slit ribbon |
|
RB101004528A |
4.5 |
28 |
Slit ribbon |
|
RB101005028A |
5 |
28 |
Slit ribbon |
|
RB101006028A |
6 |
28 |
Slit ribbon |
|
RB101006528A |
6.5 |
28 |
Slit ribbon |
|
RB101008028A |
8 |
28 |
Slit ribbon |
|
RB101010028A |
10 |
28 |
Slit ribbon |
|
RB101015028A |
15 |
28 |
Slit ribbon |
|
RB101020028A |
20 |
28 |
Slit ribbon |
|
RB101025028A |
25 |
28 |
Slit ribbon |
|
RB101030028A |
30 |
28 |
Slit ribbon |
|
RB101035028A |
35 |
28 |
Slit ribbon |
|
RB101040028A |
40 |
28 |
Slit ribbon |
|
RB101045028A |
45 |
28 |
Slit ribbon |
|
RB101050028A |
50 |
28 |
Slit ribbon |
|
RB101055028A |
55 |
28 |
Slit ribbon |
|
RB101060028A |
60 |
28 |
Slit ribbon |
|
RB101065028A |
65 |
28 |
Slit ribbon |
|
RB101070028A |
70 |
28 |
Slit ribbon |
|
RB101080028A |
80 |
28 |
Slit ribbon |
Note: 1 Ribbon width 28±2μm
2 Cores with other specifications are available concerning customer’s demand.
